XINRUI WSB-1 Whiteness Meter R457 Blu-ray whiteness, opacity

XINRUI WSB-1 Whiteness Meter whiteness indicates: R457 blue light whiteness, opacity, using 45/0 illumination conditions, Measurement range 0~199, LCD liquid crystal display.
Model:

XinRui WSB-1 Whiteness meterSPEC

XinRui WSB-1 Whiteness meterDetails

XinRui WSB-1 Whiteness meterPacking list

SKU
NB015076
Measurement range
0~199
Zero drift
≤±0.1
Error of indication
≤±1
Repeatability
≤0.2
Dimensions
235*75*65mm
Power Supply
DC 1.5V × 5 AA alkaline dry batteries, AC 220V/50Hz/DC7.5V/0.2A power adapter
Whiteness formula
R457 Blu-ray whiteness, opacity
test condition
45/0
Resolution
0.1
WSB-1
Whiteness meter

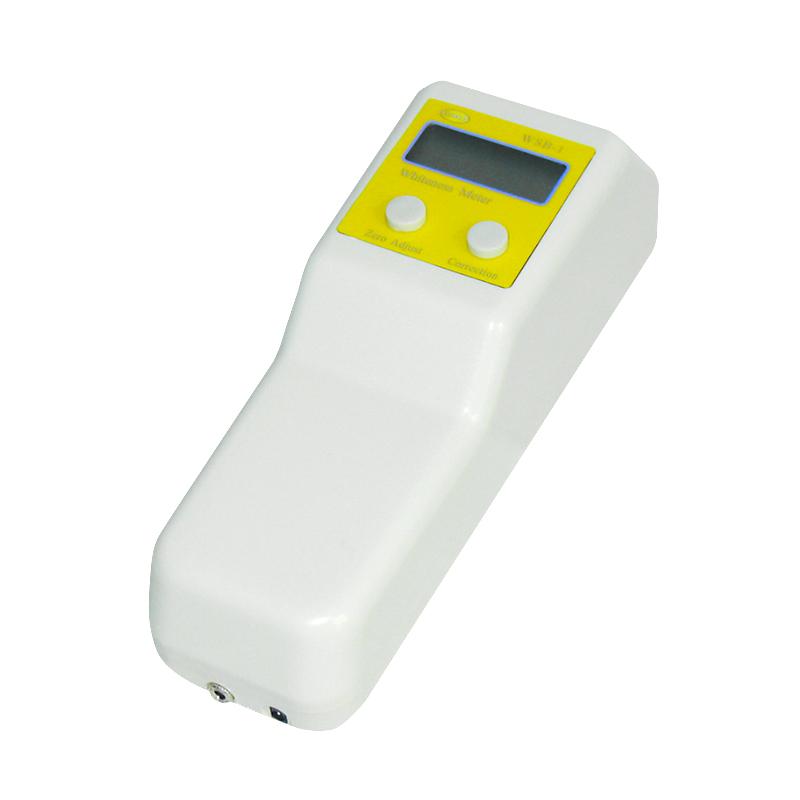

XINRUI WSB-1 Whiteness Meter R457 Blu-ray whiteness, opacity Picture

Small and beautiful appearance, light weight, AC and DC power supply, handheld use

LCD display, low-power configuration, low-Voltage prompt, automatic shutdown function

Special effective long-life light source, 100,000 hours of maintenance-free use

The measurement data is stable, the repeatability is good, and the error is small

It can work normally after 30 seconds of warm-up, and it is equipped with a data output interface

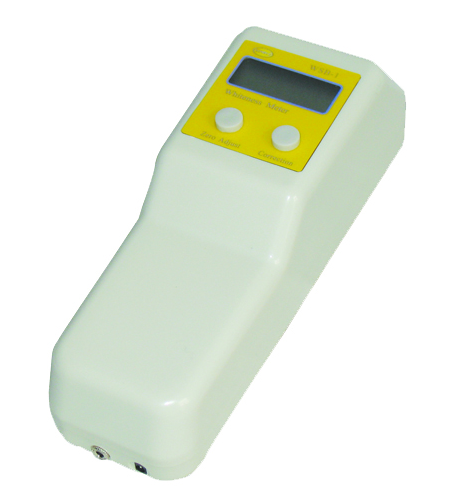

WSB-1 Whiteness Meter

Overview of uses

It is mainly suitable for whiteness measurement of objects or powders with flat non-colored surfaces, and can accurately obtain whiteness values that are consistent with visual sensitivity. The opacity of the paper can be measured accurately. It can be widely used in textile printing and dyeing, paint and coating, chemical building materials, paper and cardboard, plastic products, white cement, ceramics, enamel, talcum powder, starch, flour, salt, detergent, cosmetics and other substances of whiteness measurement.
