JingKeLian QHD Pendulum damping Tester Specifications

Search

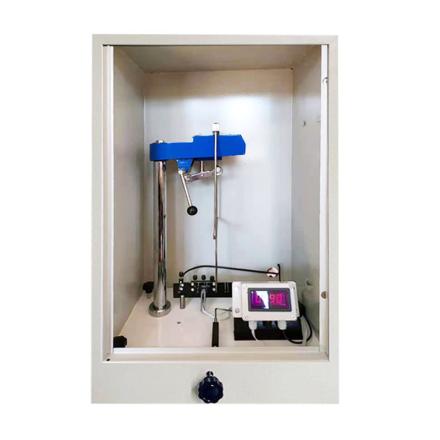

JINGKELIAN QHD pendulum damping Tester with Konig pendulum as standard

Brand:JingKeLian

Model:QHD

Name:Pendulum damping Tester

DetailsContact
Specifications
Swing bar type Konig pendulum
Konig swing Mass 200±0.2g
Konig swing period 1.4±0.02s
Konig Glass Swing Time 250±10s
Number of swings on Konig Glass 178±7
Konig start and finish swing angle 6°/3°
Persoz swing Mass 500G (P pendulum needs to be customized, not standard)
Persoz swing cycle 1 +/- 0.001S (P pendulum needs to be customized, not standard)
Persoz Glass Swing Time ≥420s
Persoz Glass Swing Count 420
Persoz start and end swing angle 12°/4°
application standard ISO1522、ZBN72020-86
Packing list
host x1, starting handle x1, ruler x1, horizontal adjustment foot x1, Timer x1, photoelectric signal line x1, K pendulum x1, instrument cover x1, pallet control handle x1, shutter line x1, photoelectric tube frame x1
After-sales instructions

Warranty days: 365 days

【Attention】

The purchase of this product is calculated from the date of the purchase contract, and the warranty period is 1 year, and the freight is borne by the customer during the warranty period.

Damage caused by improper use is not covered by the warranty.
