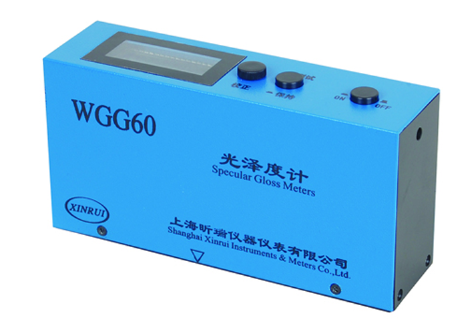

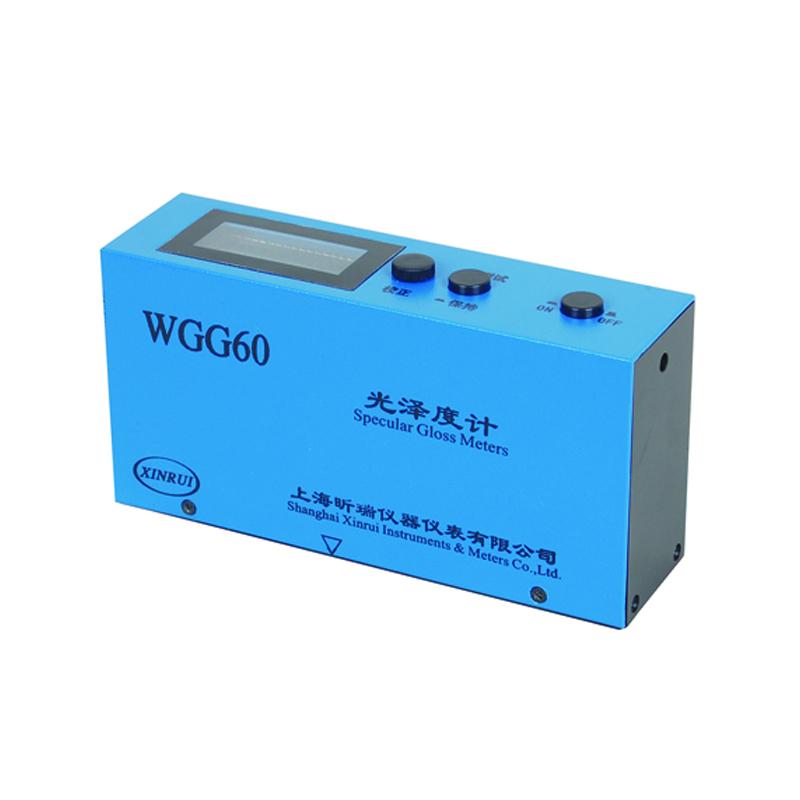

XINRUI WGG60 gloss meter 0~199.9GU/60 °
XINRUI WGG60 gloss meter is a 60 degree Gloss Meter with low power consumption and high accuracy. WGG60 gloss meter is used in water-based paint, automotive coatings, furniture, plastics, paper, enamel, ceramics, Stone veneers, aluminum alloys and metals and other flat products. Mirror gloss measurement.
Model：
WGG60
Similar products
-
KSJ WGG60-Y4 high-precision Glossiness Meter, special for thin film industry, built-in lithium battery -
QILI MN60 Portable Glossmeter Universal, Single Angle Glossiness Meter$ 350.00SE -
KSJ MG6-F1 Coating glossiness instrument, dedicated to the thin film industry, self-calibrating with Bluetooth -
Curved small hole Glossmeter JFL-B60S (curved small hole 1.5 * 3mm ordinary type)$ 441.00SE -
KSJ MG6-FS microporous Glossmeter self-calibrated with Bluetooth
XinRui WGG60 Gloss meterSPEC
XinRui WGG60 Gloss meterDetails
XinRui WGG60 Gloss meterPacking list
- SKU
- NB015085
- Measurement angle
- 60°
- Measurement range
- 0~199.9GU
- Error of indication
- ±1.5GU
- Graduation
- 0.1GU
- Zero Error
- 0.5GU
- Standards
- ISO2813, ASTMD1455 and GB9754, GB8807
- Stability
- 0.5GU
WGG60
Gloss meter
Features
It has the advantages of low power consumption, accurate measurement, good stability, convenient operation, and no need to adjust to zero
It adopts portable, password box, and the measurement angle can be divided into single angle, double angle and three angles
Streamlined design, simple operation and high cost performance, optional measurement angle
Application Overview
WGG series gloss meter is carefully designed and manufactured according to ISO2813, ASTMD1455 and GB9754, GB8807 and other standards, which can be widely used in the mirror gloss measurement of paints, coatings, plastics, paper, enamel, ceramics, stone finishes, aluminum alloys and metals and other flat products.
FAQ
QWe produce enamel products, enamel gloss can be measured?
A
Hello, Xinrui's gloss instrument can be used in the Gloss test of enamel.
QIs there an ASTMD3928 standard gloss meter?
A
This XINRUI gloss meter is ok!
QCan Xinrui WGG60A gloss meter test Resin's gloss?
A
Hello, yes, this model is a 60-degree Gloss meter with a measurement range of 0~ 1999Gs. It can be tested in this range.
