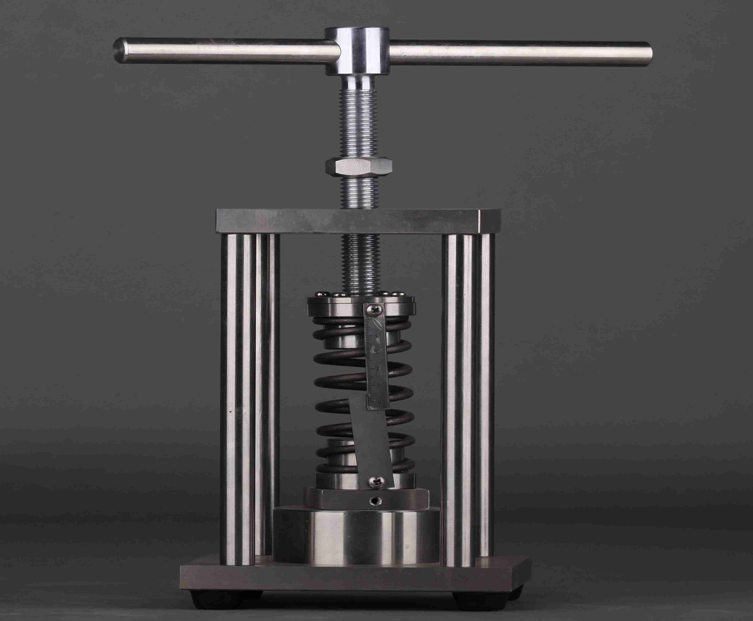

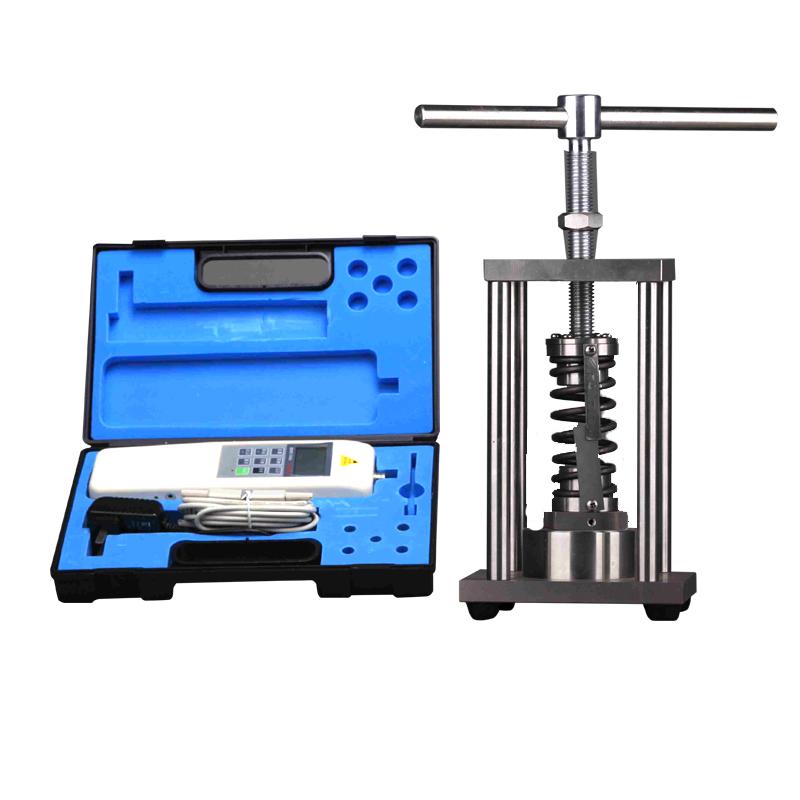

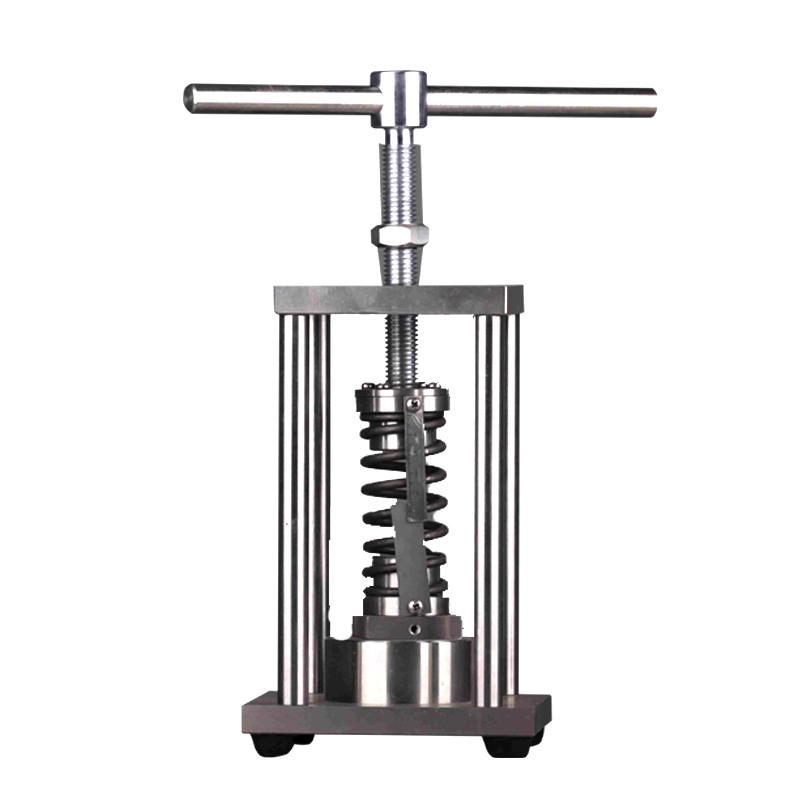

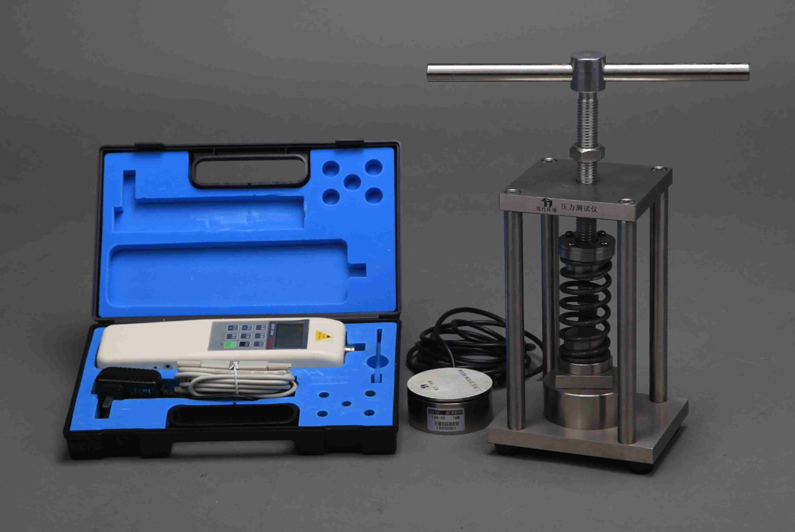

MODERNER VPT-80 stress testing machine inks Coating pressure tack test
SEUsed for non-tack testing under pressure contact conditions of inks and coatings, the base diameter is 78mm, the square indenter is 50 × 50mm, the round indenter is 10cm ², and the pressure range is 20N~ 800N.
Price: Please contact customer service
Model：
VPT-80
Moderner VPT-80 Stress testing instrumentSPEC
Moderner VPT-80 Stress testing instrumentDetails
Moderner VPT-80 Stress testing instrumentPacking list
- SKU
- NB015109
- Base diameter
- 78mm
- Square indenter
- 50×50mm
- Round indenter
- 10cm²
- Pressure range
- 20N~800N
- Charging Power
- 220V 50Hz
- Overall Dimensions
- 150×120×400mm
VPT-80
Stress testing instrument
Used for non-tack testing under pressure contact conditions of inks and coatings, the base diameter is 78mm, the square indenter is 50 × 50mm, the round indenter is 10cm ², and the pressure range is 20N~ 800N.
overview
1. This product is mainly used in the non-stick test of ink and paint under pressure contact conditions.

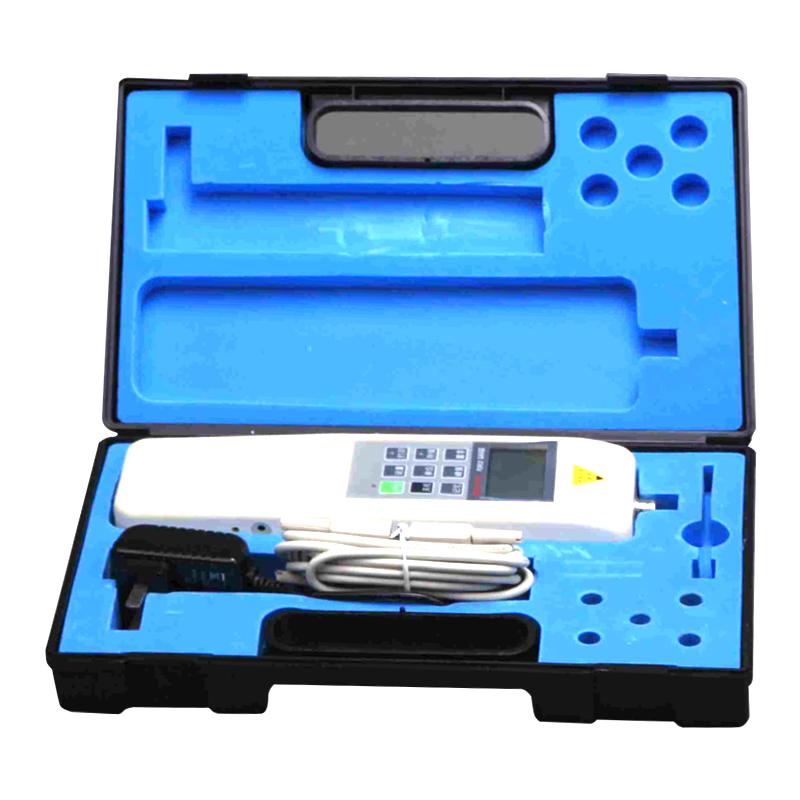

2. The product developed this time adds a digital display function. The digital display base can be used not only to accurately control the pressure during the pressure test, but also to calibrate the scale position of the required test pressure before the high-low temperature test. The additional base is used for high-low temperature tests, and the pressure is determined by the position of the scale. The digital display unit N and kg can be switched.
3. Accurate pressurization, portable structure and simple operation. It can also be used for accurate pressure during curing of adhesive test pieces.
Outline structure diagram
FAQ
QI want to measure the ink tack, what instrument should I use?
A
MODERNER VPT-80 stress testing instrument is recommended. It is specially designed for non-tack testing of inks and coatings, which can precisely control pressure and ensure reliable test results.
QCan this instrument be used for curing and pressurizing glued joints?
A
Yes, VPT-80 pressure is accurate and portable, especially suitable for pressure control during curing of adhesive specimens, so as to avoid uneven pressure affecting the curing effect.
QHow to ensure accurate pressure during high and low temperature testing?
A
It has a digital display base, which can calibrate the pressure scale first, and press the scale directly during high and low temperature testing. The unit can also switch between N and kg, which is particularly convenient.
