JINGKELIAN QTX Film resilience tester, determination of film flexibility

A paint film resilience tester for measuring the flexibility of the paint film. The QTX paint film resilience tester has 7 shafts of different diameters. The QTX paint film resilience tester conforms to the GB1731 standard.

$69.13/set

PromotionLoading...

Coupon

Model：

Certificate

JingKeLian

Manufacturer authorization

Contact

Details SPEC Con VIDEO OI

JingKeLian QTX Paint film resilience testerSPEC

JingKeLian QTX Paint film resilience testerDetails

JingKeLian QTX Paint film resilience testerPacking list

SKU: NB001511

Shaft length: 50mm

Test iron plate size: Thickness 0.2~ 0.3 mm, size 20 * 100~ 150 mm

Magnifying glass: Quadruple magnifying glass

Use environment: At 22 +/- 1 ℃, the relative temperature should not exceed 70%

Shaft rod 1: Φ15mm

Shaft rod 2: Φ10mm

Shaft rod 3: Φ5mm

Shaft rod 4: Φ4mm

Shaft rod 5: 3 * 10Mm, radius of curvature 1.5mm

Shaft rod 6: 2 * 10Mm, radius of curvature 1mm

Shaft rod 7: 1 * 10Mm, radius of curvature 0.5mm

QTX

Paint film resilience tester

JINGKELIAN QTX Film resilience tester, determination of film flexibility Picture

Overview of QTX Paint Film Elasticity Tester

JinKeLian QTX paint film elasticity tester is a special paint film elasticity tester designed according to the national standard GB1731-79 for the measurement of paint film flexibility. There are seven steel shaft rods with different diameters on the QTX paint film elasticity tester . The operating environment of the QTX Paint Film Elasticity Tester is 22±1°C ambient temperature and the relative temperature is not more than 70%.

Structural diagram of QTX paint film elasticity tester

Structural diagram of JinKeLian QTX paint film elasticity tester

1. R=7.5m/m steel rod; 2. R=5m/m steel rod; 3. R=2.5m/m steel rod; 4. R=2m/m steel rod

5. R=1.5m/m steel rod; 6. R=1m/m steel rod; 7. R=0.5m/m steel rod

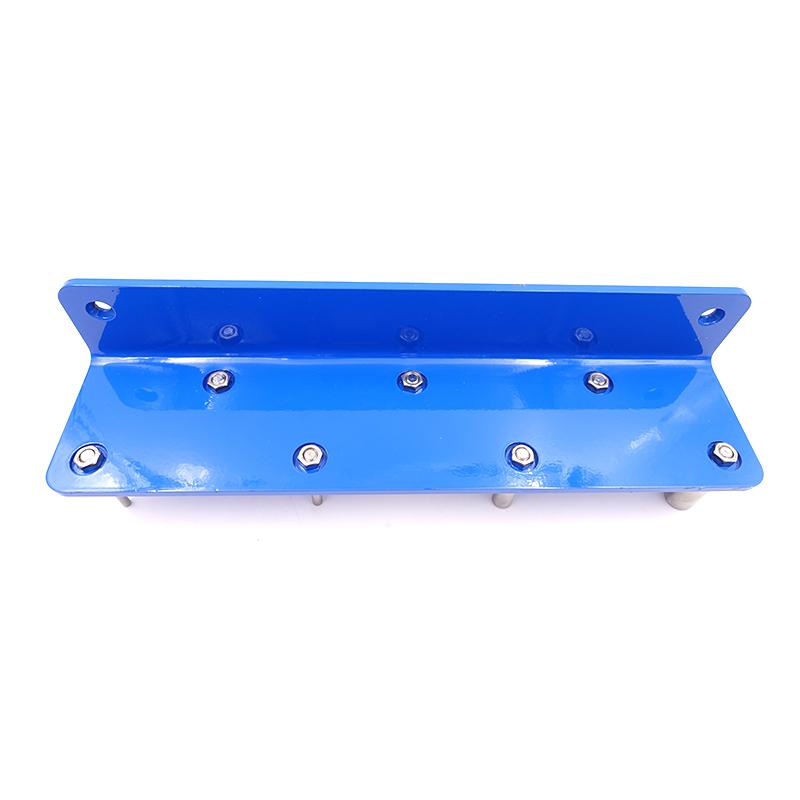

QTX paint film elasticity tester display

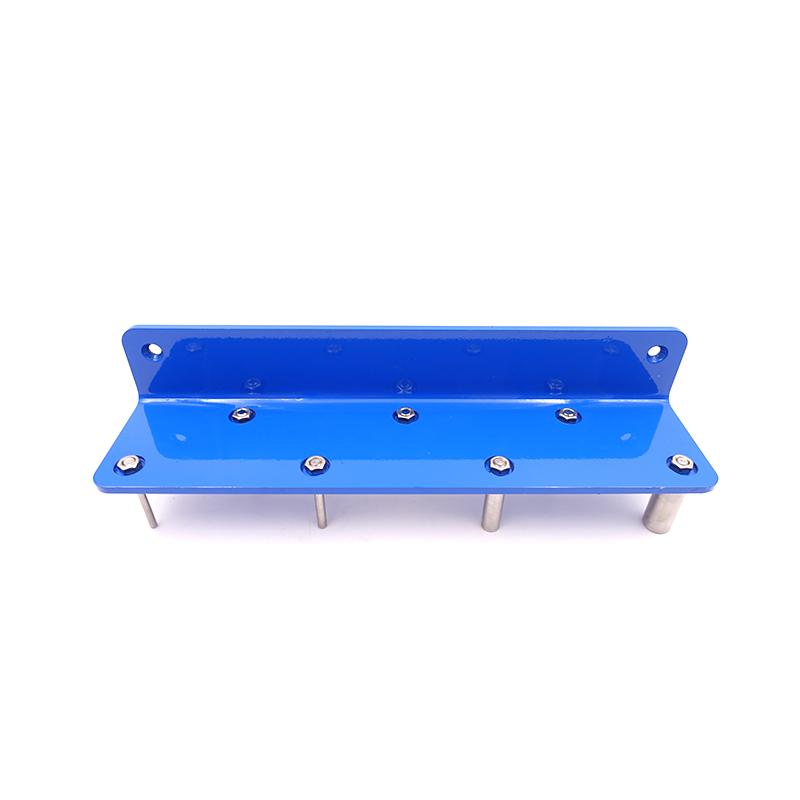

JinKeLian QTX Paint Film Elasticity Tester Appearance

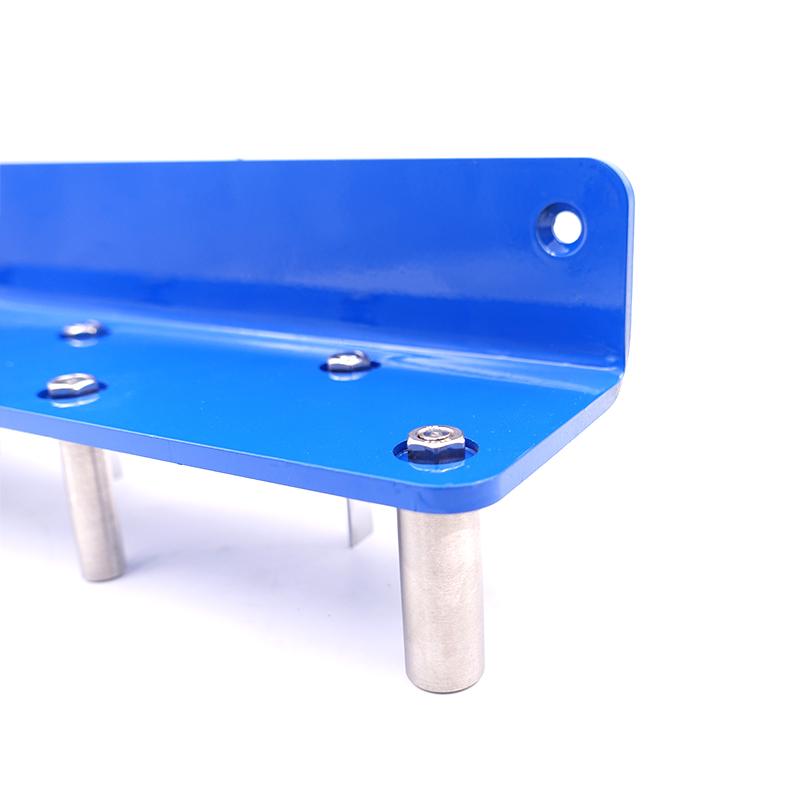

Details of JinKeLian QTX Paint Film Elasticity Tester

FAQ

QThe curvature of the lithium battery pole piece is smaller and the diameter is 5mm. Can the Flexibility tester measure it?

A It can be tested, and the QTY-10A cylindrical mandrel bending tester can also be tested.

QIs this the film resilience tester mentioned in GB/T 1731?

A OK

QHow is the film resilience tester tested?

A Hello, you can click "Operation Instructions" in the form in our Encasement list column to see the detailed operation introduction of this QTX film resilience tester.
