JINGKELIAN QGZ-24 Film Drying Time Recorder Coating drying time

QGZ-24

Automatic Drying Time Recorder

Overview of QGZ-24 Paint Film Drying Time Tester

JinKeLian QGZ-24 paint film drying time meter is a new paint that automatically and continuously displays the status of each stage of the drying process by tracing a circular trajectory on the film formed by the paint, and can visually analyze and observe the time required for each stage. Drying time measuring instrument. The diameter of the circular track drawn by the needle of the QGZ-24 paint film drying time measuring instrument is 100mm, and the end diameters are 0.25, 0.5, 1.0, and 1.5mm.

Structural diagram of QGZ-24 paint film drying time Tester

1. Switch

2. Outer cover

3. Legs

4. Connecting shaft

5. Rotating arm

6. Draw the needle

7. Test board

8. Time scale

QGZ-24 Paint Film Drying Time Tester Usage Requirements

1. Test plate: glass plate (200*200*2~3) or smooth tinplate plate (200*200*0.2~0.3) or agreed test plate material.

2. Test environment: According to the requirements of GB1727-79, place the coated test panel horizontally, away from airflow and direct sunlight, and conduct a drying test at a temperature of 25±1℃ and a Relative Humidity of 65±5%. Or conduct drying test according to other agreed conditions.

Principle of QGZ-24 paint film drying time meter

Place the QGZ-24 paint film drying time measuring instrument on the prepared coating film test plate, turn on the power supply and synchronous motor, and drive the rotating arm equipped with a scoring needle through the connecting shaft. (The arm is in a free-falling state) Rotate at a constant speed at the speed of one week/6 hours, one week/12 hours, and one week/24 hours. The scribing needle will draw a circular track with a diameter of 100mm on the coating film. As the coating gradually dries over time, the plow marks made by the needle on the coating change from wide to narrow, from deep to shallow, and finally no trace is left, thus showing the entire drying process.

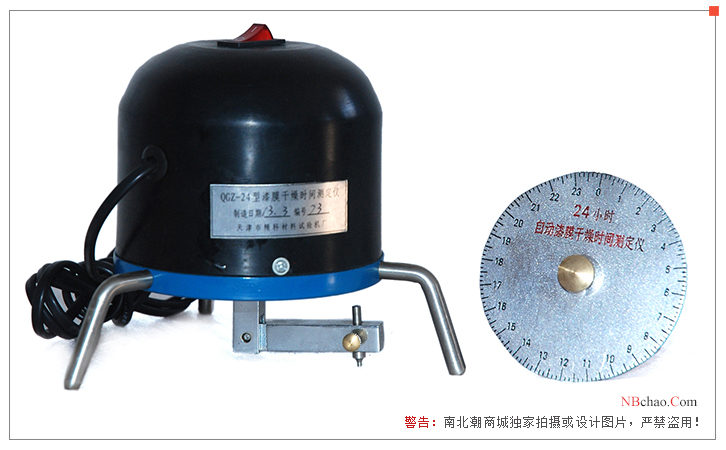

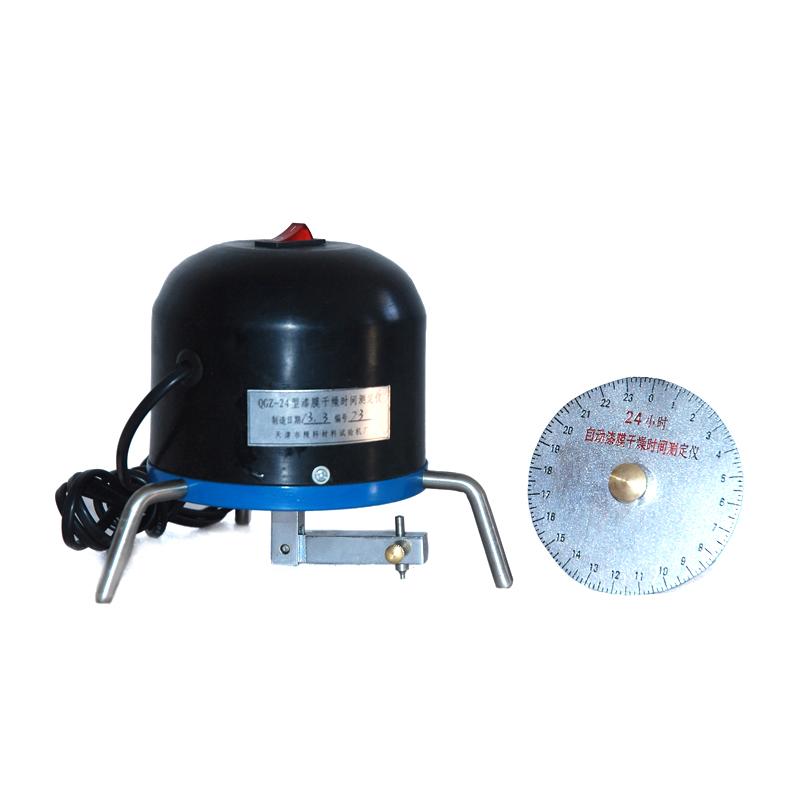

QGZ-24 paint film drying time Tester display diagram

Packing list：Drying time Recorder x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
