Germany PHYNIX PaintCheck FN paints Film thickness meter magnetic Induction eddy Current dual-use Film thickness meter

Measurement principle: magnetic Induction + eddy Current, Measurement range 0~2000μm, error range +/- 5%, resolution 1μm, can automatically identify different metal substrates, including iron/steel and non-ferrous metals.
Contact
Details SPEC VIDEO CAT OI
Similar products

PHYNIX PaintCheck FN Film thickness meter for dual-useSPEC

PHYNIX PaintCheck FN Film thickness meter for dual-useDetails

PHYNIX PaintCheck FN Film thickness meter for dual-usePacking list

SKU
NB001517
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~2000μm
margin of error
±5%
resolution
1μm
Minimum radius of curvature
Convex 25mm; Concave 50mm
thinnest substrate
0.75mm(F)；0.25mm(N)
probe
FN integrated probe
icon function
none
Standards
DIN、ISO、ASTM、BS
Display screen
4 digits and letters, 10 mm high
supporting software
none
Weight
90G (including battery)
Dimension
110*50*25mm
testing environment
Iron/steel and non-ferrous metals
Calibrated mode
Manufacturer calibrated
Operating temperature
0~50℃
Probe contact temperature
-15~60℃
Minimum headroom
125mm
Minimum measurement surface
40*40mm
Protection level
IP52
PaintCheck FN
Film thickness meter for dual-use
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~2000μm, error range +/- 5%, resolution 1μm, can automatically identify different metal substrates, including iron/steel and non-ferrous metals.
Germany PHYNIX PaintCheck FN paints Film thickness meter magnetic Induction eddy Current dual-use Film thickness meter Picture

PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany


Coating Thickness Gauge selector

Overview of the PaintCheck FN Dual-Purpose Film Thickness Gauge

Phoenix, GermanyThe PaintCheck FN Dual-Purpose Film Thickness Gauge is a dual-function coating Thickness Gauge with a built-in tungsten carbide wear probe.The PaintCheck FN Dual-Purpose Film Thickness Gauge is suitable for all metal substrate testing and is able to automatically identify different metal substrates, including iron/steel and non-ferrous metals.PaintCheck FN Dual-Purpose Film Thickness GaugeThe measurement range is 0~2000 microns.

PaintCheck FN dual-purpose Film Thickness Gauge function

1) Display reading 4 digits and letters, 10mm high

2) Factory calibrated, no need to manually calibrate again

3) The protection level of the dual-purpose film thickness meter is IP52, which has good dustproof and waterproof characteristics

4) The built-in probe is made of tungsten carbide, which has good wear resistance

Illustration of the PaintCheck FN dual-purpose Film Thickness Gauge

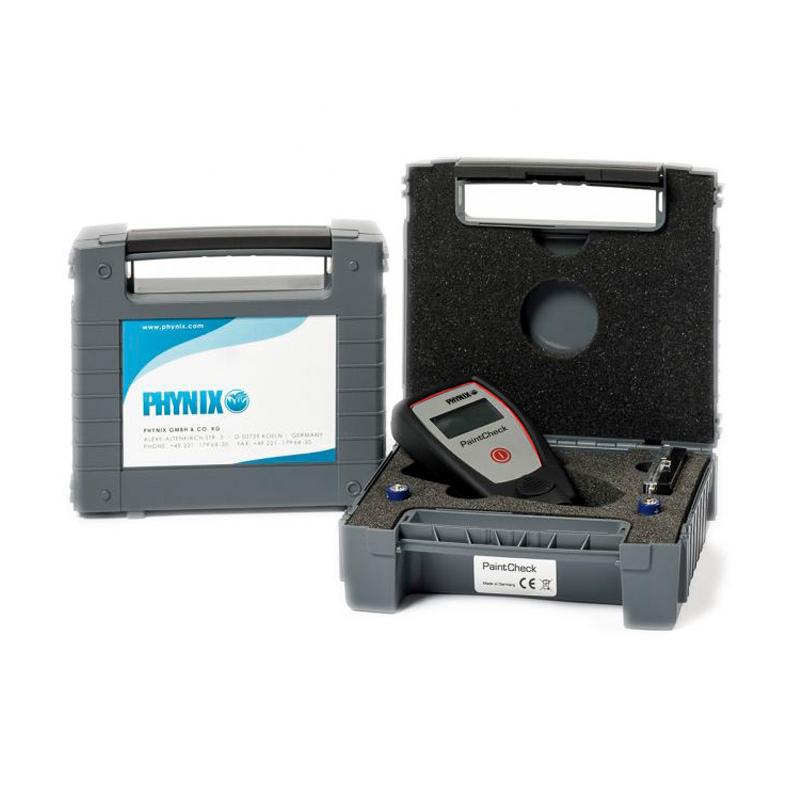

Exterior view of the PaintCheck FN dual-purpose Film Thickness Gauge from Phoenix, Germany

Detail of the display of the PaintCheck FN dual-purpose Film Thickness Gauge in Phoenix, Germany


FAQ
QThe thickness gauge PaintCheck FN can test two substrates, right?
A Hello, yes, this film thickness meter is dual-use, and both magnetic and non-magnetic substrates can be tested.
QDoes this PaintCheck FN dual-purpose film thickness meter need to be manually calibrated?
A Hello, no need, this film thickness meter has been calibrated when it leaves the factory.
QDoes the PaintCheck FN paint film thickness meter have requirements for the surface temperature of the measured object?
A Hello, yes, the surface temperature of this PaintCheck FN paint film thickness meter is -15 ° C to 60 ° C.
