American JENCO 692 (set) online acid alkalinity transmitter

SE
Standard 1/8 aluminum shell body, LCD display, support automatic temperature compensation, pH measurement range 0.00~14.00pH, pH measurement accuracy +/- 0.1%, resolution 0.01pH
Model：
Certificate
Contact
Details SPEC CAT OI

JENCO 692 (set) Online acid alkalinity transmitterSPEC

JENCO 692 (set) Online acid alkalinity transmitterDetails

JENCO 692 (set) Online acid alkalinity transmitterPacking list

SKU
NB015177
PH range
0.00~14.00pH
PH Measurement Accuracy
±0.1%
Resolution
0.01pH
Impedance
>10^12Ω
Power Supply
230VAC,50/60Hz
Dimensions
96*48*167mm
Current output range
4~ 20mA isolated current output
opening size
92*45mm
Display
LCD
Shop Accessories
pH electrode, sheath, sealing box
692 (set)
Online acid alkalinity transmitter
Standard 1/8 aluminum shell body, LCD display, support automatic temperature compensation, pH measurement range 0.00~14.00pH, pH measurement accuracy +/- 0.1%, resolution 0.01pH

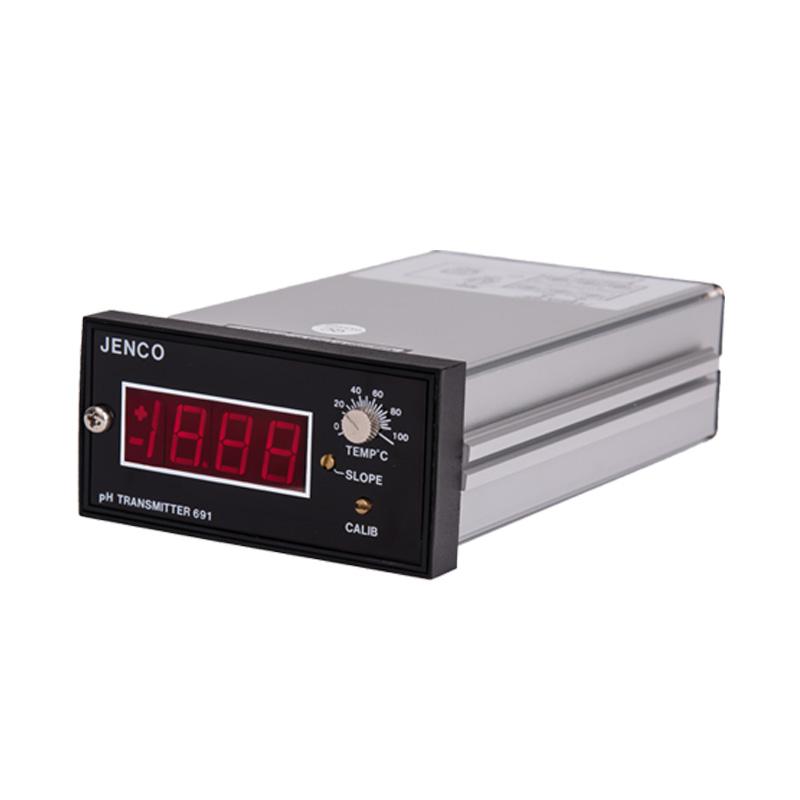

American JENCO 692 (set) online acid alkalinity transmitter Picture

Introducing the JENCO 691/692 In-Line pH Transmitter

  • Standard 1/8 aluminum case body

  • LED Display(691)LCD Display(692)

  • (691 general and extended two modes) 4~20mA isolated current output

  • Temperature compensation function (691-manual temperature compensation/692-automatic temperature compensation)

  • Affordable pH transmitters

  • With IP-600-10 (20 meters)

JENCO 691/692 in-line pH transmitter

Model 691/692 Industrial In-Line pH Transmitter Optional Accessories

Optional
pH electrodeIP-600-1Wastewater treatment with high turbidity
IP-600-10General wastewater treatment field
IP-600-9（PT）General wastewater treatment field (used in conjunction with 692)
Sheath tubeIP-600-9PT1 meter tube length
Sealed boxIP-600-1NPTDial-mounted
IP-600-3CNPTWall-mounted
FAQ
QDoes the online alkalinity transmitter meet the specifications of GB/T11165?
A Model 692 Online acid alkalinity transmitter
