JENCO 3631 pH oxidation reduction control/transmitter

SE
With waterproof design and power-off memory function, support for pH or ORP measurement, 4~ 20mA reversable isolated current output and two sets of settable relay control. Automatic temperature compensation function guarantees Accuracy to 1/8 DIN standard
Model：
Certificate
Contact
Details SPEC CAT

JENCO 3631 pH oxidation control/transmitterSPEC

JENCO 3631 pH oxidation control/transmitterDetails

JENCO 3631 pH oxidation control/transmitterPacking list

SKU
NB015178
PH range
-0.00~14.00pH
PH Measurement Accuracy
±0.01pH
Resolution
0.01pH
Power Supply
110或230VAC,50/60Hz
Dimensions
1/4DIN standard body, 96 * 46 * 119mm
Measurement range mV
-1999~1999mV
mV resolution
1mV
Measurement Accuracy of mV
±0.5%F.S
Current output range
4~ 20M isolated current output
Insulation Voltage/maximum load
500VDC/550Ω
Relay Control Output/Maximum Load
System ON/OFF control/2.5A/230VAC
opening size
92*46mm
Shop Accessories
pH electrode, ORP electrode, mounting bracket, sealing box
3631
pH oxidation control/transmitter
With waterproof design and power-off memory function, support for pH or ORP measurement, 4~ 20mA reversable isolated current output and two sets of settable relay control. Automatic temperature compensation function guarantees Accuracy to 1/8 DIN standard

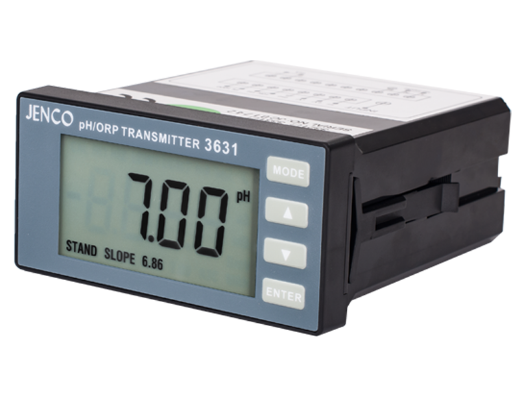

JENCO 3631 pH oxidation reduction control/transmitter Picture

Features

  1. Standard 1/8 DIN waterproof body design correction value power-off memory function.

  2. pH or ORP values can be measured.

  3. 4~20mA reversible, with isolated current output, the output range can be set by the user.

  4. 2 sets of pH relay control, control point/hysteresis width can be set by the user.

  5. It has the function of automatic temperature compensation.

JENCO 3631 pH Redox Control/Transmitter

Optional
pH electrodeIP-600-1In the field of wastewater treatment with high turbidity, it can be used in a long-term environment of 80 degrees
IP-600-10In the field of ordinary carved water treatment, there is no temperature compensation
IP-600-9PTIn the field of ordinary carved water treatment, automatic temperature compensation
IP-600-3C Pure water, ultrapure water measurement
ORP electrodesIR-500-8In the field of general wastewater, -2000mV~2000mV
IR-500-9In the field of general wastewater, -1000mV~1000mV
Mounting bracket009A1 meter pool mounting bracket
Sealed box011-200-00Dial-mounted
012-200-00Wall-mounted
FAQ
QDoes the JENCO pH oxidation reduction control/transmitter meet the GB/T11165 standard?
A The 3631 pH oxidation reduction control/transmitter can be referred to
