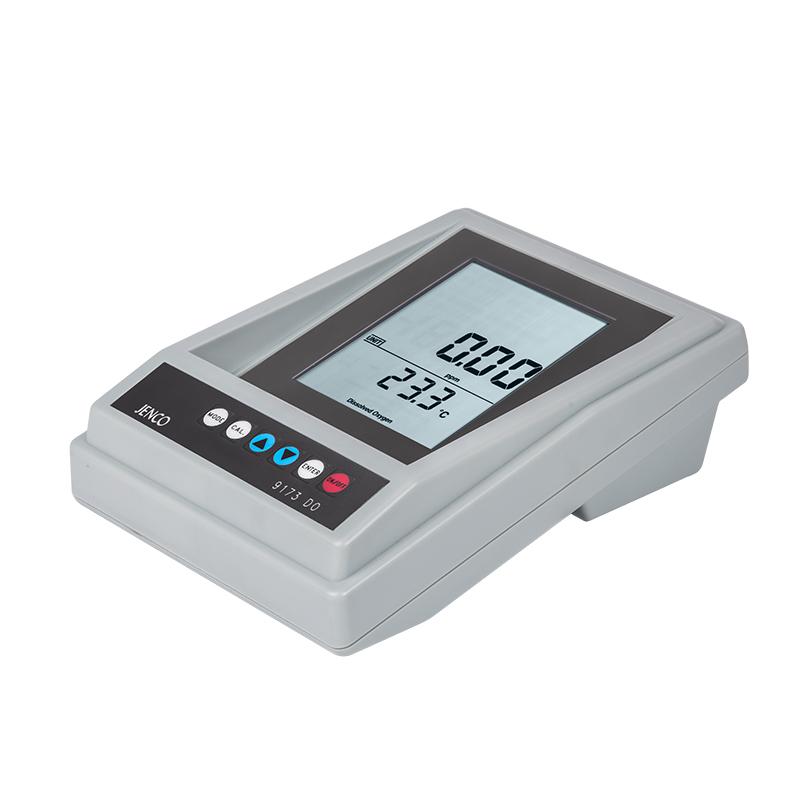

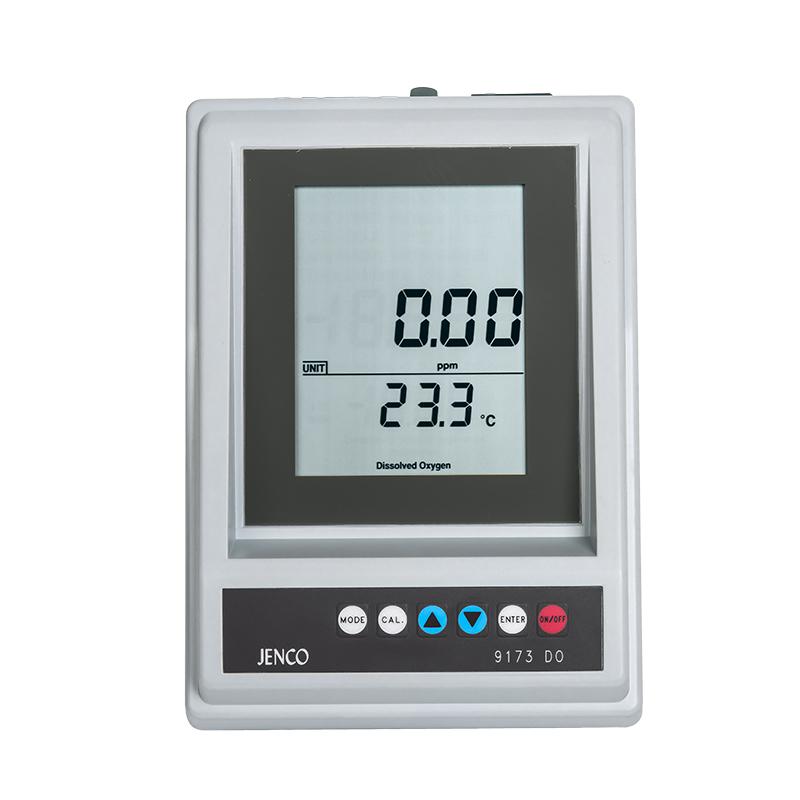

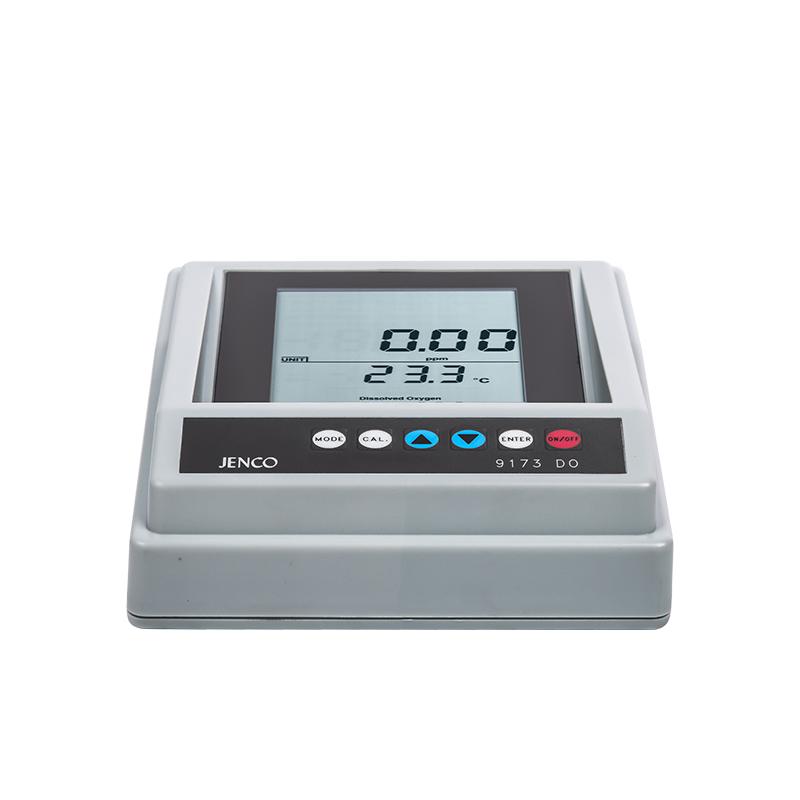

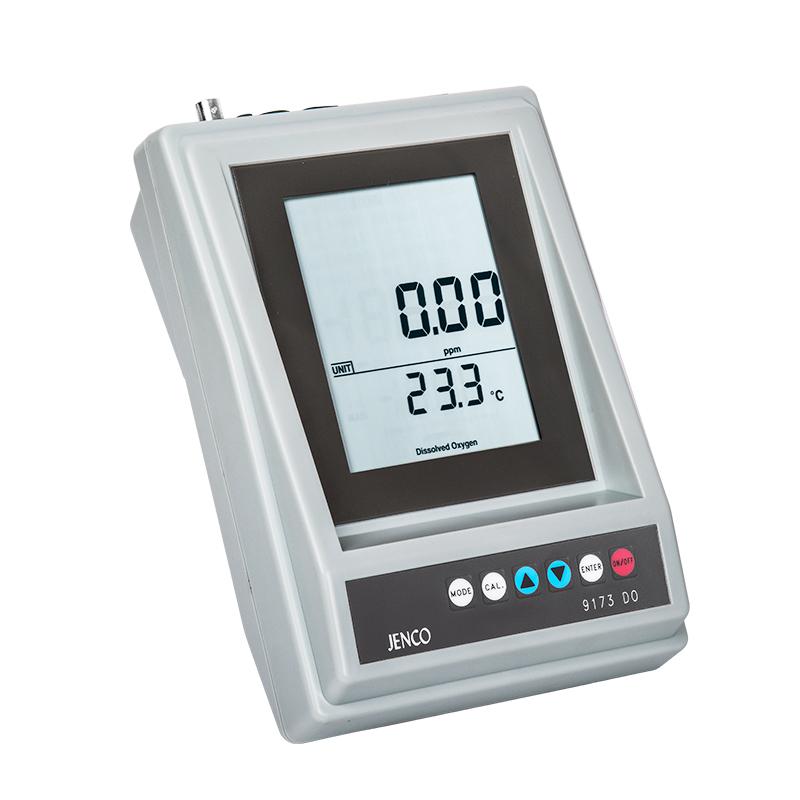

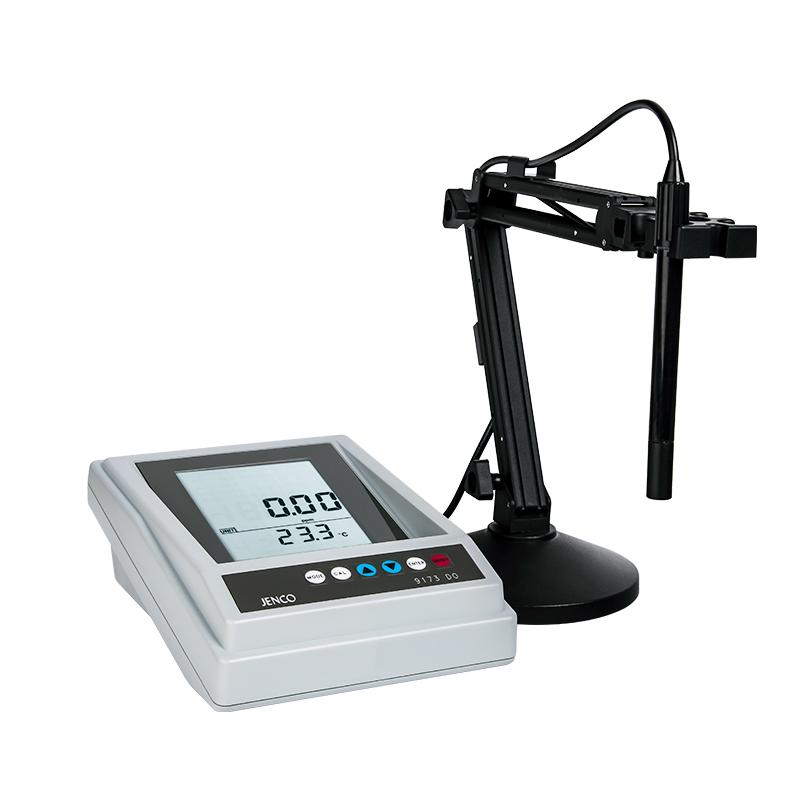

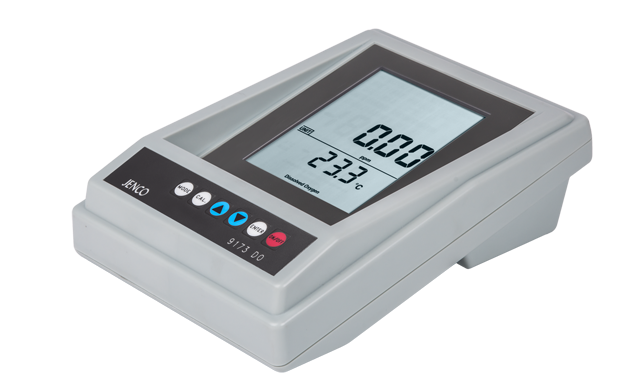

JENCO 9173R dissolved oxygen (DO) Tester, range: 0.00~20.00ppm

9173R

Dissolved oxygen (DO) Tester

0~20ppm, 0~200.0%, -6~ 50.0 ℃, salinity compensation range 0~40.0ppt, pressure compensation range 600~1100mBar, RS-232C waterproof body.

Introduction

The dissolved oxygen Tester uses an extra-large LCD display panel, which is easy to use. Uses polarographic sensors, interchangeable diaphragms, programmable pressure compensation, 600 to 1000 mBar, salinity compensation, 0 to 40.0 ppt. Dissolved oxygen and temperature are displayed on the dual-display LCD screen, and RS-232-C interface. The ATC is a 10K thermal resistor and uses a 115/230V mixer or battery.

Features

• High Definition LCD panel display (4 1/8 x 3 1/16 in.)

• The high-definition LCD panel displays the amount of dissolved oxygen: air saturation ratio or dissolved oxygen per 1,000 parts, and the temperature can also be displayed at the same time

• Temperature-compensated dissolved oxygen data is performed manually or automatically

• The user can select salinity and pressure to compensate for the dissolved oxygen data

• Polarographic detection allows users to obtain accurate and reliable data

• Convenient single-point calibration, dissolved oxygen calibration data can be stored, and it can be used right out of the box

• Auto-lock mode with auto-sensing shutdown to keep your data safe

• The touch & voice membrane keypad allows you to operate the instrument intuitively

• The water-repellent housing is made of durable, reinforced plastic for added protection and includes a connector protective cover

• Offset LCD panels are protected against damage caused by carelessness.

• The small body does not take up desk space

• RS-232 specification computer interface

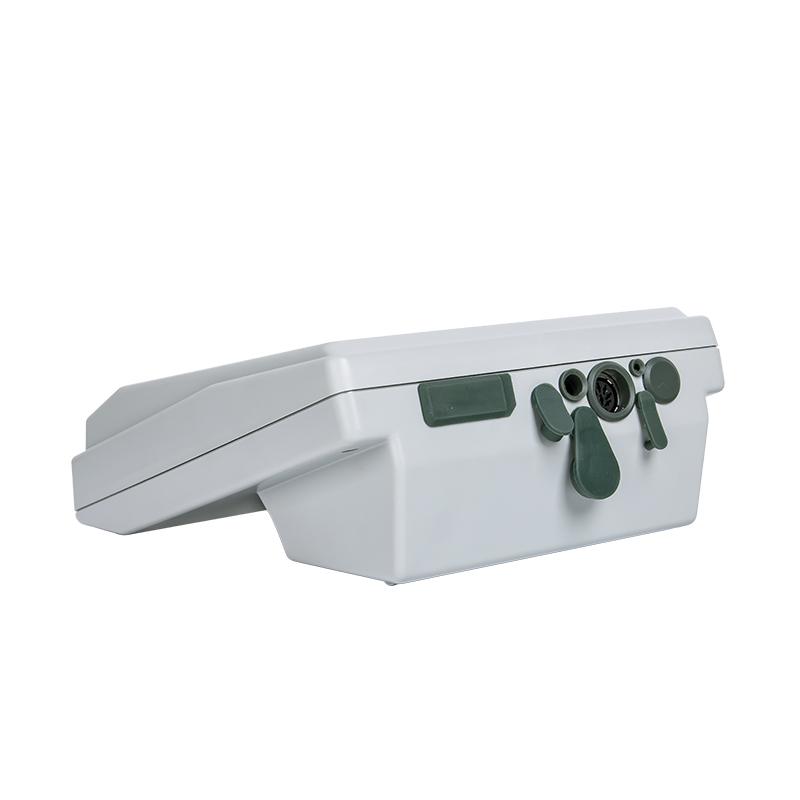

• 8 pin DIN connector for dissolved oxygen and thermal resistor

• Use the power supply as a power mixer or battery

Feature description

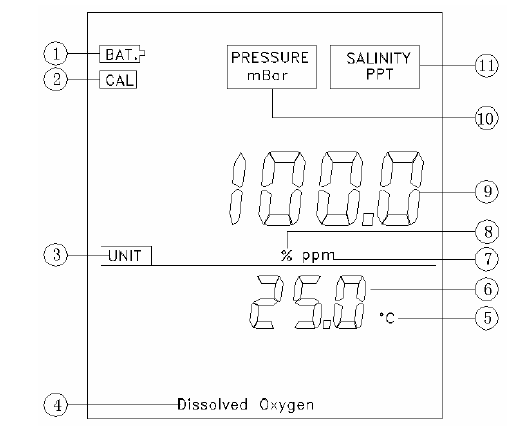

On-screen display instructions

1.BAT. : Flashing indicates that the battery needs to be replaced.

2.CAL: Indicates the correction mode.

3.UNIT: Display unit.

4. Dissolved Oxygen: Instrument type.

5. °C: unit of temperature.

6.25.0: Temperature main display.

7. ppm: Dissolved oxygen (ppm) display unit.

8.%: Dissolved oxygen (%) display unit.

9.100.0: Dissolved Oxygen Main Display.

10.PRESSURE mBar: Atmospheric pressure and its units.

11. SALINITY ppt : Salinity and its units.

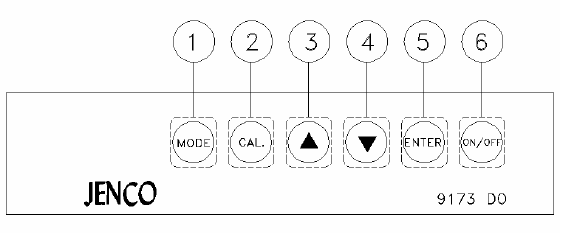

Button description

Packing list：Host X1, LD-900-7 electrode X1, LD-900-3A electrode film head X1, 007A 10,000 body electrode bracket X1, AC voltage regulator X1, battery X1, software X1, data cable X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
