Germany PHYNIX PaintCheck plus FN dual-use Coating Thickness Gauge

Measurement range 0~3000μm, error range +/- 5%, minimum curvature radius convex 25mm; concave 50mm, the thinnest substrate 0.75mm (F); 0.25mm (N), can automatically identify different metal substrates, suitable for measurement of iron, steel and non-ferrous metal substrates.
Contact
Details SPEC CAT OI
Similar products

PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)SPEC

PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)Details

PHYNIX PaintCheck plus FN Dual-use simple Thickness Gauge (enhanced)Packing list

SKU
NB001519
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~3000μm
margin of error
±5%
resolution
1µm|2µm|5µm
Minimum radius of curvature
Convex 25mm; Concave 50mm
thinnest substrate
0.75mm(F)；0.25mm(N)
probe
FN integrated probe
Power Supply
2 * Battery
Standards
DIN、ISO、ASTM、BS
Calibrated Certificate
English, German
Display screen
4 digits and letters, 10 mm high
Weight
90G (including battery)
Dimension
110*50*25mm
testing environment
Iron/steel and non-ferrous metals
Calibrated mode
Manufacturer calibrated
Operating temperature
0~50℃
Probe contact temperature
-15~60℃
Minimum headroom
125mm
Minimum measurement surface
40*40mm
Protection level
IP52
PaintCheck plus FN
Dual-use simple Thickness Gauge (enhanced)
Measurement range 0~3000μm, error range +/- 5%, minimum curvature radius convex 25mm; concave 50mm, the thinnest substrate 0.75mm (F); 0.25mm (N), can automatically identify different metal substrates, suitable for measurement of iron, steel and non-ferrous metal substrates.

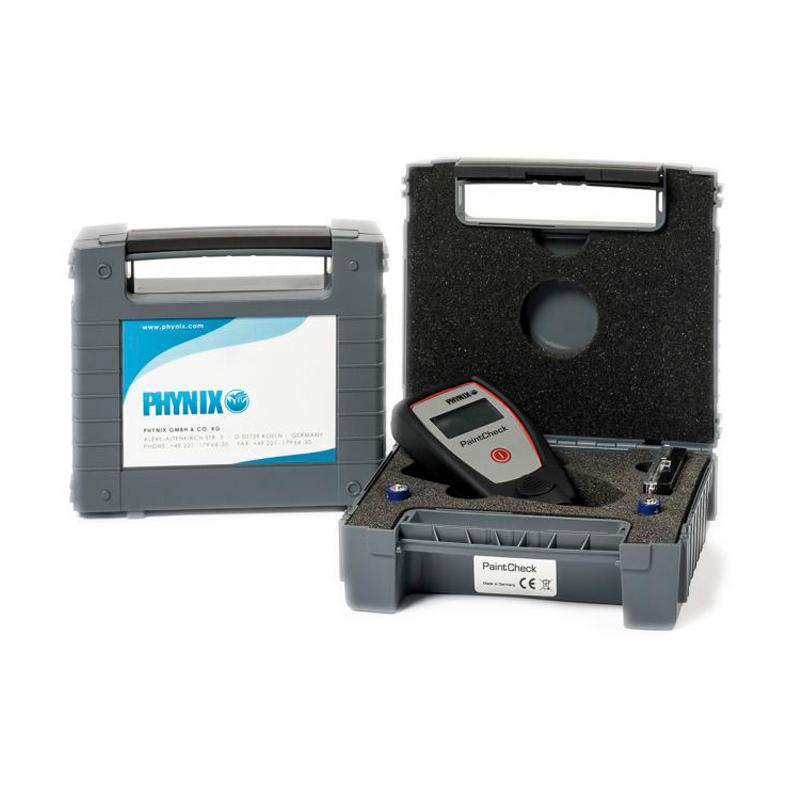

Germany PHYNIX PaintCheck plus FN dual-use Coating Thickness Gauge Picture

PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany


Coating Thickness Gauge selector

Overview of the PaintCheck plus FN dual-purpose coating Thickness Gauge

The Phoenix PaintCheck plus FN dual-purpose coating Thickness Gauge is differentThe PaintCheck FN type is a reinforced coating Thickness Gauge that measures thickness in the range of 0~3000 microns.The PaintCheck plus FN dual-purpose coating Thickness Gauge automatically identifies different metal substrates and is suitable for measuring substrates such as iron, steel, and non-ferrous metals.

PaintCheck puls FN dual-purpose coating Thickness Gauge application

It is suitable for measuring coating thickness in powder coating, paint shop, automobile, shipbuilding, building materials industry and other fields.

Illustration of the PaintCheck plus FN dual-purpose coating Thickness Gauge

The PaintCheck puls FN dual-purpose coating Thickness Gauge as a whole

PaintCheck puls FN dual-purpose coating Thickness Gauge measurement display

FAQ
QCan PaintCheck puls FN be tested for convex surfaces?
A Hello, yes, this Coating thickness gauge is designed with a V-shaped groove at the probe position, which is convenient for testing the curved surface. The minimum curvature radius for the convex surface is 25mm.
QPaintCheck puls FN dual-purpose Coating thickness gauge can test what kind of substrate?
A Hello, this Coating thickness gauge is dual-use type, which can test iron, steel and non-ferrous metal substrates.
QHello, do powder lame plating, looking for an imported dual-purpose Coating thickness gauge for basic testing?
A Hello, you can take a look at this PHYNIX PaintCheck puls FN dual-purpose Coating thickness gauge, https://www.nbchao.com/p/1519/.
