Germany PHYNIX Surfix easy I FN easy to use built-in probe dual-use type Film thickness meter [Discontinued]
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~3500 µm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, built-in probe, with magnetic eddy current Measurement principle, suitable for testing all metal substrates, with automatic identification function.
Model：
Surfix® easy I-FN
PHYNIX
Similar products
-
Defelsko PosiTector 6000 FNTS3 Coating Thickness Gauge for coatings$ 1998.00SE -
KAIRDA NDT530 (F1) Galvanized Thickness Gauge with magnetic Induction Probe$ 288.00SE -
Defelsko PosiTector 6000 FNTS1 Coating Thickness Gauge magnetic eddy current dual-use Thickness Gauge$ 1509.00SE -
Defelsko PosiTector 6000 FT1 Portable platings Thickness Gauge, integrated magnetic Thickness Gauge$ 966.00SE -
Defelsko PosiTector 6000 FT3 Coating Thickness Gauge$ 1456.00SE
PHYNIX Surfix® easy I-FN Easy to use Built-in probe dual-use Film thickness meterSPEC
PHYNIX Surfix® easy I-FN Easy to use Built-in probe dual-use Film thickness meterDetails
PHYNIX Surfix® easy I-FN Easy to use Built-in probe dual-use Film thickness meterPacking list
- SKU
- NB001520
- Measurement principle
- Magnetic Induction + eddy Current
- Measurement range
- 0~3500µm
- margin of error
- ±2%
- resolution
- 1µm|2µm|5µm
- Minimum radius of curvature
- Convex 5mm; concave 50μm
- thinnest substrate
- 0.5mm(F)；50mm(N)
- probe
- FN split probe
- statistical function
- Measurement times, MAX Maximum, MIN Minimum, Average, Standard deviation
- Power Supply
- 2 * AA battery
- Standards
- DIN、ISO、ASTM、BS
- Calibrated Certificate
- none
- system language
- German, English or French
- Display screen
- Ink monochrome screen
- Weight
- 90G (including battery)
- Dimension
- 110*50*25mm
- testing environment
- Iron/steel and non-ferrous metals
- Calibrated mode
- Manufacturer calibrated
- Operating temperature
- 0~50℃
- Probe contact temperature
- -15~60℃
- Protection level
- IP52
Surfix® easy I-FN
Easy to use Built-in probe dual-use Film thickness meter
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~3500 µm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, built-in probe, with magnetic eddy current Measurement principle, suitable for testing all metal substrates, with automatic identification function.
![Germany PHYNIX Surfix easy I FN easy to use built-in probe dual-use type Film thickness meter [Discontinued] Picture](http://img.nbchao.com/imgs/800/2017/12/26/1635250685670740.jpg)
overview
The Surfix easy I FN Film Thickness Gauge is a simple statistical coating Thickness Gauge from Phoenix, Germany, with a built-in probe, with two measuring principles of magnetic eddy current, suitable for testing all metal substrates, with automatic recognition function. The Surfix easy I FN is a dual-purpose film thickness meter with built-in probes with a measurement range of 0~3500 microns for steel/iron and 0~3000 microns for non-ferrous metals, and can be measured right from the start-up without calibration.
1) The measuring probe is large and the measurement is stable
2) No calibration is required, and statistical parameters such as measured values and average values can be realistic
3) Suitable for powder coating, paint workshop, automobile, shipbuilding, building materials industry and other fields

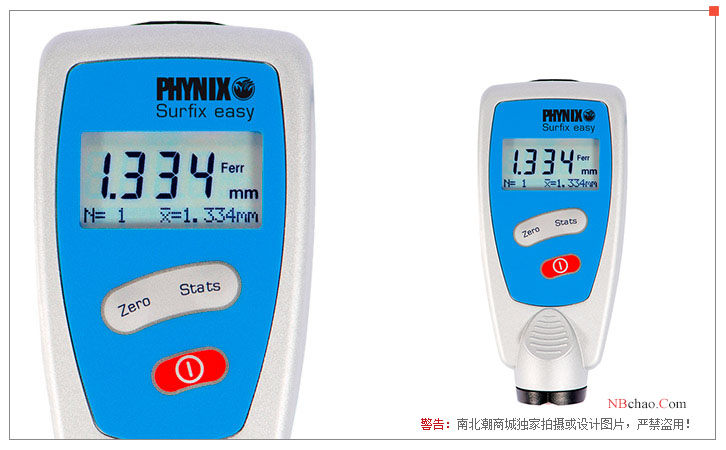

Display diagram
Comparison of Surfix easy series Thickness Gauges
| Compare categories | Surfix® easy I-FN | Surfix® easy I-F | Surfix® easy E-FN | Surfix® easy E-F |
| Product diagram |  |  |  |  |
| Comparison of specifications | ||||
| Principle | Electromagnetic induction + eddy current | electromagnetic induction | Electromagnetic induction + eddy current | electromagnetic induction |
| Measuring range | Iron/steel 0~3500μm; Non-ferrous metals 0~3000μm | 0~3500μm | steel 0~3500μm; Non-ferrous metals 0~3000μm | 0~3500μm |
| Margin of error | ±2µm+2% | |||
| resolution | 1µm | |||
| Minimum substrate diameter | 10mm | |||
| Minimum curvature | Convex 5 μm concave 50 μm | Convex 2mm; Concave 50 μm | ||
| Thinnest matrix | Electromagnetic induction: 0.5μm, eddy current: 50um | 0.5μm | Magnetic induction: 0.5μm; Vortex: 50um | 0.5μm |
| probe | One-piece probe | Wired probes | ||
| Statistical functions | Mean, Standard Deviation, Minimum, Maximum | |||
| Graphical features | not | |||
| Weight (g) | 90g (including battery) | 140g (with battery) | ||
| Dimensions (mm) | 110×50×25mm | |||
| Form of power supply | 2 AAA batteries | |||
| Meet the criteria | DIN，ISO，BS ASTM | |||
| Calibration certificate | Production inspection certificate | |||
| Display the screen | Monochrome ink screen | |||
FAQ
QPottery and porcelain. Is this Surfix easy I FN Coating thickness gauge suitable?
A
Hello, yes, Pottery and porcelain are non-magnetic conductive coatings. PHYNIX This thickness gauge is a dual-purpose thickness gauge. It adopts the principle of magnetism and eddy current thickness measurement to test Pottery and porcelain coating Film thickness.
QWill the test data be lost if the battery of the Surfix easy I FN thickness gauge is replaced?
A
Hello, the manufacturer recommends replacing the battery within 20 seconds, otherwise the calibrated and measurement data stored by the instrument will be lost.
QCan the Surfix easy I FN Coating thickness gauge be used to test surface temperatures below zero?
A
Hello, yes, the surface temperature range of this thickness gauge is -15 ℃~ 60 ℃.
