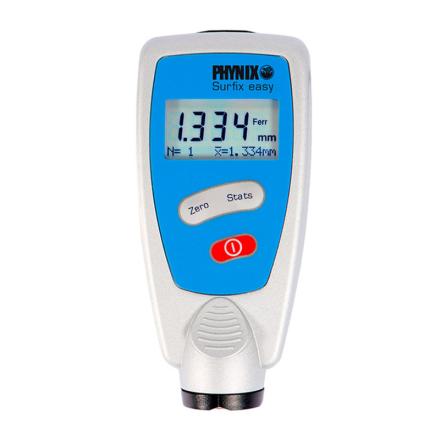

PHYNIX Surfix® easy I-F Easy to use Built-in probe Iron-based Film thickness meter Specifications
Search![Germany PHYNIX Surfix easy I F built-in probe Iron-based Film thickness meter [Discontinued]](http://img.nbchao.com/imgs/440/2017/12/26/1635340310811012.jpg)
Brand：PHYNIX
Model：Surfix® easy I-F
Name：Easy to use Built-in probe Iron-based Film thickness meter
Specifications
| Measurement principle | magnetic Induction |
| Measurement range | 0~3500μm |
| margin of error | ±2% |
| resolution | 1µm|2µm|5µm |
| Minimum measurement surface | Φ10mm |
| Minimum radius of curvature | Convex 5mm; Concave 50mm |
| thinnest substrate | 0.5mm |
| probe | F integrated probe |
| statistical function | MAX Maximum, MIN Minimum, Average, Standard deviation |
| icon function | none |
| Standards | DIN、ISO、ASTM、BS |
| Calibrated Certificate | Production inspection Certificate |
| system language | German, English or French |
| Display screen | Monochrome ink screen |
| Weight | 90G (including battery) |
| Dimension | 110*50*25mm |
| testing environment | Iron/steel |
| Calibrated mode | Manufacturer calibrated |
| Operating temperature | 0~50℃ |
| Probe contact temperature | -15~60℃ |
| Minimum measurement surface | 10*10mm |
| Protection level | IP52 |
Packing list
Measurement instrument x1, test foil 200 microns x1, zero standard sheet x1, material package x1, rubber protective cover x1, battery x2, user manual x1
After-sales instructions
Warranty days: 365 days
