Germany PHYNIX Surfix easy E FN dual function coating platings Thickness Gauge magnetic eddy current external probe

Measurement principle: magnetic Induction + eddy Current, Measurement range 0~3500 µm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, not only the measurement of steel substrates, but also the measurement of non-ferrous metal substrates Coating thickness.
Contact
Details SPEC CAT OI
Similar products

PHYNIX Surfix® easy E-FN Easy-to-use external probe dual-use film thickness meterSPEC

PHYNIX Surfix® easy E-FN Easy-to-use external probe dual-use film thickness meterDetails

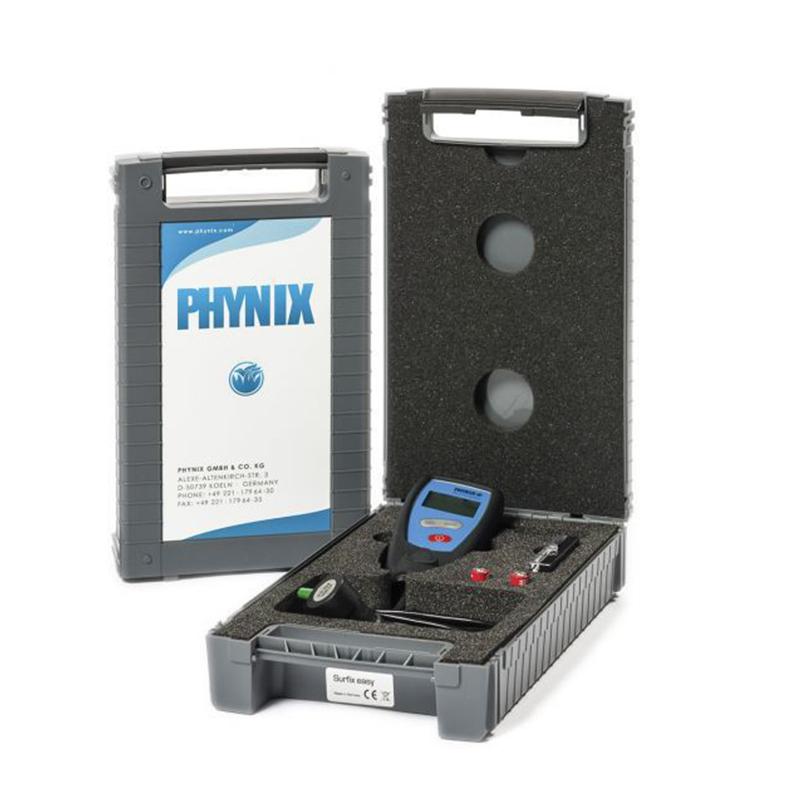

PHYNIX Surfix® easy E-FN Easy-to-use external probe dual-use film thickness meterPacking list

SKU
NB001522
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~3500µm
margin of error
±2%
resolution
1µm|2µm|5µm
Minimum measurement surface
Φ10mm
Minimum radius of curvature
Convex 5mm; Concave 50mm
thinnest substrate
0.5mm(F)；50μm(N)
probe
FN split probe
statistical function
MAX Maximum, MIN Minimum, Average, Standard deviation
icon function
none
Power Supply
2 * AA 1.5V battery
Standards
DIN、ISO、ASTM、BS
Calibrated Certificate
Production inspection Certificate
system language
German, English or French
Display screen
Monochrome ink screen
Weight
140G (including battery)
Dimension
110*50*25mm
Calibrated mode
Factory calibrated, zero calibrated
Operating temperature
0~60℃
Probe contact temperature
-15~60℃
Probe size
Φ24*45mm
Protection level
IP52
Minimum headroom
50 mm
Data storage
80 measurement values, can be individually recalled
Surfix® easy E-FN
Easy-to-use external probe dual-use film thickness meter
Measurement principle: magnetic Induction + eddy Current, Measurement range 0~3500 µm, error range +/- 2%, resolution 1 µm | 2 µm | 5 µm, not only the measurement of steel substrates, but also the measurement of non-ferrous metal substrates Coating thickness.
Germany PHYNIX Surfix easy E FN dual function coating platings Thickness Gauge magnetic eddy current external probe Picture

PHYNIX Surfix Series Coating Thickness Gauges from Phoenix, Germany


Coating Thickness Gauge selector

PHYNIX, Germany Surfix easy E FN Dual-Function Coating Thickness Gauge GenusThe Surfix Compact Series Thickness Gauge, Model FN Coated Thickness Gauge is an external probe type that offers the advantage of measuring hard-to-reach locations over internal probes.Surfix easy E The FN Dual-Function Coating Thickness Gauge is a magnetic eddy current dual-measuring principle that measures the coating thickness on not only steel substrates, but also non-ferrous metal substrates. The Surfix easy E FN gauge is also characterized by its statistical function, which can count the mean, standard deviation, minimum and maximum values.

 Surfix easy E FN is recommended for application

• Paint shop

• Paint and powder coating processes

• Automotive appraisal and auto repair shops

• Steel Structure, Automobile Manufacturing and Shipbuilding

• Product inspection

• Production process

• Final inspection and quality control

•laboratory

 Features of Surfix easy E FN:

1) Immediate opening and testing

2) It can measure horizontal, rough and curved surfaces at the same time

3）The easy E FN dual-purpose paint Thickness Gauge has an automatic substrate identification function

4) It is used for iron/steel and non-ferrous metal coating thickness measurement

5) No calibration required

6) With four statistical values:Mean, standard deviation, minimum, maximum

7) The contact area is large and the positioning is accurate

8) Sound signal is emitted during measurement

9) Switchable μm/mils

10) Big manufacturer testing certificate

11) It can detect the zinc layer under the lacquer coating

 Illustration of the Surfix easy E FN dual-function coating Thickness Gauge

Exterior drawing of the German PHYNIX Surfix easy E FN dual-function coating Thickness Gauge

Detail of the operation panel of the PHYNIX Surfix easy E FN dual-function coating Thickness Gauge in Germany

FAQ
QCan this platings be measured for nickel? Substrate S60C (ferroalloy) 6-15u
A Subdivision applications welcome sample testing.
QPHYNIX Is this Surfix easy E FN suitable for non-ferrous metals around 1500μm?
A Hello, it is suitable. The thickness measurement range of this Coating thickness gauge for testing non-ferrous metals is 0~ 3000μm.
QExcuse me, why does this Surfix easy E FN Coating thickness gauge keep flashing when charging?
A Hello, this is because of the voltage of the battery itself, which is normal.
QWhat material is this E-FN probe made of?
A You also, it is cemented carbide.
