PHYNIX Surfix® easy E-F Easy-to-use external probe Iron-based Film thickness meter Specifications

Search

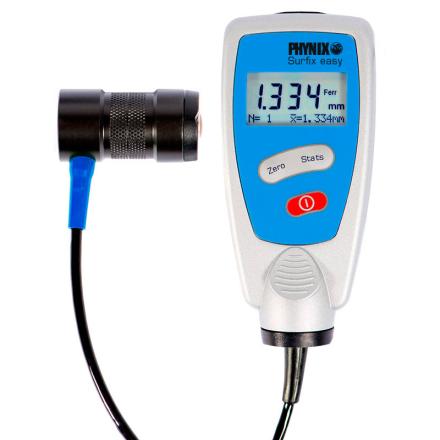

German PHYNIX Surfix easy E-F easy-to-use external probe Iron-based Film thickness meter

Brand：PHYNIX

Model：Surfix® easy E-F

Name：Easy-to-use external probe Iron-based Film thickness meter

DetailsContact
Specifications
Measurement principle magnetic Induction
Measurement range 0~3500µm
margin of error ±2%
resolution 1μm
Minimum measurement surface Φ10mm
Minimum radius of curvature Convex 2mm; concave 50μm
thinnest substrate 0.5mm
probe Wired probe
statistical function MAX Maximum, MIN Minimum, Average, Standard deviation
icon function none
Power Supply 2 * AAA Battery
Standards DIN、ISO、ASTM、BS
Calibrated Certificate Production inspection Certificate
system language German, English or French
Display screen Monochrome ink screen
Weight 140G (including battery)
Dimension 110*50*25mm
Packing list
Measurement instrument x1, test foil 200 microns x1, zero standard sheet x1, material package x1, rubber protective cover x1, battery x2, user manual x1
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/1523/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
