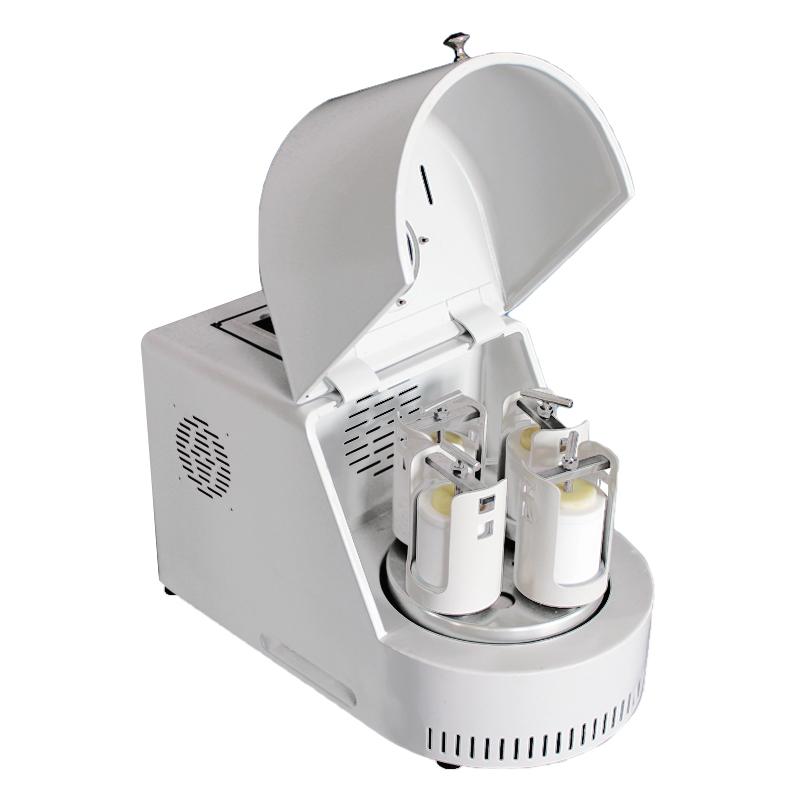

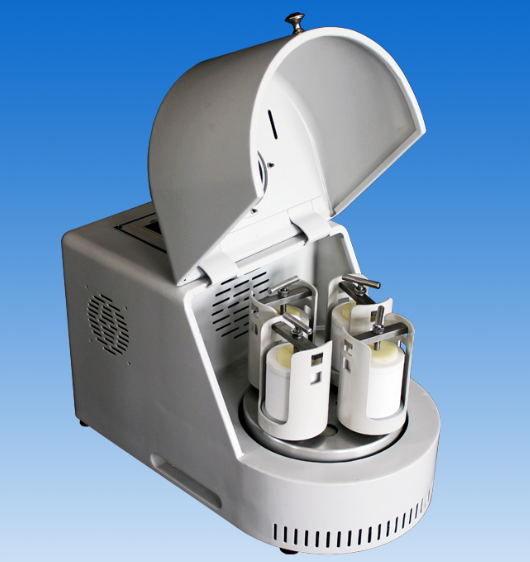

TENCAN Powder XQM-0.4 Vertical Planetary Ball mill Dry and wet ground semi-arc type
XQM-0.4
TENCAN Powder XQM-0.4 Vertical Planetary Ball millSPEC
TENCAN Powder XQM-0.4 Vertical Planetary Ball millDetails
TENCAN Powder XQM-0.4 Vertical Planetary Ball millPacking list
- SKU
- NB015271
- Voltage
- 220V AC
- Feed particle size
- Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
- Minimum discharge particle size
- 0.1μm
- Rotation speed
- Rotation: 45-435rpm, Rotation: 90-870rpm
- Three-phase motor variable frequency Controller Power
- 0.25KW (with Rotation speed display electronic monitoring device, continuous operation Timer Setting (1-3600min): positive and negative commutation operation cycle (1-999min)
- Speed regulation mode
- stepless speed regulation
- Maximum Continuous Working time
- 48h
- characteristic
- Ball mill adopts high-tech microcomputer chip control, which can run alternately forward and reverse repeatedly (0-999min) and forward, pause, reverse, pause and forward (0-999min) according to the setting program, especially suitable for the need to chill down or intermittent operation
- characteristic
- Dry grinding, wet grinding, optional vacuum inert gas grinding, optional low temperature grinding
- characteristic
- The gear transmission is lubricated with butter to reduce the decibel of equipment operation
- Dimensions
- 500*300*340mm
- Weight
- 29Kg (bare metal)
Product description and principle
Planetary ball mill is a required device for mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production of high-tech materials. This product has small size, full functions, high efficiency and low noise. It is an ideal equipment for scientific research institutions, universities and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously in each experiment). It is equipped with a vacuum ball mill. Tank, the sample can be ground under vacuum.
The XQM series variable frequency planetary ball mill is equipped with four ball milling tanks on the same turntable. When the turntable rotates, the ball milling tanks revolve around the turntable axis and rotate around their own axis, performing planetary motion. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. This product can grind and mix products with different particle sizes and materials using both dry and wet methods. The minimum particle size of the ground products can be as low as 0.1 micron (i.e. 1.0Ã10mm-4).
Application scope
Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments. The rotation speed, forward and reverse rotation alternation time, and total grinding time can be set according to process requirements.
