TENCAN Powder WXQM-0.4A horizontal planetary Ball mill light
WXQM-0.4A
TENCAN Powder WXQM-0.4A Horizontal Planetary Ball millSPEC
TENCAN Powder WXQM-0.4A Horizontal Planetary Ball millDetails
TENCAN Powder WXQM-0.4A Horizontal Planetary Ball millPacking list
- SKU
- NB015272
- Voltage
- 220V AC
- Feed particle size
- Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
- Minimum discharge particle size
- 0.1μm
- Rotation speed
- Rotation: 35-335rpm, Rotation: 70-670rpm
- Three-phase motor variable frequency Controller Power
- 0.75KW (with Rotation speed display electronic monitoring device, continuous operation Timer Setting (1-3600min): positive and negative commutation operation cycle (1-999min)
- Speed regulation mode
- stepless speed regulation
- Maximum Continuous Working time
- 48h
- characteristic
- Ball mill adopts high-tech microcomputer chip control, which can run alternately forward and reverse repeatedly (0-999min) and forward, pause, reverse, pause and forward (0-999min) according to the setting program, especially suitable for the need to chill down or intermittent operation
- characteristic
- Dry grinding, wet grinding, optional vacuum inert gas grinding, optional low temperature grinding
- characteristic
- The gear transmission is lubricated with butter to reduce the decibel of equipment operation
Planetary ball mill description and principle

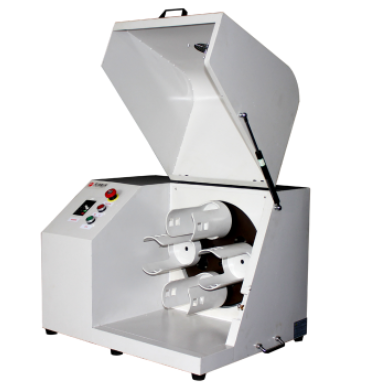

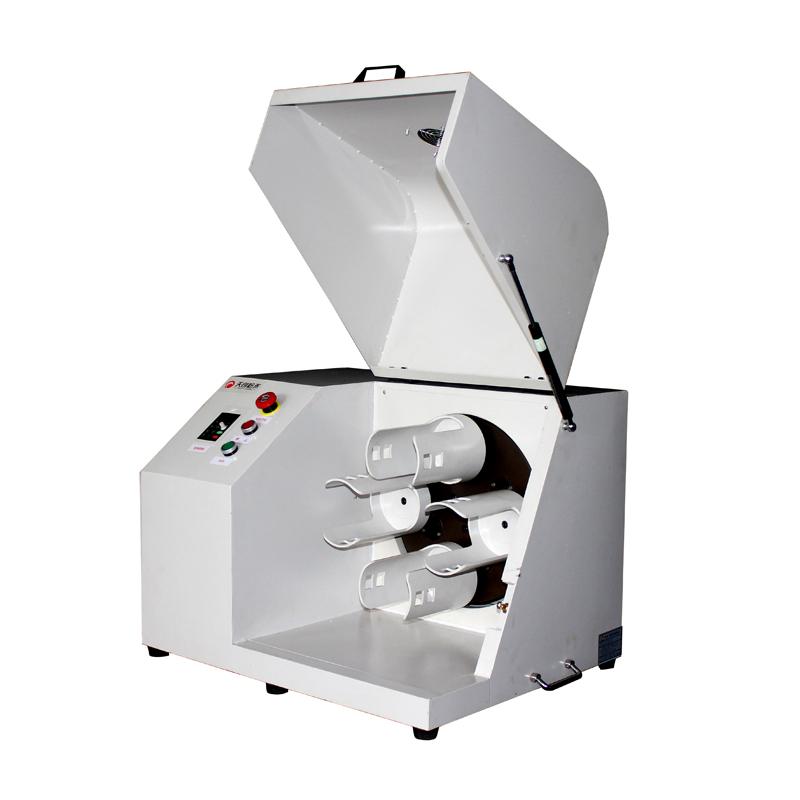

The WXQM-0.4A lightweight horizontal planetary ball mill is equipped with four horizontally installed ball milling tanks symmetrically on a vertical planetary disk. The ball mill tank does not have a fixed flat bottom during planetary motion. During the process of grinding materials, the grinding ball in the tank is affected by the two centrifugal forces of revolution and rotation, and is affected by its own gravity, which helps to strengthen the disorder of the grinding ball and materials. Optimize the degree of movement and improve grinding effect and efficiency. Since the ball mill tank does not have a fixed flat bottom when it rotates, it can better solve the problem of some materials sinking to the bottom. The lightweight horizontal planetary ball mill has a simple structure and convenient operation, and is suitable for experimental research on small batches of samples in the laboratory.
Application scope
WXQM-0.4A horizontal planetary ball mill is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, manganese Lithium acid, catalyst, phosphor, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistor, piezoelectric ceramics, nanomaterials, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products .
