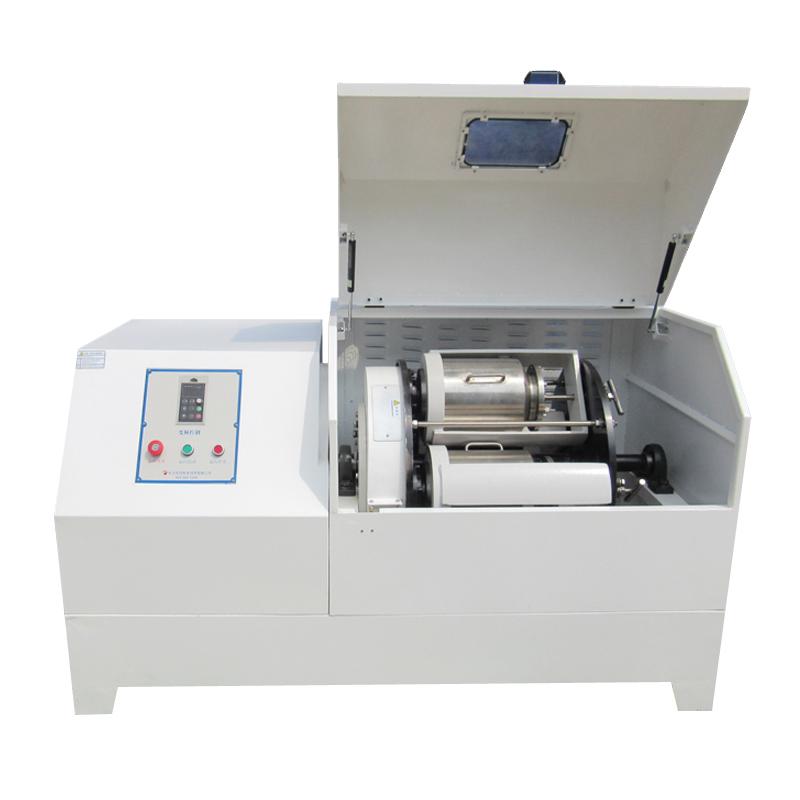

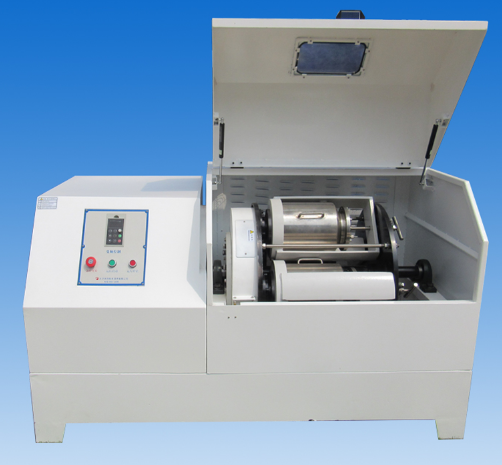

TENCAN Powder WXQM-80B horizontal planetary Ball mill heavy duty
WXQM-80B
TENCAN Powder WXQM-80B Horizontal Planetary Ball millSPEC
TENCAN Powder WXQM-80B Horizontal Planetary Ball millDetails
TENCAN Powder WXQM-80B Horizontal Planetary Ball millPacking list
- SKU
- NB015286
- Voltage
- 380V AC
- Feed particle size
- Soil material ≤ 10mm, Miscellaneous material ≤ 3mm
- Minimum discharge particle size
- 0.1μm
- Rotation speed
- Revolution: 35-193rpm, Rotation: 50-290rpm
- Three-phase motor variable frequency Controller Power
- 11KW (with Power display electronic monitoring device, continuous operation Timer Setting (1-3600min): positive and negative commutation operation cycle (1-999min)
- Speed regulation mode
- stepless speed regulation
- Maximum Continuous Working time
- 48h
- characteristic
- Ball mill adopts high-tech microcomputer chip control, which can run alternately forward and reverse repeatedly (0-999min) and forward, pause, reverse, pause and forward (0-999min) according to the setting program, especially suitable for the need to chill down or intermittent operation
- characteristic
- Dry grinding, wet grinding, optional vacuum inert gas grinding, optional low temperature grinding
Product description and principle
The WXQM-80B heavy-duty horizontal planetary ball mill adopts a double-disc support bracket structure at both ends, which effectively improves the stability and load resistance of the equipment and solves the limitation of light-duty horizontal planetary ball mills being limited to light load use. Heavy-duty horizontal planetary ball mill is mainly suitable for user pilot or small batch grinding production.
Application
WXQM-80B heavy-duty horizontal planetary ball mill is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments. It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, Lithium manganate, catalyst, phosphor, long afterglow luminescent powder, rare earth polishing powder, electronic glass powder, fuel cell, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, thermistor (PTC , NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor powder, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and other products field.
