JINGKELIAN QGM-65 Three-roll Grinder with hard chrome plating

SE
Roller diameter 65mm, speed ratio 1:3:9, Rotation speed 88rpm, material viscosity 30~8000cps, starting material particle size 50~100μm, finished product particle size 5~ 18μm/3 times, capacity 5kg/h
$716.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

JingKeLian QGM-65 Three-roll GrinderSPEC

JingKeLian QGM-65 Three-roll GrinderDetails

JingKeLian QGM-65 Three-roll GrinderPacking list

SKU
NB001529
Motor power
0.55kW
Overall Dimensions
450*450*430mm
Weight
70kg
Roller diameter
65mm
speed ratio
1:3:9
Medium roll speed
88rpm
Material Viscosity
30~8000cps
Feed particle size
50 ~ 100µm
Finished particle size
5~ 18μm/3 times
Capacity
5kg/h
Roller working length
135mm
Voltage
380V
QGM-65
Three-roll Grinder
Roller diameter 65mm, speed ratio 1:3:9, Rotation speed 88rpm, material viscosity 30~8000cps, starting material particle size 50~100μm, finished product particle size 5~ 18μm/3 times, capacity 5kg/h

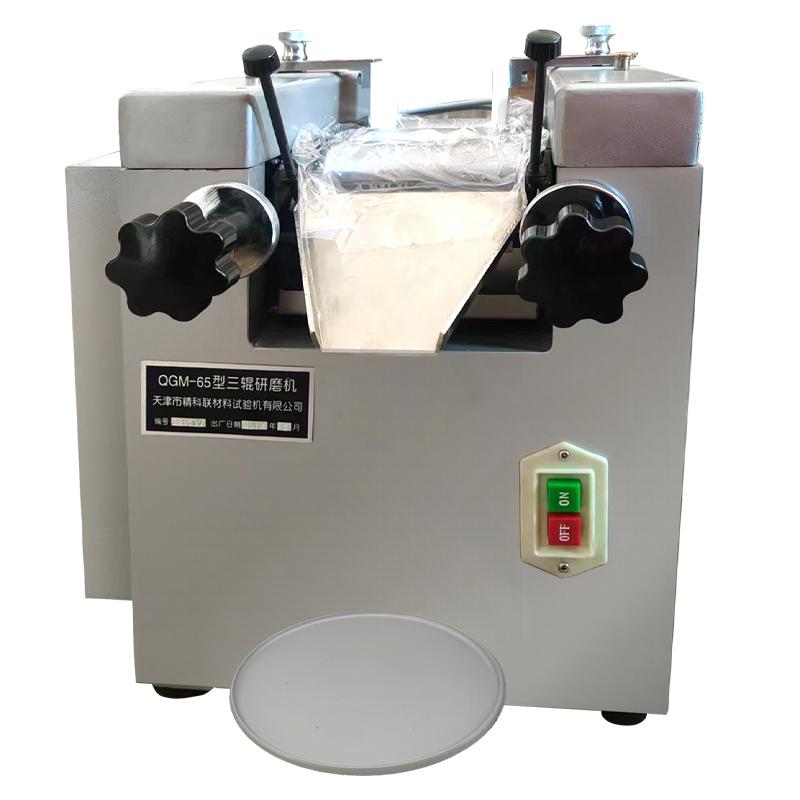

JINGKELIAN QGM-65 Three-roll Grinder with hard chrome plating Picture

product description

JinKeLian QGM-65 three-roller mill is a wet-type grinding and pulverizing machine with multiple functions such as pulverizing, dispersing, emulsifying, homogenizing, toning, recycling waste, etc. The main components of the QGM-65 three-roller Grinder are three rolls, which are treated with Cr12 steel for enhanced protection. The wear-resistant hardness reaches HRC52°~58°, and the surface roughness can reach 0.2~0.1. QGM-65 three-roll mill is easy to operate, easy to change colors, beautiful in appearance, low in noise, and is used for grinding and refining of various materials.

Application

It is suitable for chemical industries such as dyes, inks, plastics, paints, coatings, leather, rubber, lead cores, medicines, food, cosmetics and insulating materials.

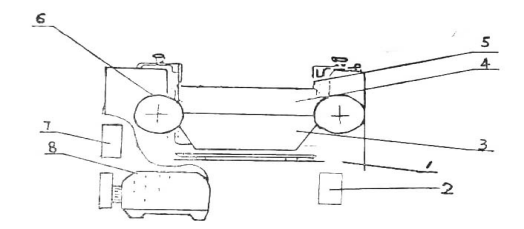

Structural diagram of QGM-65 three-roll mill

Structural diagram of JinKeLian QGM-65 three-roll mill

(1) Machine body (2) Electrical switch (3) Discharge plate (4) Roller (5) Stop material plate (6) Adjustment system (7) Transmission system (8) Motor.

plan

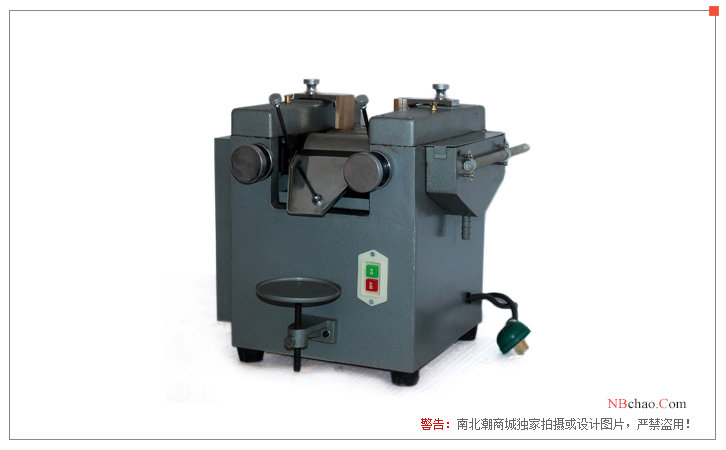

Appearance of JinKeLian QGM-65 three-roll mill

Principle

Raw materials are fed by a natural hopper composed of two middle and rear rollers and two baffle plates, and the opposite and asynchronous rotation of the middle and rear two groups will cause the raw materials to be turned sharply, sheared, and the structural stress plane between the raw material molecules will be destroyed. Through the high-speed secondary grinding of the middle and front rollers, the high-speed and uniform mixing of various raw materials can be achieved.


FAQ
QI want to grind inks, is it suitable to use QGM-65 Three-roll grinder?
A Suitable! This Three-roll grinder is specially used for grinding high viscosity materials such as inks. The roller is made of Cr12 steel, which has good Abrasion Resistance and can efficiently achieve the dispersion and homogenization of inks. The finished particle size can reach 5~ 18 microns, ensuring that inks are delicate and uniform.
QWhen choosing this machine, is there any requirement for material viscosity?
A Yes, it is suitable for materials with a viscosity of 30~ 8000cps. If your raw material viscosity is within this range, such as common paints, coatings or rubber, QGM-65 can be effectively crushed and mixed through three-roll high-speed grinding to ensure a stable mass of the finished product.
QCan you grind cellulose, the particle size reaches 50 microns, and the sample is generally about 30g?
A No, this Grinder is mainly used to grind liquids.
QCan this QGM-65 three-roller mill grind 100 mesh Resin granules into about 300 mesh powder?
A This is usually a ground liquid
QCan this Three-roll grinder be used for grinding with silver paste fineness?
A Sure
QHow many kilograms per hour can this machine pass through the finished paint?
A 5 kilograms per hour.
QDo you have the Three-roll grinder required by the GB/T21868.6 standard?
A This QGM-65 Three-roll grinder will do.
QWhat material are the rolls of this QGM-65 Three-roll grinder?
A Hello, the three rolls of this Jingke Jingke QGM-65 Three-roll grinder are treated with Cr12 steel for enhanced protection, and the anti-wear hardness reaches HRC52 °~ 58 °, and the surface roughness can reach 0.2~ 0.1.
