JENCO 3676 (set) pH oxidation reduction controller

JENCO3676 (set) pH oxidation reduction controller Measurement range is -0.00~14.00pH, pH resolution is 0.01pH, 3676 (set) is a pH oxidation reduction controller with automatic temperature compensation, and equipped with IP-600-10 (20 meters).
Model：
Certificate
Contact
Details SPEC OI

JENCO 3676 (set) pH oxidation controllerSPEC

JENCO 3676 (set) pH oxidation controllerDetails

JENCO 3676 (set) pH oxidation controllerPacking list

SKU
NB015313
PH range
-0.00~14.00pH
PH Measurement Accuracy
±0.01pH
Resolution
0.01pH
Power Supply
110或230VAC,50/60Hz
Dimensions
1/4DIN standard body, 96x96x119mm
Measurement range mV
-1999~1999mV
mV resolution
1mV
ORP Accuracy
±0.5%F.S.
Current output range
4~ 20M isolated current output
Insulation Voltage/maximum load
500VDC/550Ω
Relay Control Output/Maximum Load
System ON/OFF control/2.5A/230VAC
opening size
92x92mm
Shop Accessories
pH electrode, ORP electrode, mounting bracket, sealing box
Display
LED display
3676 (set)
pH oxidation controller

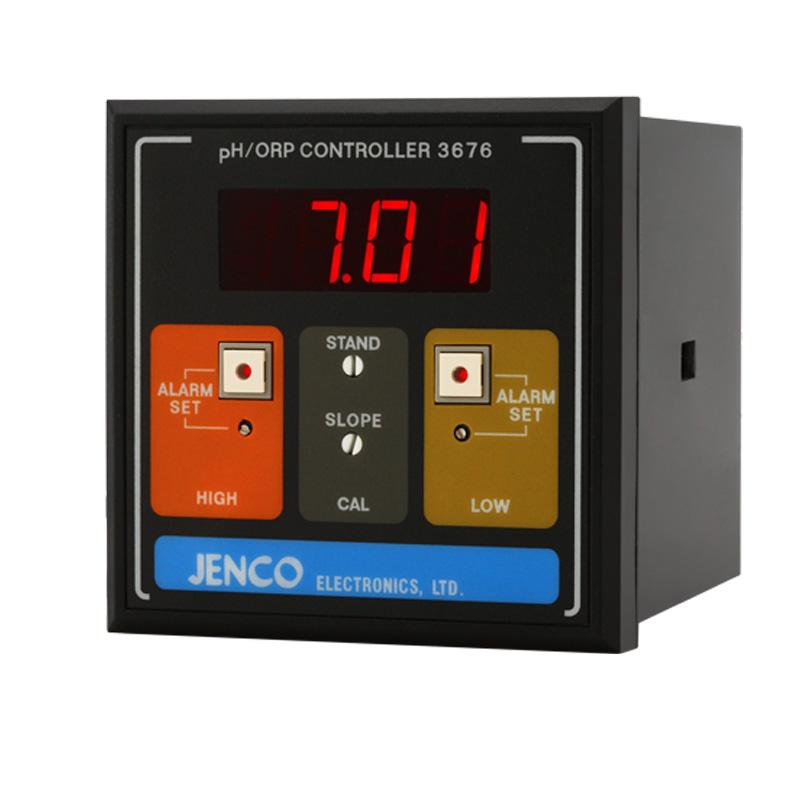

JENCO 3676 (set) pH oxidation reduction controller Picture

Introduction

The panel is equipped with dual SPDT high-low relays for pH/ORP controller/transmitter, which can be manually set and calibrated by potentiometer. 4-20mA current output, externally selectable pH or ORP. Big red LED display, BNC connector, antenna lead lug, axial flow square. This instrument requires a Pt-100 ATC or analog resistor for temperature. The power supply used is 115/230 AC.

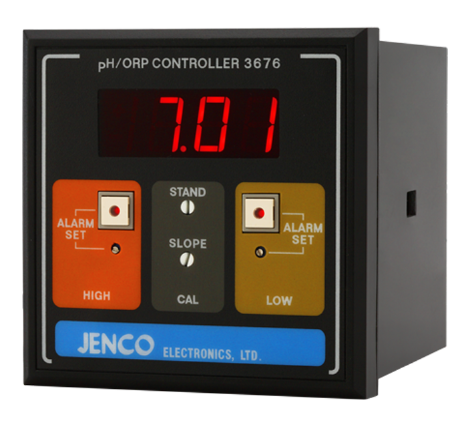

Ren's JENCO 3676 (set) pH redox controller

Features

  1. Isolated 4-20mA output

  2. Double closed relay

  3. Large LCD display

  4. Automatic temperature compensation

  5. 115VAC/230VAC operation

  6. 1/4 DIN housing

  7. Low-strength solid-state design

  8. Adjustable control of the output current span of the front panel

  9. The front panel selects and switches between acid and alkali liquids

  10. The front panel high-low relay format selection switch

  11. With IP-600-10 (20 meters)
