JINGKELIAN SF0.4 ground dispersion mixing multi-purpose machine, series rectifier motor stepless speed regulation

SF0.4

Sand grinding dispersion mixing multi-purpose machine

Motor Power 400W, speed range stepless constant speed regulation 0~8000rpm, lifting stroke 200mm, Power supply Voltage 200V, impeller diameter 50mm 60mm, grinding disc diameter 45mm 60mm.

 Overview of SF0.4 Grinding, Dispersing and Stirring Multipurpose Machine

JinKeLian adopts foreign new technology to design the SF0.4 grinding, dispersing  and mixing  multi-purpose machine, which is a multi-purpose equipment that can be used as a Grinder, disperser, and mixer at the same time. Speed line, the number directly displays the rotating shaft speed, and is equipped with a variety of grinding wheel blades and dispersing stirring plates. It is a satisfactory experimental equipment for coating and ink laboratory testing.

 SF0.4 Grinding, Dispersing and Stirring Multifunctional Function can adapt to the needs of different experiments in the laboratory. According to the displayed shaft speed, the relationship between the linear velocity of the stirring, dispersing and sanding blades, the viscosity of the material and the chemical reaction rate can be directly calculated, providing a basis for large-scale production. correct data.

SF0.4 Structural Composition of Grinding, Dispersing and Stirring Multipurpose Machine

1. The series-excited commutator motor is adopted, and the speed is adjusted steplessly through electronic constant force, and the number directly displays the rotational speed of the shaft. The sanding blisks and dispersing blades are directly connected with the rotating shaft by threads.

2. The cylinder adopts a jacket structure, which can pass cooling water and is made of stainless steel.

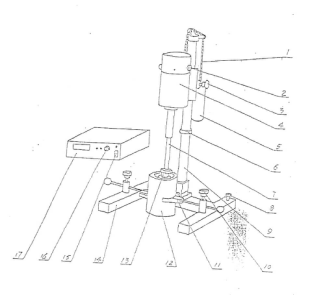

SF0.4 Grinding, dispersing and mixing multi-purpose machine parts name diagram

1. Chain

2. Electric brush

3. Motor locking bolt

4. Motor

5. Counterweight

6. Stop ring

7. Shaft

8. Horizontal adjustment bolt

9. Column

10. Gripper fixing bolt

11. Holder

12. Barrel

13. Sanding disc

14. Base

15. Power switch

16. Speed control knob

17. Governor

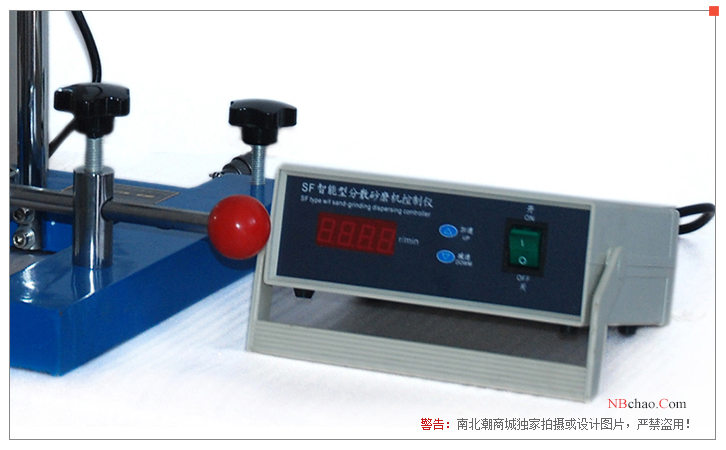

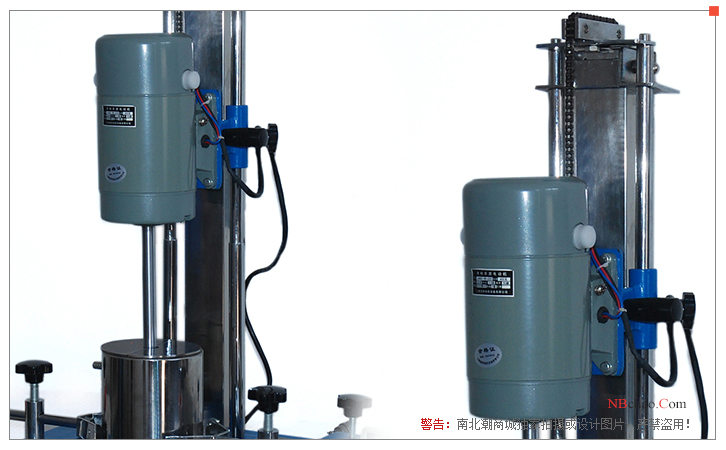

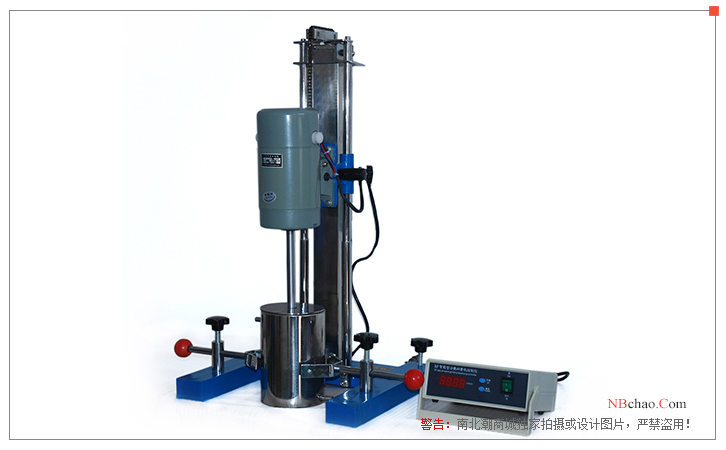

SF0.4 Grinding, Dispersing and Stirring Multipurpose Machine Display

Packing list：Sand grinding dispersion mixing multi-purpose machine x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
