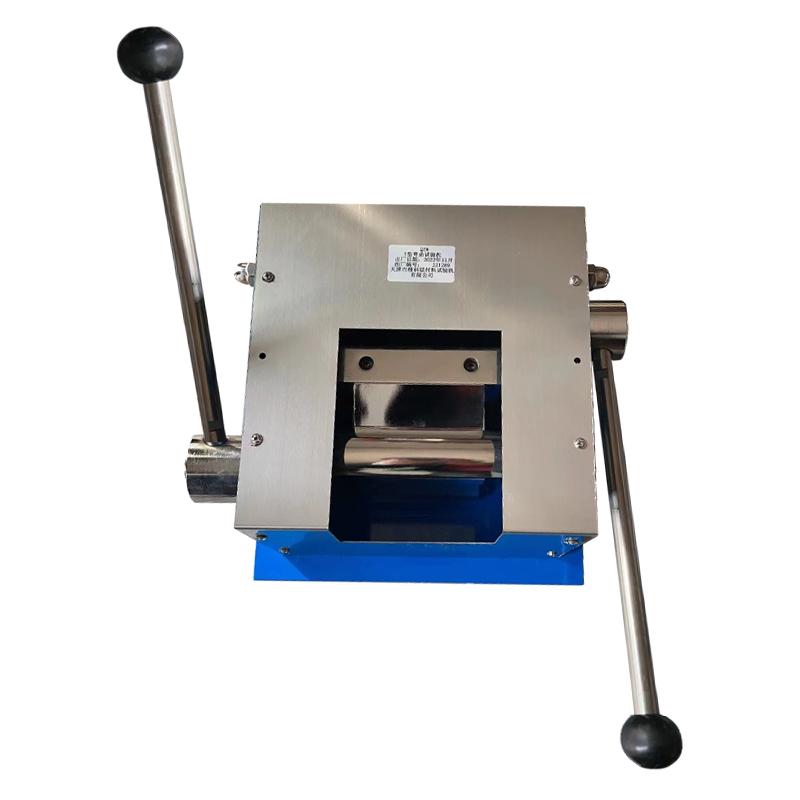

JINGKELIAN QZW T-bending test machine Color plate or strip film flexibility test

QZW

T-bend tester

According to GB/T1 2754-91 standard design, the test bending angle is less than 45 degrees, which is suitable for testing the bending test of color steel plates and steel strips and other coatings.

overview

QZW T-type bending test machine is a special T-type bending test machine designed by JinKeLian according to GB/T12754-91 standard for testing the flexibility of coating films. It has a great reference for the application of product coating formulation screening, and the test is accurate. . The test bending angle of the QZW T-type bending test machine is less than 45 degrees, which is suitable for bending tests of coatings such as colored steel plates and steel strips.

structure name

1. Bottom plate and left and right side plates;

2. Gear pair and crank lifting mechanism;

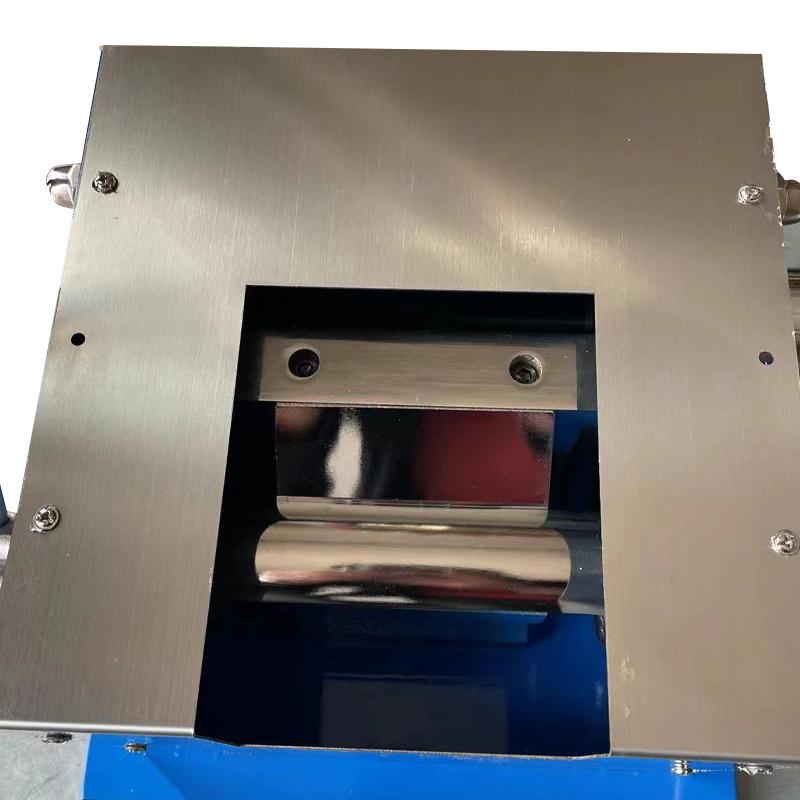

3. Triangular bending sub-level fast;

4. Square rotating and stacking blocks;

5. Composition of guard plate and handle.

Principle

By turning the left handle first, the square bending block presses the bent piece and forms a shape with an angle of <45°; then turns the right handle to drive the crank lifting mechanism to make the triangular bend rise or fall quickly, so that the test piece is clamped or Press it down to form a T-shaped bend.

Packing list：T-bend tester x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
