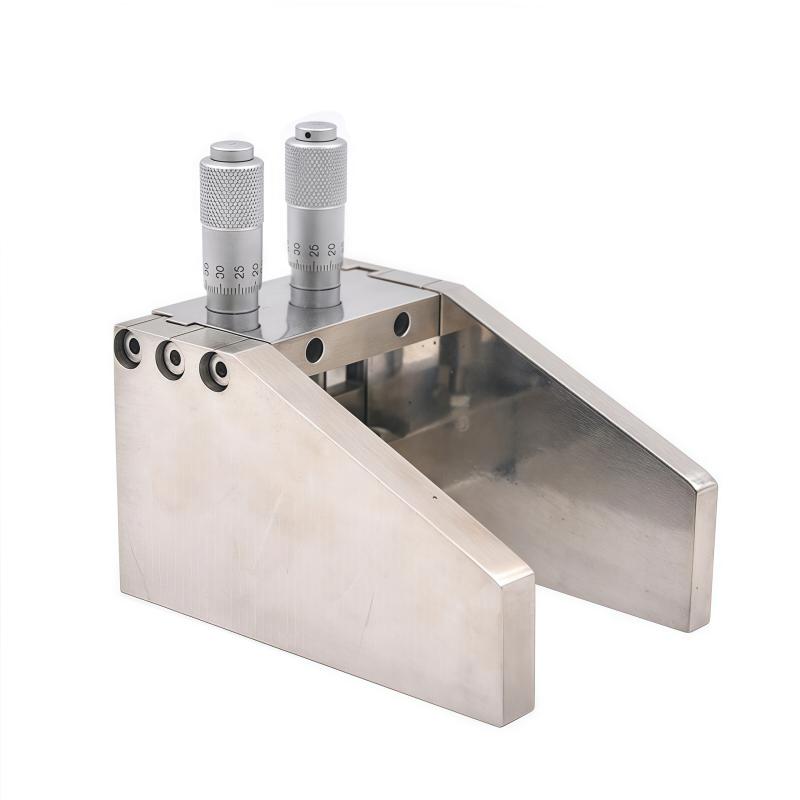

JINGKELIAN KTQ-50 Micrometer Film Applicator application width 50mm Coated Film Applicator
SEAdjustable Film Applicator, 3500 μ m large range, 10 μ m sub-scale, can be prepared for different film thickness coatings, stainless steel material, wear and corrosion resistance, easy to carry.
$226.00/set
PromotionLoading...
Coupon
Model：
KTQ-50
Similar products
-
MODERNER KTQ-150 adjustable Applicator KTQ Film Applicator 0~5mm/15cm -
MODERNER KTQ-200 adjustable Applicator 0~5mm/20cm -
JINGKELIAN KTQ-100 adjustable Coating Applicator application width of 100mm$ 249.00SE -
JINGKELIAN KTQ-200 adjustable laboratory Film Applicator application width of 200mm$ 288.00SE -
KTQ-ⅱ 55mm Micrometer Film Applicator YONGLIDA Effective application width 55mm$ 344.00SE
JingKeLian KTQ-50 Adjustable Coating ApplicatorSPEC
JingKeLian KTQ-50 Adjustable Coating ApplicatorDetails
JingKeLian KTQ-50 Adjustable Coating ApplicatorPacking list
- SKU
- NB001539
- type
- Adjustable
- WFT
- 0 ~ 3500µm
- Application width
- 50mm
- precision
- ± 2μm
- material
- stainless steel
- size
- 120*115*105mm
- Net Weight
- 450g
KTQ-50
Adjustable Coating Applicator
Adjustable Film Applicator, 3500 μ m large range, 10 μ m sub-scale, can be prepared for different film thickness coatings, stainless steel material, wear and corrosion resistance, easy to carry.
Overview of KTQ Adjustable Film Applicator
JinKeLian adjustable Film Applicators are divided into 4 models, KTQ-I, KTQ-II , KTQ-III , and KTQ-IV according to the different coating widths, and the coating widths are 50mm, 100mm, 150mm, and 200mm respectively . The film coating accuracy of KTQ-I/II/III/IV adjustable Film Applicators is ±2μm, which can be freely adjusted in the film thickness range of 0~3500μm, and the gap of the scraper can be adjusted in units of 10 microns.
Application of KTQ adjustable Film Applicator
The adjustable Film Applicator can adjust the scraper below by adjusting the two differentiators above the Film Applicator up and down to control the gap, that is, the thickness of the final coating.

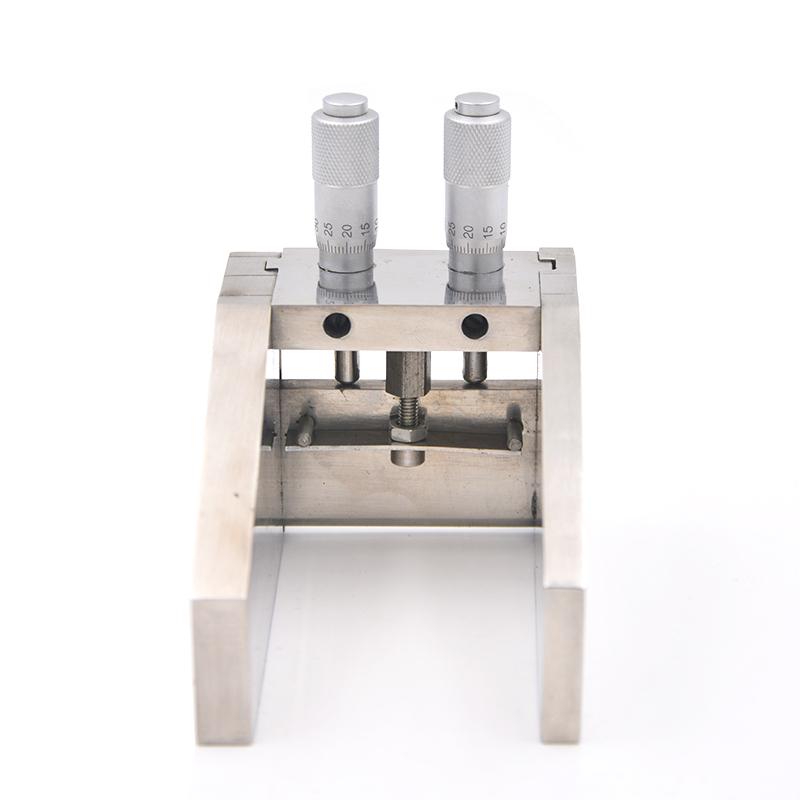

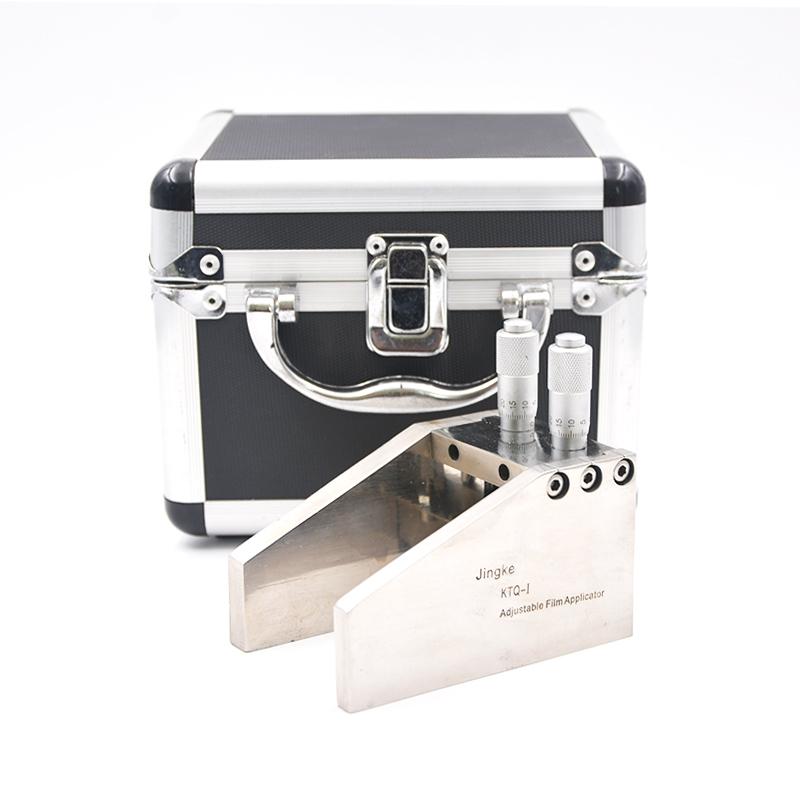

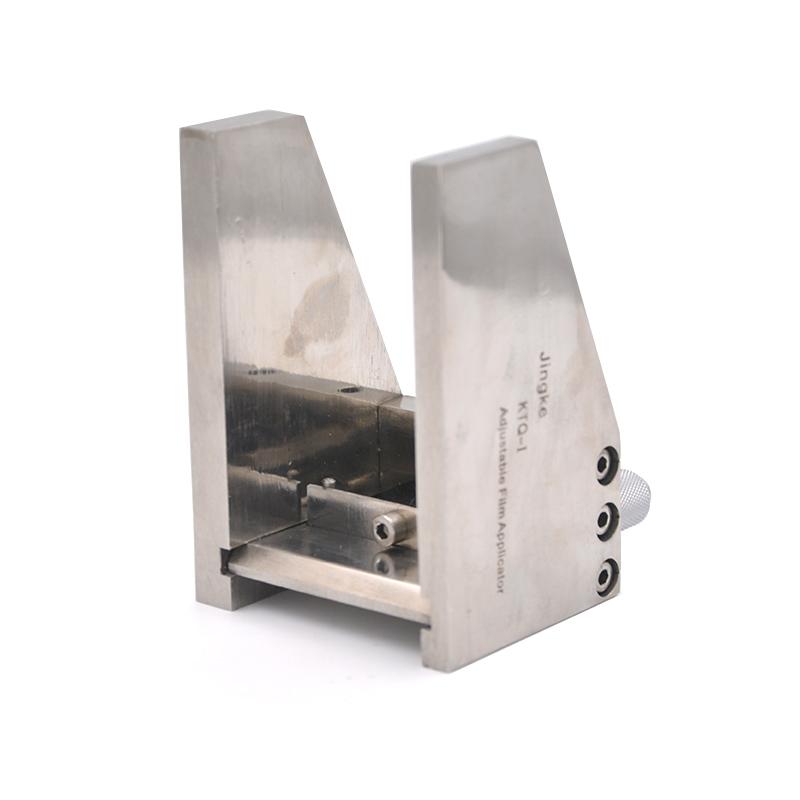

Real shot of KTQ adjustable Film Applicator
FAQ
QDoes this KTQ-50 substrate need to be 50mm?
A
The principle of the adjustable film applicator is the gap film, and the legs at both ends need to be perpendicular to the horizontal plane. Therefore, the width of the film substrate needs to be greater than the width of the coating applicator itself.
QIs this adjustable coating applicator GB/T9755 compliant?
A
The adjustable coating applicator is suitable for GB/T9755, please consult customer service for detailed application definition
QWhat is the difference between Micrometer Film Applicators?
A
Hello, both brands are good domestic brands. You can go to the relevant product page to take a look and choose the one that suits you better. Thank you for your consultation.
QDoes the Micrometer Film Applicator have a limited film thickness range?
A
Hello, this KTQ Micrometer Film Applicator can be adjusted in the film thickness range of 0~ 3500 microns.
Standard
- 1GB/T 22374-2018《Floor coating》
- 2GB/T 1727-2021《General methods for preparation of coating films》
- 3GB/T 7044-2022《Colour carbon black》
- 4HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 5HG/T 3355-2003《Various colour nitrocellulose primer》
- 6HG/T 3951-2007《Water based colorants for architectural coatings》
- 7GB/T 9755-2014《Synthetic resin emulsion coatings for exterior wall》
- 8GB/T 11175-2002《Testing methods for synthetic resin emulsions》
- 9JB/T 7663.2-2007《Technical conditions for positive displacement compressor painting》
- 10GB 1727-1992《Paint film general preparatory method》
