JINGKELIAN DM-III putty responsiveness Tester for measuring the sanding performance of undercoated putty

SE
Measuring the wear resistance performance of undercoat putty, according to GB/T1770-2008 design, the number of strokes is read by the counter, and the sanding performance of the undercoat putty can be evaluated according to the load weight, the number of strokes and the degree of abrasion.
$919.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI

JingKeLian DM-III Putty response TesterSPEC

JingKeLian DM-III Putty response TesterDetails

JingKeLian DM-III Putty response TesterPacking list

SKU
NB001540
Friction speed
0~135cpm
friction load
570±15g
Power
220V 50Hz
power
60W
Overall Dimensions
310*270*355mm
Weight
About 25kg
test stroke
155mm
Set number range
0~9999 (round-trip counting)
Actual number of frictions
Set the number of times multiplied by 2
sample specification
Tinplate 200 * 80δ = 0.3~ 1.5mm
Overall Dimensions
250*90mm
Additional Weight
50±3g、100±4g、200±7g
DM-III
Putty response Tester
Measuring the wear resistance performance of undercoat putty, according to GB/T1770-2008 design, the number of strokes is read by the counter, and the sanding performance of the undercoat putty can be evaluated according to the load weight, the number of strokes and the degree of abrasion.

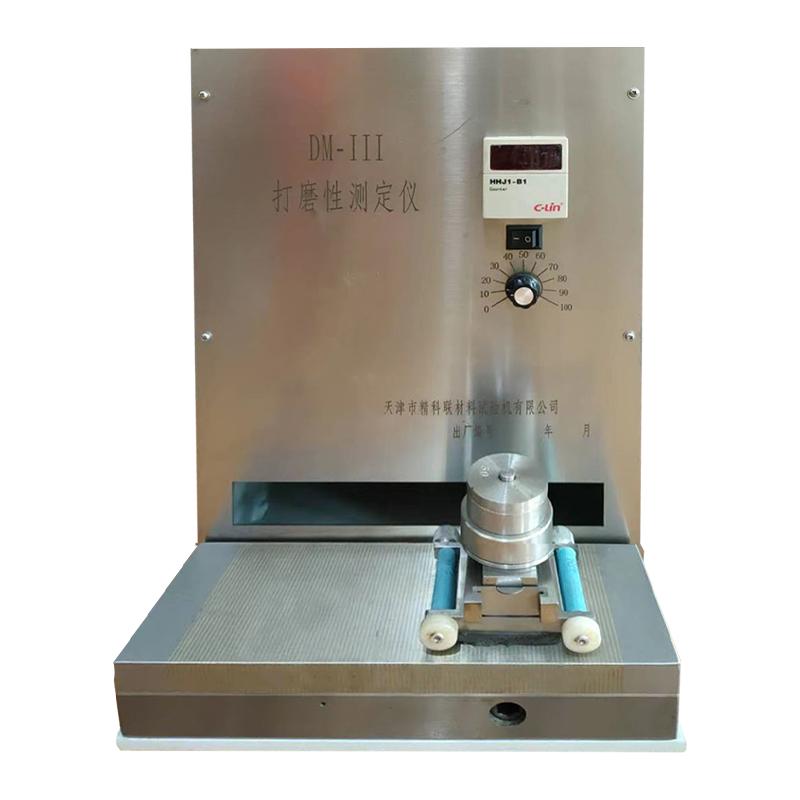

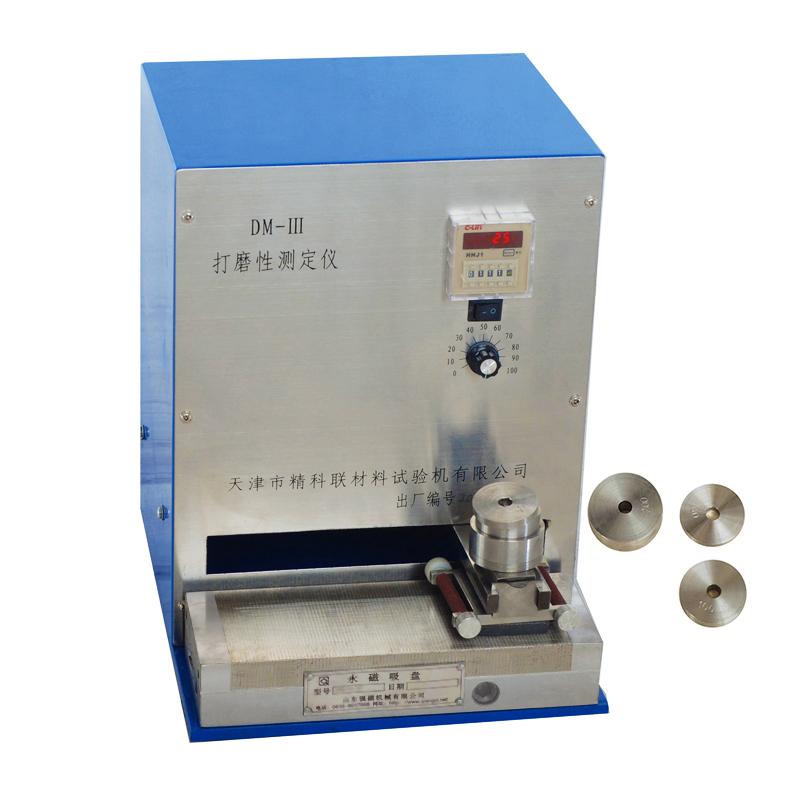

JINGKELIAN DM-III putty responsiveness Tester for measuring the sanding performance of undercoated putty Picture

performance overview

JinKeLian DM-III Putty Response Tester is a new type of paint testing instrument for measuring the wear resistance of primer putty. Designed according to the provisions of "Putty Film Response Test Method", DM-III putty Tester has the function of stepless speed regulation, automatic counting, and the number of times can be set. The rubbing speed is 0~155 times, and the test stroke length is 155mm. .

Principle

The primer putty sample to be measured is polished back and forth, and the number of times of application is read by the counter. According to the load weight, the number of times of application and the degree of wear, the abrasion resistance of the primer putty can be evaluated.



FAQ
QI want to test the wear resistance of putty, what instrument should I choose?
A DM-III putty responsiveness tester is specially designed to determine the wear resistance performance of primer putty, which conforms to GB/T1770-2008 standard, can simulate the actual sanding process, and accurately evaluate the sanding resistance of putty by counting and loading weight.
QWhat scenarios is this instrument commonly used in paint testing?
A It is often used in paint production and Quality control, such as testing the wear resistance performance of building putty or primer, to ensure that the product can withstand repeated sanding after construction and is not easily damaged, to help improve the paint mass.
QWhat instrument should I use to test the abrasion resistance of putty?
A This Putty Abradability tester, which is specially designed according to the national standard GB/T1770-2008, can simulate the actual sanding process, and accurately evaluate the abrasion performance of putty through automatic counting and adjustable speed.
QDo you have the putty responsiveness tester required by GB/T 23455 standard?
A This DM-III putty responsiveness tester will do.
QWhat are the requirements of the putty response tester for the test sample?
A Hello, it is recommended to use 200x80mm tinplate, Film thickness is 0.3~ 1.5mm.
