AoLongXingDi HR-150D(S) Simple digital display electric Rockwell Hardness Tester Specifications

Search

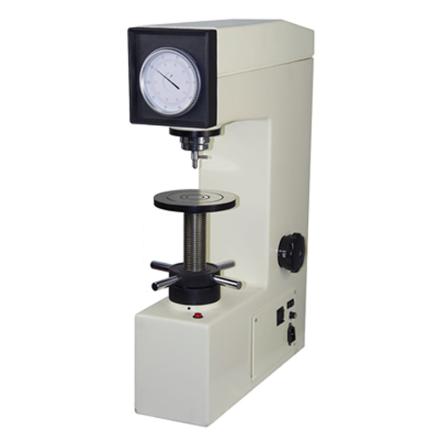

AOLONGXINGDI HR-150DT Simple digital display electric Rockwell Hardness Tester

Brand：AoLongXingDi

Model：HR-150D(S)

Name：Simple digital display electric Rockwell Hardness Tester

DetailsContact
Specifications
initial test force 98.07N（10kgf）
Total test force 588.4N(60kgf)、980.7N(100kgf）、1471N(150kgf)
Indenter specification Diamond conical Rockwell indenter, φ 1.5875mm ball indenter
Rockwell scale HRC、HRA、HRB、HRD、HRE、HRF、HRG、HRH、HRK
test range HRA:20-88、HRB:20-100、HRC:20-70，HRD:40-77、HRE:70-100、HRF:60-100，HRG:30-94、HRH:80-100、HRK:40-100
Hardness value reading method digital display
execution standard GB/T 230.2 ISO 6508-2 and ASTM E18
Maximum allowable height of specimen 170mm
Distance from the center of the indenter to the fuselage 135mm
Power Supply AC220V+5%、50~60Hz
Dimension 500*250*700mm
Host Weight 75Kg
Packing list
Machine X1, diamond Rockwell indenter X1, large flat test bench X1, V-type test bench X1, φ 1.5875mm steel ball indenter X1, medium test bench X1, rockwell hardness block X3, Xiaoping test bench X1, fuse X2, weight X3, power cord X1, manual X1, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15403/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
