SMTMF HR-150H Height Rockwell Hardness Tester Initial test force 98.07N

SMTMF HR-150H Rockwell Hardness Tester adopts manual loading and unloading test force mechanism, suitable for workshop and laboratory testing Hardness, HR-150H Rockwell Hardness Tester accuracy meets GB/T, ISO, ASTM and other standards, diamond cone Rockwell indenter, Hardness high.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF HR-150H Rockwell Hardness TesterSPEC

SMTMF HR-150H Rockwell Hardness TesterDetails

SMTMF HR-150H Rockwell Hardness TesterPacking list

SKU
NB015405
initial test force
10kgf (98.07N)
test force
60kgf、100kgf、150kgf（588N、980N、1471N）
Indenter Specifications
Diamond conical Rockwell indenter, φ 1.588mm steel ball indenter
Rockwell scale
HRA、HRB、HRC
test range
HRA:20-88、HRB:20-100、HRC:20-70
add and uninstall method
Via afterburner lever
show
Dial Display Hardness Value
Interface
none
execution standard
GB/T230.2、ISO 6508-2、ASTM E18
Specimen placement
Outer surface placement
Maximum height of specimen
420mm
Distance from the center of the indenter to the fuselage
165mm
Dimension
485*240*865mm
Host Weight
95Kg
HR-150H
Rockwell Hardness Tester
SMTMF HR-150H Height Rockwell Hardness Tester Initial test force 98.07N Picture

Introduction

The new design HR-150H heightened manual Rockwell Hardness Tester adopts manual loading and unloading test force mechanism, and the pointer directly reads the hardness value, which has good economy and practicability. It has high sensitivity, stability, and is suitable for workshops and laboratories

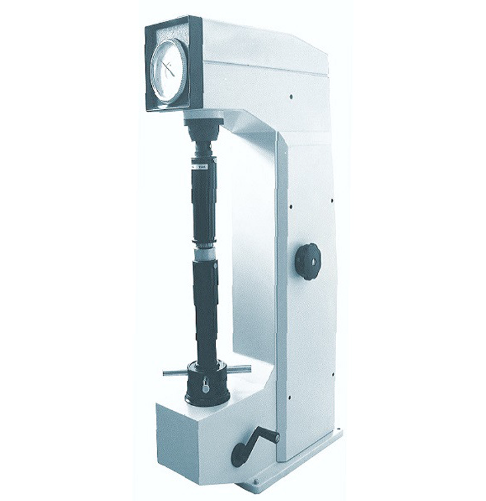

Oron Stardy HR-150H plus High Rockwell Hardness Tester

Features

●European and American customized casting shell, good rigidity

●The accuracy reaches 0.5HR

● Dial direct reading, HRA, HRB, HRC and other rulers

● Mechanical manual test process, no electrical control required

●External test force selection knob, easy to operate

●Precision oil pressure buffer, loading speed adjustable

●Wide range of application, easy to operate, good economy and practicability

●Accuracy in accordance with GB/T230.2 ISO 6508-2 and American ASTM E18

●The standard configuration is complete, which can meet the test requirements of all scales


namequantitynamequantity
Diamond Rockwell indenter1 pcφ1.5875mm ball indenter1 pc
weight1 setLarge, medium and V-shaped test benches1 each
Hardness block3 piecesProduct Certificate1 serving
Instruction manual for the product1 book


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
