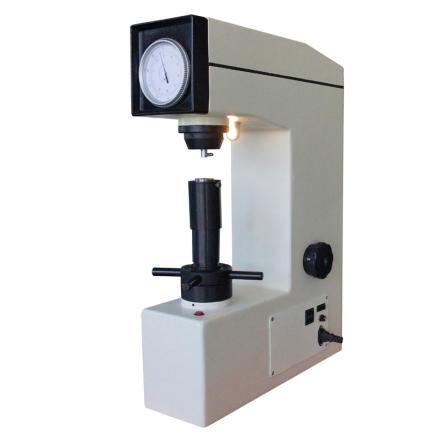

AoLongXingDi HRM-45D(S) Simple digital display electric surface Rockwell Hardness Tester Specifications
Search
Brand：AoLongXingDi
Model：HRM-45D(S)
Name：Simple digital display electric surface Rockwell Hardness Tester
Specifications
| initial test force | 3kgf，29.42N |
| test force | 15kgf、30kgf、45kgf，147.1N、294.2N、441.3N |
| Hardness testing range | HR15N：70-94、HR30N：42-86、HR45N：20-77； HR15T：67-93、HR30T：29-82、HR45T：10-72 |
| Hardness reading | digital display |
| Indenter specification | Diamond cone Rockwell indenter, φ 1.5875mm ball indenter |
| Load time | 1~30s |
| execution standard | GB/T230.2 ISO 6508-2、ASTM E18 |
| Maximum height of specimen | 165mm |
| Head to wall distance | 135mm |
| Dimension | 500*250*700mm |
| Power Supply | AC220V+5%、50~60Hz |
| Host Weight | 75kg |
Packing list
Whole machine X1, diamond Rockwell indenter X1, Hardness block X4, Xiaoping test bench X1, weight X3, diameter 1.5875mm steel ball indenter X1, large flat test bench X1, V-shaped test bench X1, fuse X2, power cord X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15410/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
