AOLONGXINGDI HB-3000E Electronic Brinell Hardness Tester specimen maximum height 220mm

AOLONGXINGDI HB-3000E electronic Brinell Hardness Tester has a maximum height of 220mm and a minimum Measurement unit of 0.005mm. HB-3000E is an electronic Brinell Hardness Tester with closed-loop Sensors loading, electronic Control system and 10-level test force.
Model：
Certificate
Contact
Details SPEC CAT

AoLongXingDi HB-3000E Brinell Hardness TesterSPEC

AoLongXingDi HB-3000E Brinell Hardness TesterDetails

AoLongXingDi HB-3000E Brinell Hardness TesterPacking list

SKU
NB015416
Brinell scale
HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、HBW10/250、HBW10/500、HBW10/1000
test force
62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf（612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N）
Maximum height of specimen
220mm
Measurement unit
0.005mm
Load time
5~60s
Hardness testing range
8~650HBW
Microscope magnification
20X
execution standard
ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2
Distance from the center of the indenter to the body
135mm
Hardness reading
look-up table
Power Supply
AC220+5%、50~60Hz
Dimension
550*236*750mm
Host Weight
130kg
HB-3000E
Brinell Hardness Tester

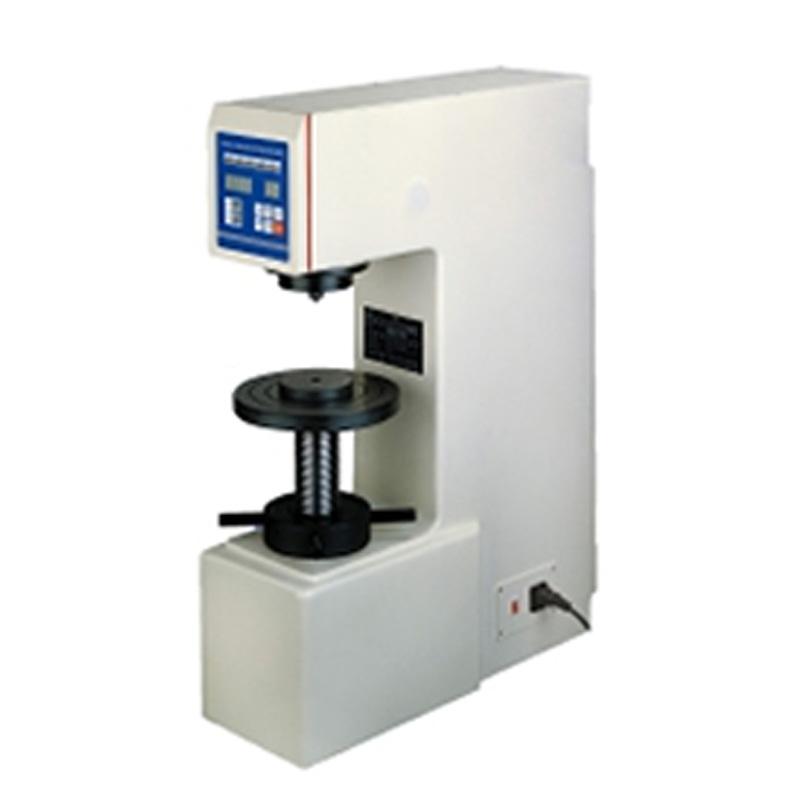

AOLONGXINGDI HB-3000E Electronic Brinell Hardness Tester specimen maximum height 220mm Picture

Introduction

Brinell hardness is one of the important indicators of mechanical properties of materials, and hardness test is an important means to judge the quality of metal materials or product parts. Hardness refers to the ability of a material to resist the pressure of another object that does not receive, under certain conditions. The greater the resistance, the higher the hardness, and vice versa, the lower the hardness.

Features

HB-3000E electronic Brinell Hardness Tester adopts closed-loop sensor loading, electronic control system, and has 10 levels of test force. This machine has the characteristics of high precision, high repeatability and stability, and easy operation

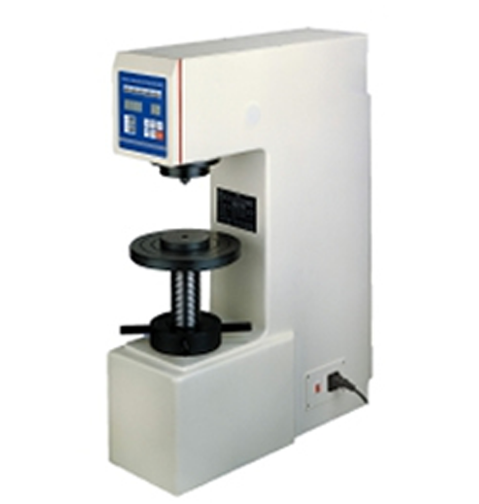

Oron Star Di HB-3000E Electronic Brinell Hardness Tester

Scope of application

It is suitable for the hardness determination of cast iron, steel, non-ferrous metals and soft alloys and other materials, as well as the hardness determination of some non-metallic materials such as hard plastics and bakelites.
