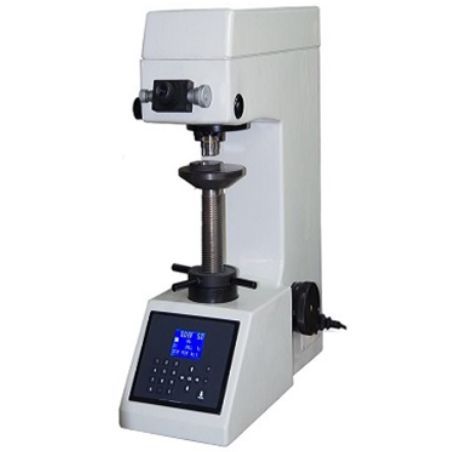

AOLONGXINGDI HV-50 Vickers Hardness Tester up to 490N

HV-50

Vickers Hardness Tester

Introduction

HV-5/10/30/50 Vickers Hardness Tester is a basic type of microHardness Tester, the machine adopts LCD display, through the operation panel can be hardness scale HV or HK each level of test force, load holding time to select, optical measurement system. The intensity of the measuring light source can be adjusted by the input of the panel, and the test force value and holding time can be displayed, etc., which is easy to use, and the D1 and D2 values measured by the eyepiece can be directly entered during operation, and the hardness value is directly displayed on the LCD display, with high measurement accuracy

Features

●Selection of Vickers hardness scale for small load

●The LCD screen displays the conversion of the test force synchronously

●The indentation diagonal length is typed through the panel, so that the hardness indication value is directly read out on the LCD screen

●Depending on the material, the hardness can be selected as a conversion ratio

●Adopt adjustable cold light source measurement system, etc

Scope of application

ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals; glass, ceramics, agate, gemstones, thin plastics, etc.; Hardness testing of the depth and gradient of the carbonized layer and the quenched hardened layer.

Packing list：Whole machine X1, weight X4, mid-level test bench X1, horizontal adjustment screw X4, 10X micrometer eyepiece X1, spare fuse X2, large flat test bench X1, V-shaped test bench X1, power cord X1, Vickers Hardness block X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
