AOLONGXINGDI HVS-5 digital display Vickers Hardness Tester test force up to 49N

The AOLONGXINGDI HVS-5 digital display Vickers Hardness Tester has a test force of 2.94N, 4.9N, 9.8N, 19.6N, 29.4N, 49N and its minimum test unit is 0.01 µm. The HVS-5 is a digital display Vickers Hardness Tester with a large display LCD display, with RS232 interface.
Model：
Certificate
Contact
Details SPEC CAT

AoLongXingDi HVS-5 Vickers Hardness TesterSPEC

AoLongXingDi HVS-5 Vickers Hardness TesterDetails

AoLongXingDi HVS-5 Vickers Hardness TesterPacking list

SKU
NB015431
Measurement unit
0.01µm
test force
0.3kgf、0.5kgf、1kgf、2kgf、3kgf、5kgf（2.94N、4.9N、9.8N、19.6N、29.4N、49N）
Conversion ruler
Rockwell, Brinell
execution standard
ISO 6507、ASTM E92、JIS Z2244、GB/T4340.2
Test force application method
Automatic loading and unloading test force
indenter objective lens switching
manual
Microscope magnification
100X (observation), 200X (test)
Test force holding time
5~60s
Interface
LCD display readout, built-in printer and RS-232 interface
Maximum height of specimen
160mm
Distance from the center of the indenter to the machine wall
135mm
Power Supply
AC220V+5%、50-60Hz
Dimension
650*540*270mm
Host Weight
About 40Kg
HVS-5
Vickers Hardness Tester

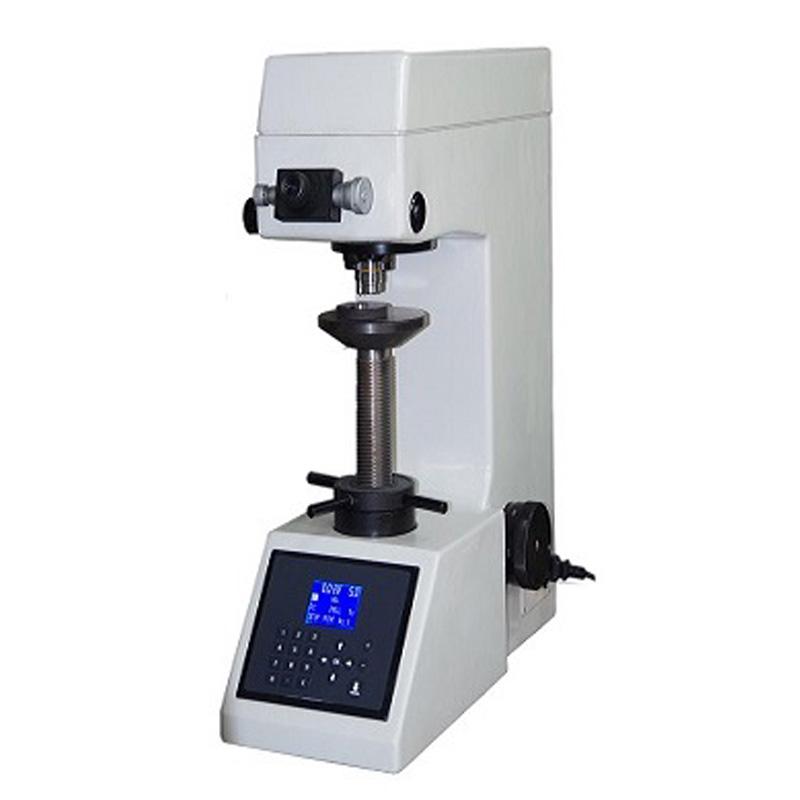

AOLONGXINGDI HVS-5 digital display Vickers Hardness Tester test force up to 49N Picture

Introduction

HVS-5/10/30/50 digital display Vickers Hardness Tester adopts large display LCD display, the operation interface adopts a menu-type structure, you can select the hardness scale HV or HK on the operation panel, and the hardness value of the test is automatically calculated and displayed. Various hardness values can be converted to and from each other

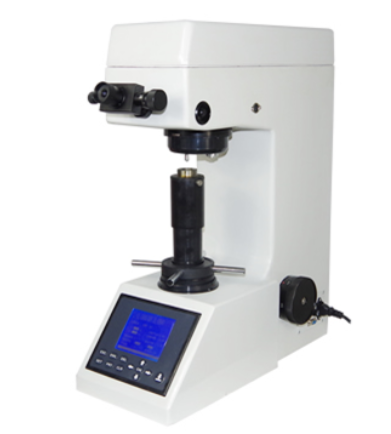

Oron Star Di HVS-5 Digital Vickers Hardness Tester

Features

●Accurate positioning of test points

●It has the advantages of good reliability, high operability and convenient measurement

●Select the test method and hardness comparison table, holding time,

●The LCD large screen display can display the test method, test force, measured indentation length, hardness value, test force holding time measurement times, and can type in the year, month, date, test results and data processing, etc

● Connect with computer through printer output, RS232 interface
