China

AOLONGXINGDI HVS-50Z digital display automatic turret Vickers Hardness Tester

The minimum test unit of the AOLONGXINGDI HVS-50Z digital display automatic turret Vickers Hardness Tester is 0.01 µm, and the maximum height of the specimen is 160mm. The HVS-50Z digital display automatic turret Vickers Hardness Tester has the ability to switch between the indenter and the objective lens during testing, and the test point is accurately and automatically positioned.
Model：
Certificate
Contact
Details SPEC CAT

AoLongXingDi HVS-50Z Digital automatic turret Vickers Hardness TesterSPEC

AoLongXingDi HVS-50Z Digital automatic turret Vickers Hardness TesterDetails

AoLongXingDi HVS-50Z Digital automatic turret Vickers Hardness TesterPacking list

SKU
NB015439
Measurement unit
0.01µm
test force
1kgf、5kgf、10kgf、20kgf、30kgf、50kgf（9.8N、49N、98N、196N、294N、490N）
Conversion ruler
Rockwell, Brinell
execution standard
ISO 6507、ASTM E92、JIS Z2244、GB/T4340.2
Test force application method
Automatic loading and unloading test force
indenter objective lens switching
manual
Microscope magnification
100X (observation), 200X (test)
Test force holding time
5~60s
Interface
LCD display readout, built-in printer and RS-232 interface
Maximum height of specimen
160mm
Distance from the center of the indenter to the machine wall
135mm
Power Supply
AC220V+5%、50-60Hz
Dimension
650*540*270mm
Host Weight
About 40Kg
HVS-50Z
Digital automatic turret Vickers Hardness Tester

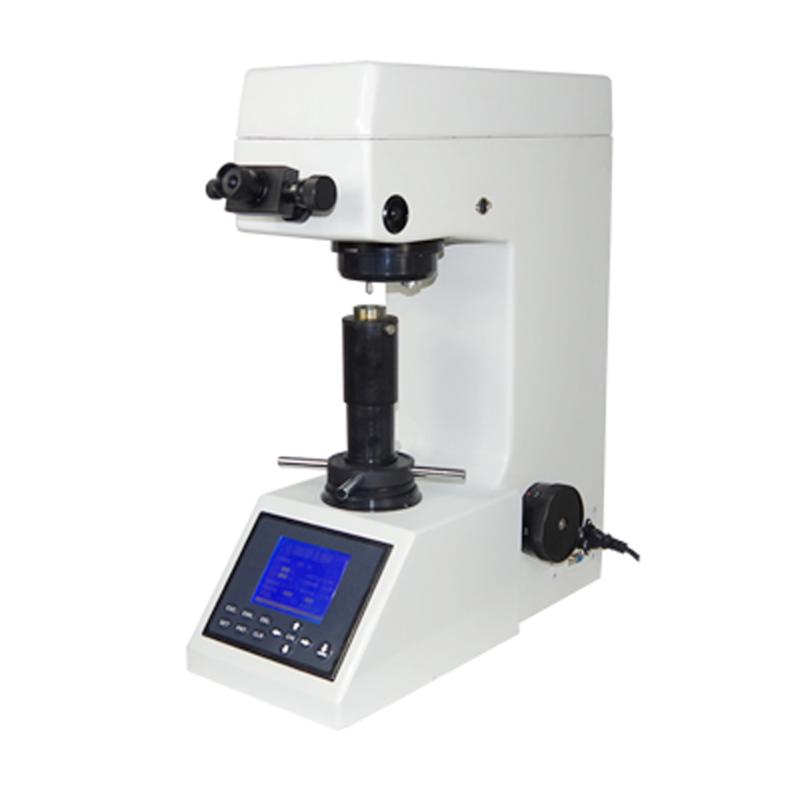

AOLONGXINGDI HVS-50Z digital display automatic turret Vickers Hardness Tester Picture

Introduction

HVS-5Z/10Z/30Z/50Z automatic turret digital display Vickers Hardness Tester adopts large display LCD display, the operation interface adopts a menu structure, you can select the hardness scale HV or HK on the operation panel, and the hardness value of the test is automatically calculated and displayed. Various hardness values can be converted to each other.

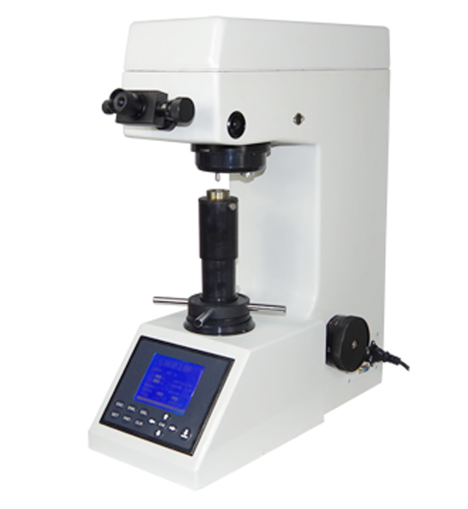

Aolongxingdi HVS-50Z Digital Display Automatic Turret Vickers Hardness Tester

Features

●It has the ability to switch between the indenter and the objective lens during the test

●The test point is automatically positioned accurately

●It has the advantages of good reliability, high operability and convenient measurement

●The LCD large screen display can display the test method, test force, measured indentation length, hardness value, and test force holding time

●The number of measurements, and the ability to type in the year, month, date, test results and data processing, etc

● Connect with computer through printer output, RS232 interface


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
