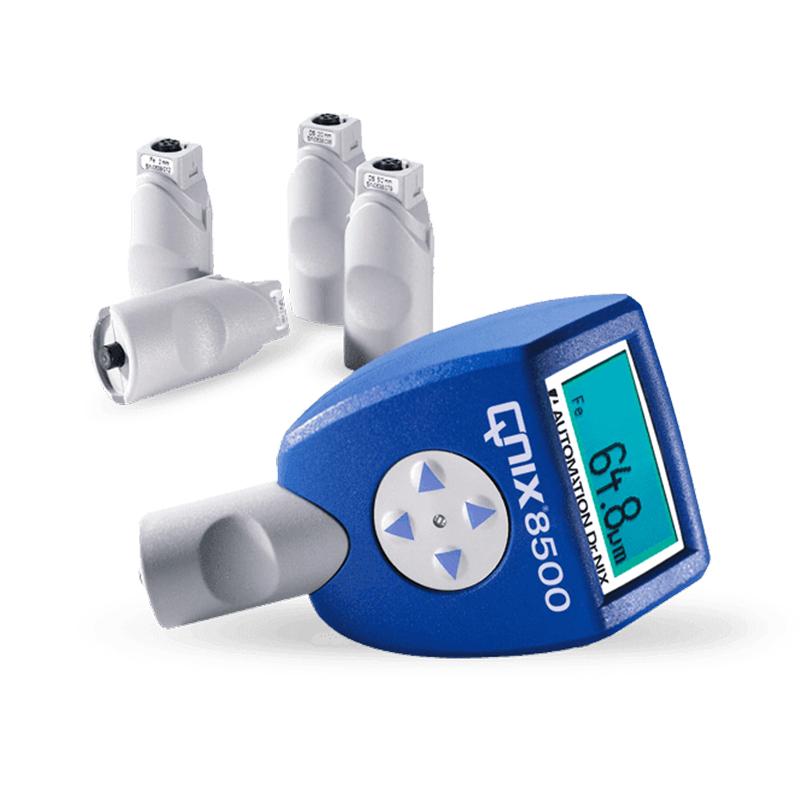

German Knicks QNix8500 Coating Thickness Gauge modular host, can adapt to various probes

Modularity adapts to different probes, and can also adapt to wireless probes; high-speed measurement 120 readings/minute; Memory capacity up to 30,000 times; no need to calibrate.
Contact
Details SPEC VIDEO CAT
Similar products

Qnix QNix8500 host Coating Thickness GaugeSPEC

Qnix QNix8500 host Coating Thickness GaugeDetails

Qnix QNix8500 host Coating Thickness GaugePacking list

SKU
NB001544
testing environment
Depending on the probe, it can be adapted to magnetic or nonmagnetic substrates
Measurement range
Determined by the probe
statistical function
MAX Maximum, MIN Minimum, Average, Standard deviation
resolution
0.1μm|1μm|0.01mm
probe
This machine does not contain a probe and needs to be purchased separately.
statistical function
MAX Maximum, MIN Minimum, Average, Standard deviation
Calibrated mode
One point calibrated, two point calibrated, zero calibrated
Data storage
100 Measured value * 1 batch
system language
German, English, French
Display screen
LCD liquid crystal display
supporting software
optional
Operating temperature
0~50℃
Storage temperature
-10~60℃
Unit display
μm/mils

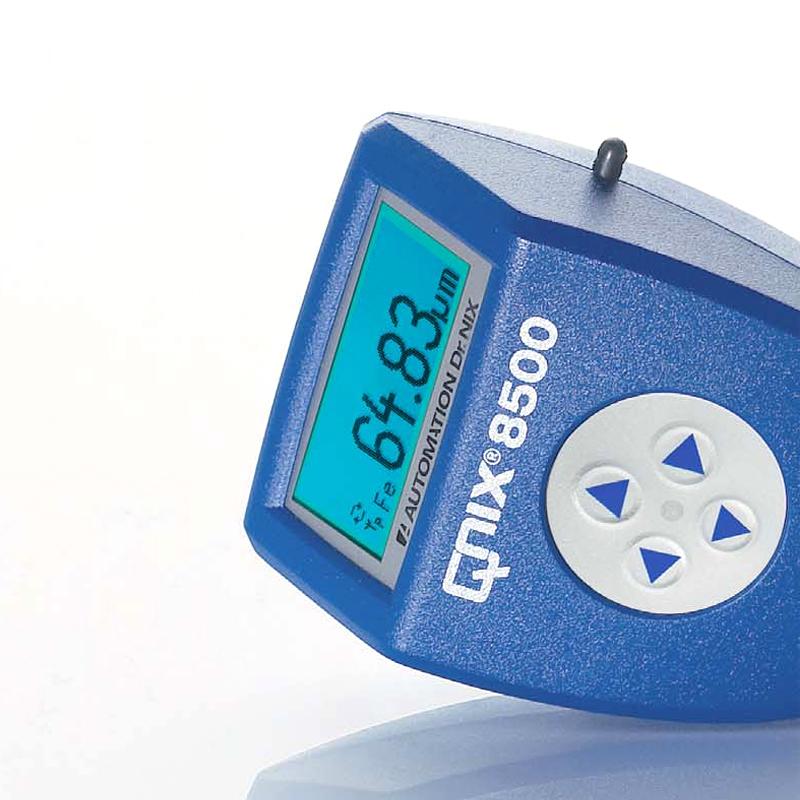

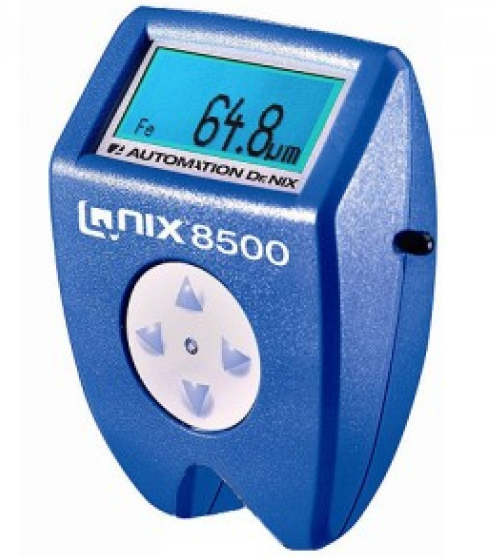

QNix8500 host
Coating Thickness Gauge
Modularity adapts to different probes, and can also adapt to wireless probes; high-speed measurement 120 readings/minute; Memory capacity up to 30,000 times; no need to calibrate.
German Knicks QNix8500 Coating Thickness Gauge modular host, can adapt to various probes Picture

The QNIX ® 8500 System - Coating Thickness Measurement is used in a wide range of applications:

  • Modular instrumentation system with interchangeable probes for a maximum measuring range of up to 5,000 μm

  • The thumb-sized wireless probe allows for use in hard-to-reach areas

  • Pen probes for small parts and thin coatings

  • High measurement speed (up to 120 readings/min)

  • Memory capacity up to 30,000 cycles and up to 200 batches

  • Software for statistical analysis and documentation

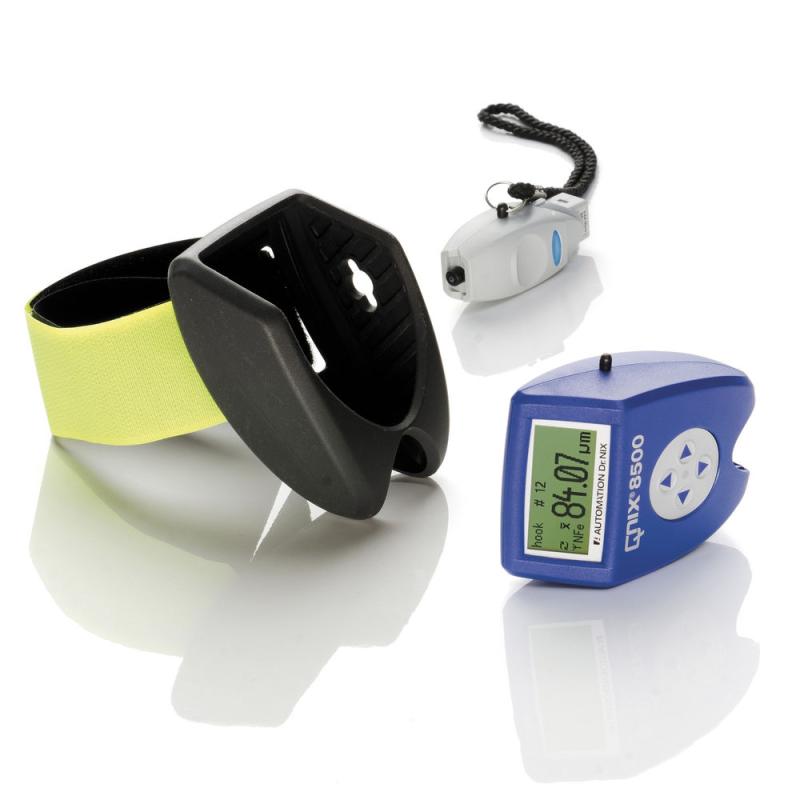

  • Optional protective rubber cover for increased vibration sensitivity


In addition, the QNix coating Thickness Gauge has the following advantages:

  • Easy to use

  • No calibration is required

  • High measurement accuracy

  • Long-lasting measuring probe with ruby tip

  • Made in Germany, boutique quality

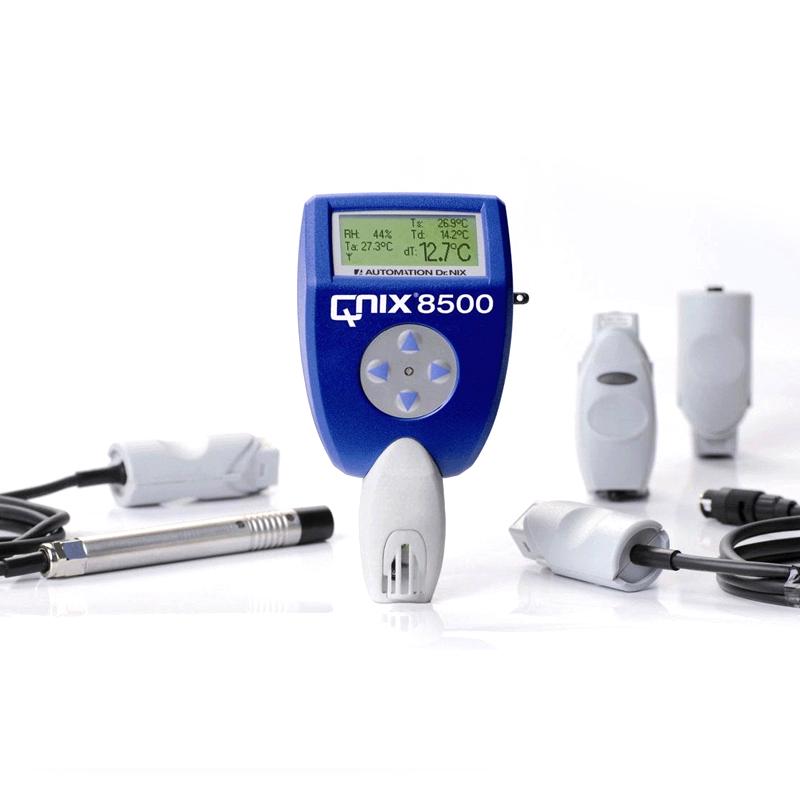

Probes are optional

probefe2mmFe iron-based probe (0-2000um)
probeRF2mmRF Iron-based Wireless Probe (0-2000um)
probefe5mmFe iron-based probe (0-5000um)
probeRF5mmRF Iron-based Wireless Probe (0-5000um)
probeNFe2mmNFe non-ferrous probe (0-2000um)
probeRF2mmRF Non-ferrous Wireless Probe (0-2000um)
probeFe/NFe2mmFe/NFe iron/non-iron/non-iron-based dual-purpose probes (0-2000um)
probeRF dual-purpose probe 2mmRF dual-purpose wireless probe (0-2000um)
probeFe/NFe5mm Fe/NFe Iron/Non-Iron/Non-Iron/Non-Ferrous Probes (0-5000um)
probeRF dual-purpose probe 2mmRF dual-purpose probe (0-5000um)
probeMI 0.5mmMI Slim Probe (0-500um)
fittingsProbe leadsProbe wire (the cable between the main unit and the probe)
fittingsDangleDangle (USB module for wireless transmission of computer data, transmission module for connecting host and computer)
fittingsComputer softwareComputer Software (System Processing Software)
FAQ
QWhich model of the Nix is used with a wireless probe?
A Hello, you can choose the QNix8500 basic model, which supports different probes, including wireless probes. The probe needs to be purchased separately.
QCan this Coating thickness gauge be applied to ASTMB499?
A OK
QCan the film thickness gauge QNix8500 test thin coating thicknesses below 500 microns?
A Hello, yes, you need an ultra-thin probe with MI 0.5mm, and the measurement Film thickness range is 0~ 500 microns.
