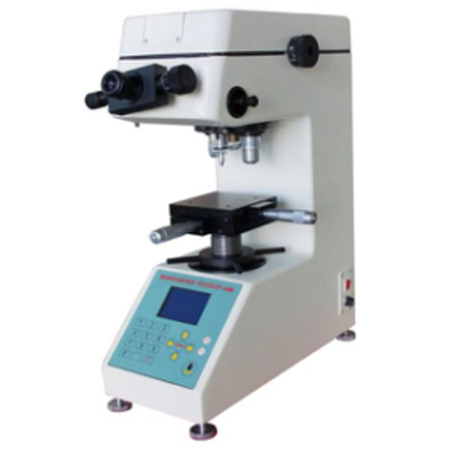

AOLONGXINGDI HVS-1000Z automatic turret digital display microHardness Gauge initial test force up to 9.8N

HVS-1000Z

Automatic turret digital Hardness Gauge

Introduction

HV-1000Z MicroHardness Tester is a new type of microscopic Vickers and Knoop hardness testing instrument using precision mechanical technology and optoelectronic technology.

    The machine is controlled by a microcomputer, and the intensity of the measuring light source can be adjusted through the soft key, and the test force holding time can be preset, which is displayed by LED. The machine adopts a unique indentation measurement conversion and a micrometer eyepiece to measure the reading mechanism at one time. It is easy to use and has high measurement accuracy.

Scope of application

It is suitable for measuring the microhardness of tiny, thin specimens, surface seepage coatings and other specimens, as well as measuring glass and ceramics. The microhardness of brittle materials such as agate and gemstone is a satisfactory hardness testing instrument for material research and testing by scientific research institutions, factories and quality supervision departments. Selection of HV and HK hardness scales

Features

 8-position knob, test force selection range: 10gf-1Kgf

 Optical system: analog digital eyepiece

 The eyepiece has a 10X magnification

 High-quality objective lenses for maximum viewing comfort

 Vertical LED lighting

 Adjustable optical path

 Dual-channel optical system

 Measurement confirmation key, mounted on the analog eyepiece

 Automatic switching of indenter and objective lens (automatic turret)

 The test point is automatically positioned accurately

 When operating, the D1 and D2 values measured by the eyepiece can be directly entered, and the hardness values will be directly displayed on the LCD display

 According to different materials, the hardness can be selected to convert the comparison

 Adopt adjustable cold light source measurement system, etc

 Selection of HV and HK hardness scales

 Optional HD CCD camera system, which can be installed before or after sale

Packing list：Machine X1, weight axis X1, cross test table X1, flat mouth clamping table X1, screw driver X2, level X1, power cord X1, weight X6, sheet clamping table X1, filament clamping table X1, horizontal adjustment screw X4, RS232 communication line X1, microscopic Vickers Hardness block X2, spare light bulb X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
