QNix handy Coating Thickness Gauge

Measurement range 20~500μm, error range +/- 5%, resolution 5μm, integrated design, magnetic nonmagnetic dual-use, very cheap.
Model：
Contact
Details SPEC

Qnix QNix handy Coating Thickness GaugeSPEC

Qnix QNix handy Coating Thickness GaugeDetails

Qnix QNix handy Coating Thickness GaugePacking list

SKU
NB001545
Measurement principle
Magnetic Induction + eddy Current
Measurement range
20~500μm
margin of error
±5%
resolution
5μm
Minimum measurement surface
Φ20mm
Minimum radius of curvature
Convex Fe 15mm/NFe 50mm; Concave Fe 30mm/NFe 50mm
probe
Integrated probe
Power Supply
2 * AA 1.5V battery
system language
Chinese
Display screen
LCD liquid crystal display
Weight
75G (including battery)
Dimension
80*56*35mm
Minimum measurement surface
20*20mm
Storage temperature
-10~60℃
temperature compensation
0~60℃
Probe material
ruby
QNix handy
Coating Thickness Gauge
Measurement range 20~500μm, error range +/- 5%, resolution 5μm, integrated design, magnetic nonmagnetic dual-use, very cheap.

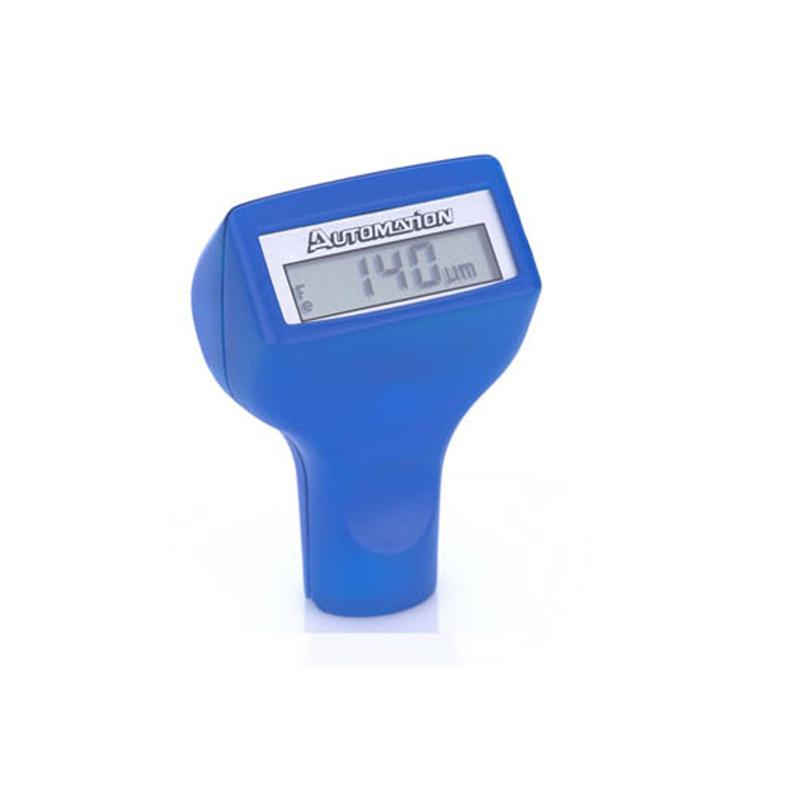

QNix handy Coating Thickness Gauge Picture

The handy Nix coating Thickness Gauge has an all-in-one design, magnetic and non-magnetic dual-use, and the price is very cheap. There are no buttons on the surface of Handy, the operation is very simple, the display accuracy is 5um, the measurement range is 20-500um, and it is suitable for use when the coating is thick and the accuracy requirements are not particularly accurate.

Benefits:

• No zeroing or calibration required

• One machine for two purposes

• Inexpensive

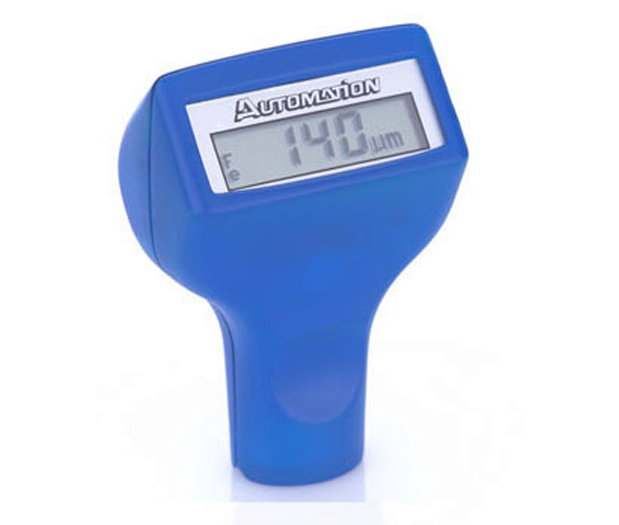

Illustration of the QNix handy coating Thickness Gauge from Nix, Germany

FAQ
QQNix handy Coating thickness gauge no button how to test?
A Hello, this thickness gauge is a simple one, no need to zero and calibrate, it can be used when turned on, and the probe can be tested on the measured object, which is suitable for situations where accuracy is not required.
QMeet ASTMB244 Coating thickness gauge
A QNix handy Coating thickness gauge, please refer to it.
QWhat is the minimum measurement area for the QNix handy Coating thickness gauge?
A Hello, the minimum test surface diameter is 20mm.
