Germany QNix4200 Integrated magnetic Induction Coating Thickness Gauge 3mm range

Range 0~3000 microns; integrated built-in iron-based probe, the probe material is ruby; no need to calibrate.
$652.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO
Similar products

Qnix QNix4200 Coating Thickness GaugeSPEC

Qnix QNix4200 Coating Thickness GaugeDetails

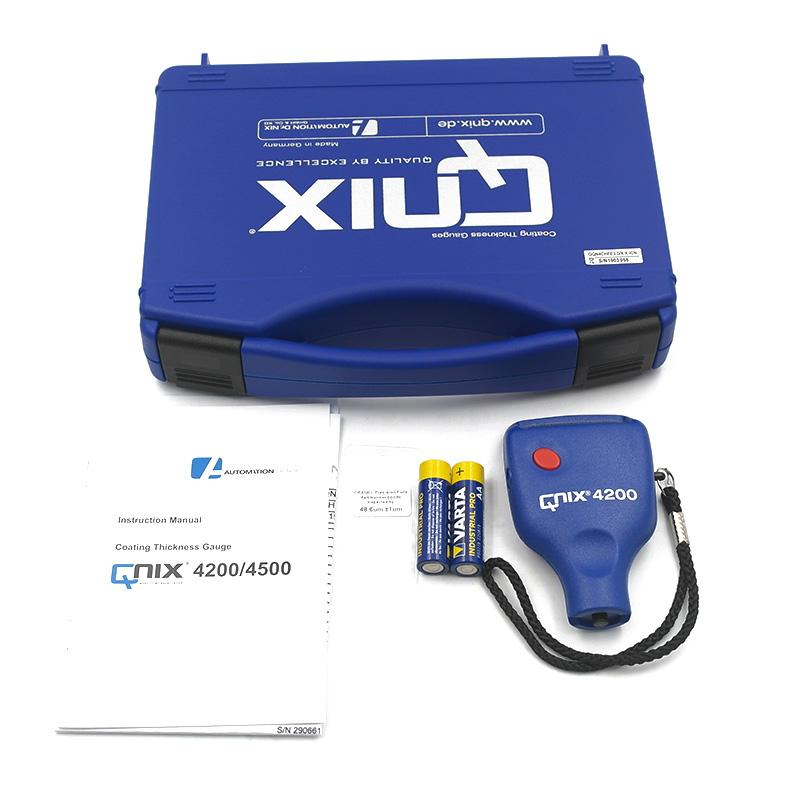

Qnix QNix4200 Coating Thickness GaugePacking list

SKU
NB001549
Measurement principle
magnetic Induction
Measurement range
0~3000μm
margin of error
±3%
resolution
0.1μm
Minimum measurement surface
Φ25mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.2mm
probe
Integrated probe
Power Supply
2 × 1.5V AA battery
Standards
DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091
Display screen
Graphic-LCD
Weight
105g
Dimension
100*60*27mm
QNix4200
Coating Thickness Gauge
Range 0~3000 microns; integrated built-in iron-based probe, the probe material is ruby; no need to calibrate.

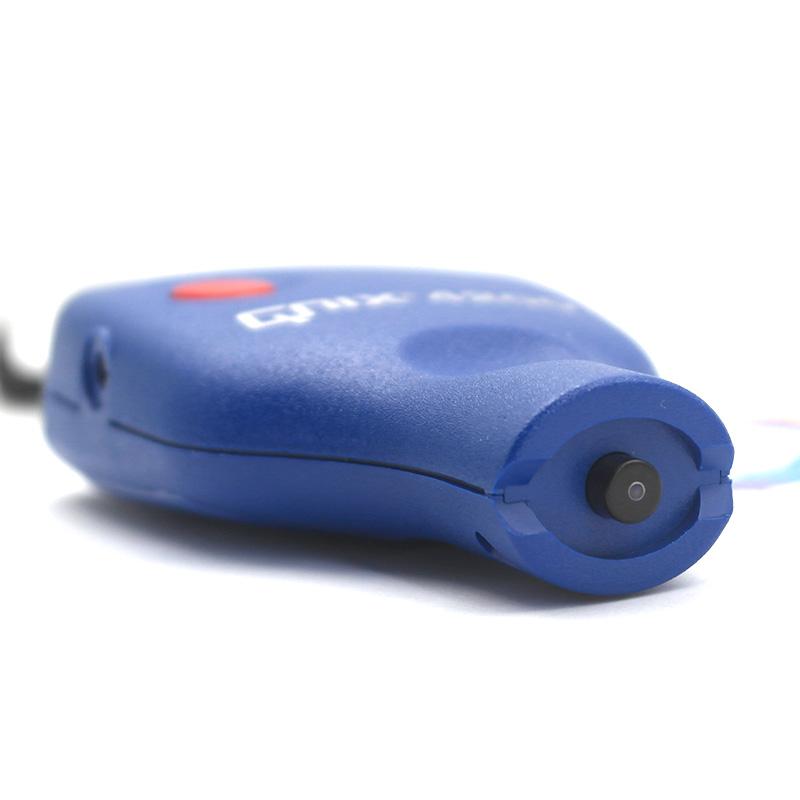

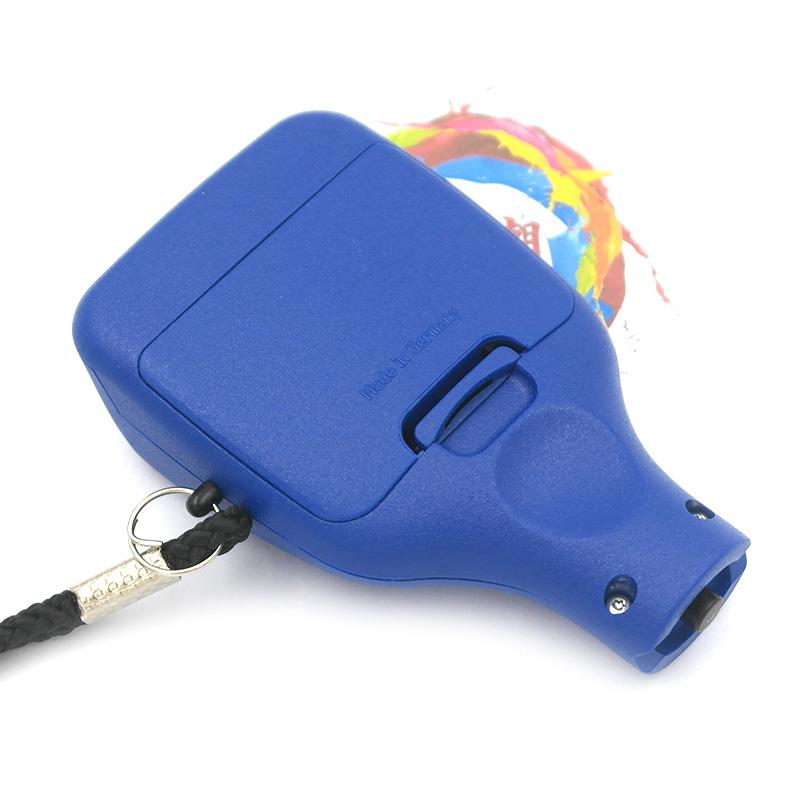

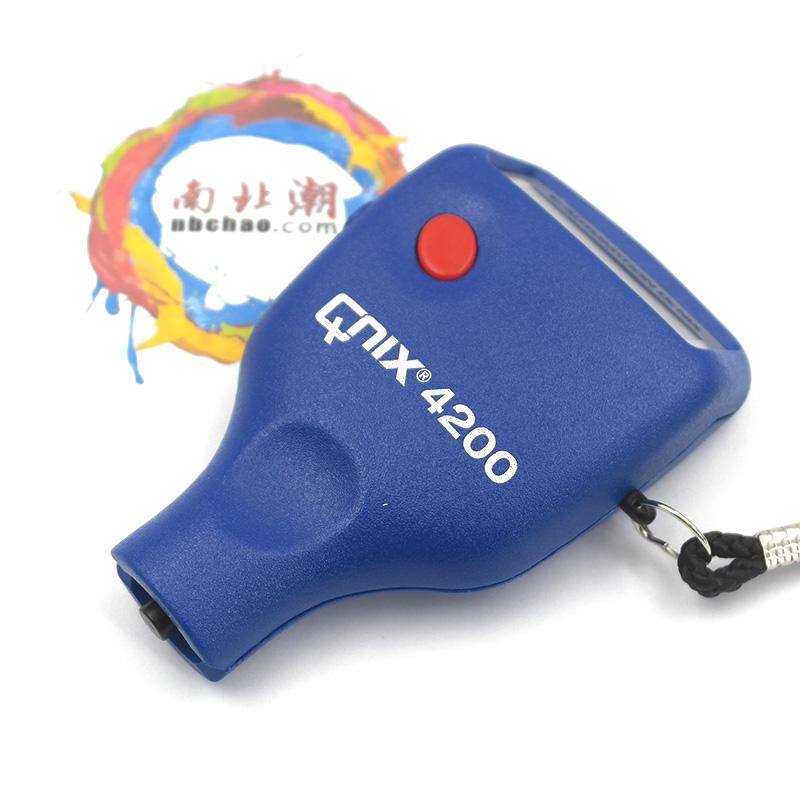

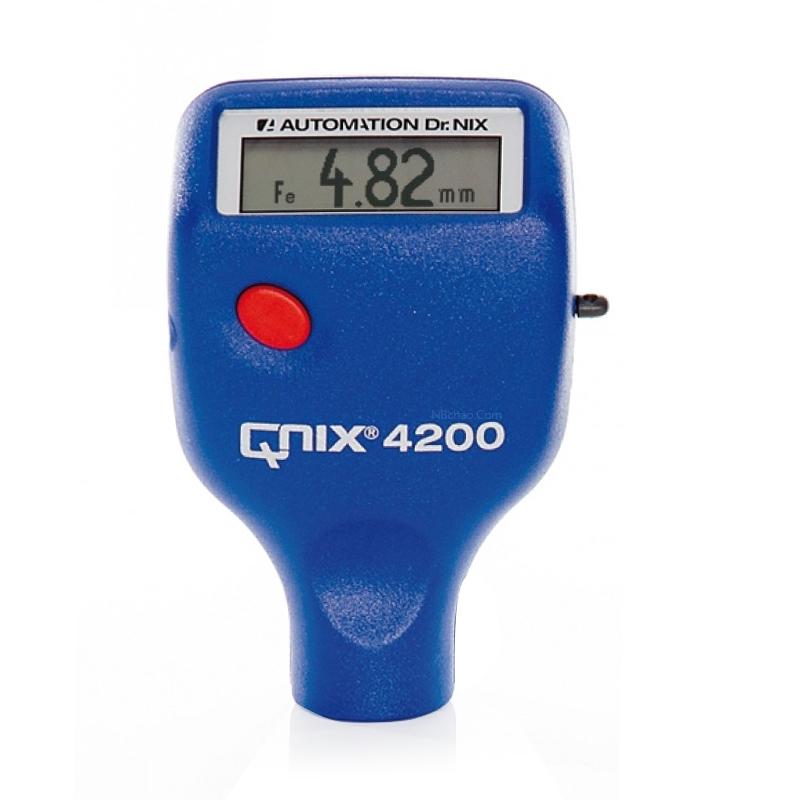

Germany QNix4200 Integrated magnetic Induction Coating Thickness Gauge 3mm range Picture

QNix@4200 coating Thickness Gauge is widely used in the field of coatings and automotive coating, QNix@4200 is a magnetic induction coating Thickness Gauge, this model is a standard version of the integrated probe, 3mm range.


Benefits:

Easy to use

No calibration required

High measurement accuracy


FAQ
QDo you have the Coating thickness gauge involved in ISO2178?
A The QNix4200 Coating thickness gauge will do
QWhat material is the probe equipped with the Nix QNix4200?
A Hello, it is made of ruby with high abrasion resistance.
QDoes the QNix4200 Nix Coating thickness gauge have a factory certificate and verification report?
A Hello, there is no verification report, only a certificate of conformity.
