UK THERMAX Temperature Indicator Label, six grids 8 (241-290 ℃)
SE
06STHE0ML8
Thermax 06STHE0ML8 Temperature test paperSPEC
Thermax 06STHE0ML8 Temperature test paperDetails
Thermax 06STHE0ML8 Temperature test paperPacking list
- SKU
- NB015540
- Mode of discoloration
- Irreversible
- temperature lattice
- 6 squares
- Measuring temperature ℃
- 241℃|249℃|254℃|260℃|280℃|290℃
- Specifications and Dimensions
- 12*32mm
- Encasement Specifications
- Article 10
Description
A long record of reaching the highest temperatures
Self-adhesive labels
Silver to black color variation
Instant response
Resistant to oil, water and steam
Inexpensive and easy to use
accuracy
Below 100°C is ±1°C
100°C to 154°C is ±1.5°C
More than 154 °C is ± 4 °C
Storage conditions
Product 120 F/50°C or below: Store in an airtight bag inside the refrigerator
Product above 120μF/50°C: Store at room temperature and humidity (i.e., 20°C/68°C).
50% Relative Humidity
Product principle

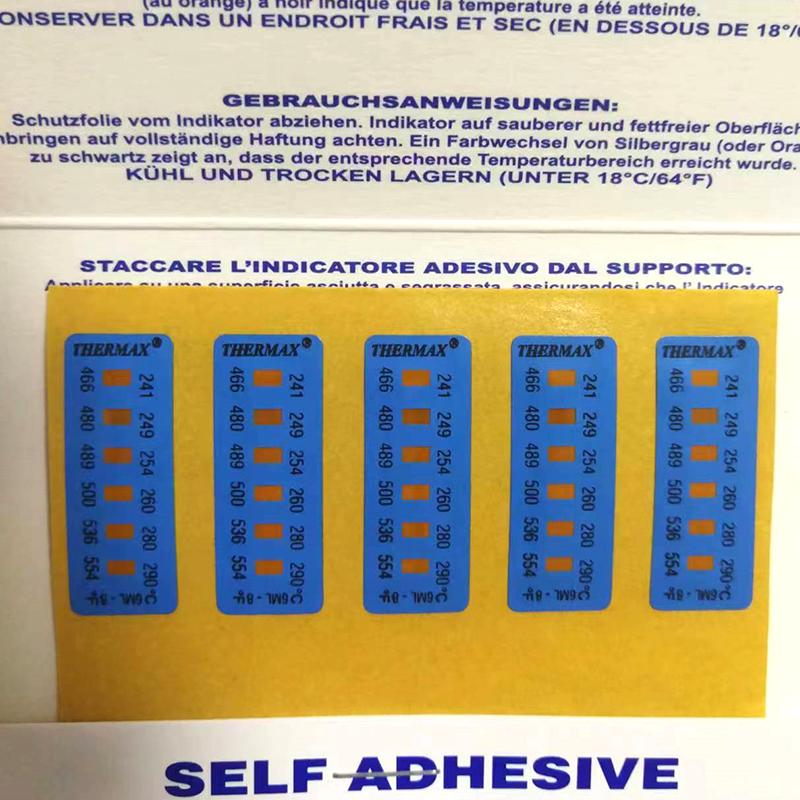

These self-adhesive labels are sealed with a series of temperature-sensitive components.
Heat-resistant substrate with transparent windows. The color of each element changes significantly.
Exceeding the rated temperature. These changes are irreversible and provide a temperature history.
The surface being monitored. Labels are not layered when removed for reference.
It can be attached to the inspection report as a permanent record.
How tags work:
Temperature-sensitive elements use well-defined phase change indicators.
The melting point of a range of specially purified organic chemicals imparts a unique, high levelPrecision, color-changing effect. Each temperature element uses a different compound.
It is manufactured separately by applying a coating containing chemicals to a special absorbent.
Paper substrates. When the rated temperature is exceeded, the chemical melts and is absorbed.
substrates, resulting in long-lasting color changes. Up to ten elements can be combined.
On a single label.
