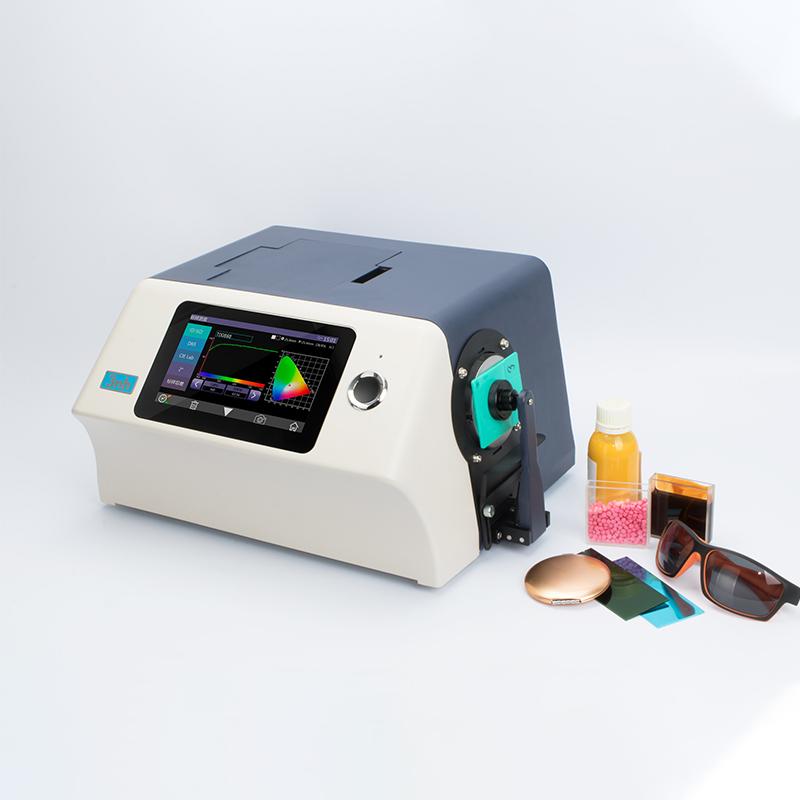

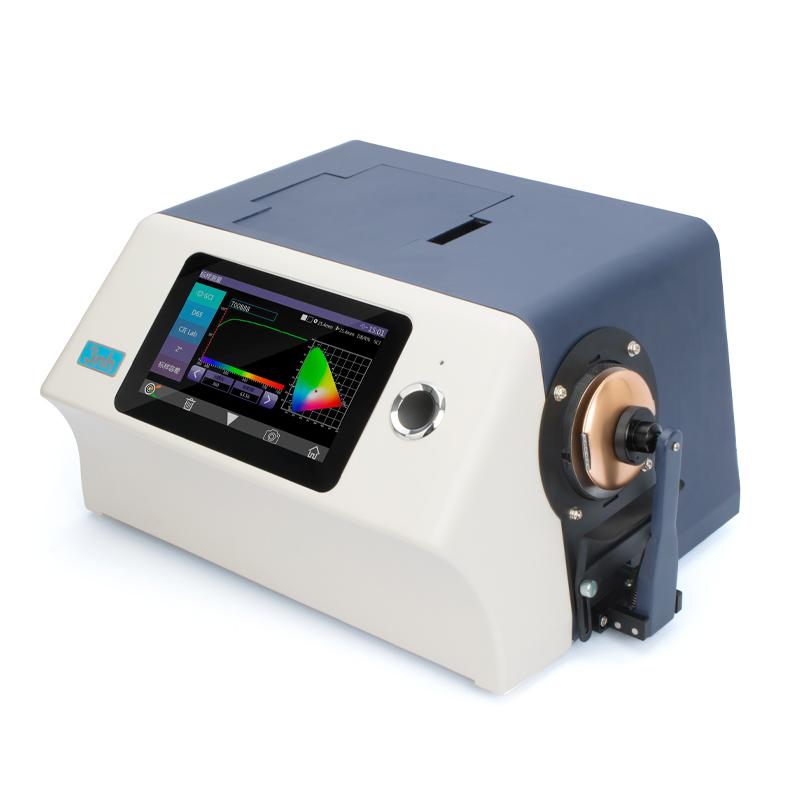

3NH YS6060 Benchtop Colorimeter 400nm + 420nm Cut-off Light source

YS6060

Desktop Colorimeter

TFT true color 7inch capacitive touch screen, Full Light source, Lighting mode: reflection D/8 °, transmission D/0 ° (including UV/exclude UV measurement) Color measurement accurate and stable, Storage capacity, PC side powerful expansion function, for laboratory Color accurate analysis and transmission.

YS60 series is an independently developed domestic (CN) desktop grating Spectrophotometer with independent intellectual property rights, TFT true color 7inch capacitive touch screen, full light source, lighting method: reflection D/8°, transmission D/0° (including UV/excluding UV Measurement) Accurate and stable color measurement, large storage capacity, and powerful expansion functions on the PC side, used for accurate analysis and transmission of color in the laboratory.

Features

1. High hardware configuration: 7-inch TFT pure color capacitive touch screen; Bluetooth 2.1; concave grating;

2. Dual-array 256-pixel CMOS Detector; long-life and stable LED/ultraviolet LED/xenon lamp;

3. Measure the reflection and transmission spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

4. Caliber automatic identification, four calibers of φ25.4/15/8/4mm can be switched arbitrarily, while taking into account the special needs of customers;

5. Temperature monitoring and compensation, built-in temperature sensor, monitors and compensates the test environment to ensure more accurate measurement results;

6. The test Wavelength range is 360~780nm, and built-in 400nm cut-off/420nm cut-off/460nm (limited to xenon lamp version), the test UV is more professional;

7. The independent light source Detector monitors the change of the light source at all times to ensure the reliability of the light source;

8. A variety of measurement modes: quality control mode, sample mode, to meet the needs of more customers;

9. A variety of accessories: reflective sample holders, transmission mounts, and more Operating Conditions;

10. Large-capacity storage space, which can store about 40,000 pieces of test data;

11. Built-in camera for accurate positioning;

12. PC-side software has powerful extension functions

plastic sample Reflection measurement: adopt D/8 structure (diffuse illumination, 8° direction), conform to IS07724/1, CIE, ASTM, DIN and JIS standards.	transmission sample Transmission measurement: adopt d:0° structure (diffuse illumination, 0° direction reception), conform to ISO, CIE, ASTM and DIN standards.	Liquid, powder, solid sample measurement	Measuring caliber Caliber automatic identification, four calibers of φ25.4/15/8/4mm can be switched arbitrarily, taking into account the special needs of customers

Application

It is used for accurate analysis and transmission of colors in laboratories; plastic electronics, paint inks, textile and garment printing and dyeing, printing, paper products, automobiles, medical care, cosmetics and video screens, etc., in the color transmission and quality control of scientific research institutions, laboratories and other industries are widely used.

Packing list：host x1, power adapter x1, CD (including management software) x1, data cable x1, sample holder X1, manual x1, warranty card x1, standard correction board x1, black correction box x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
