SMTMF HR-150A Manual Rockwell Hardness Tester

SMTMF HR-150A manual Rockwell Hardness Tester can measure the rockwell hardness of ferrous metals, non-ferrous metals and Non-metallic materials. The initial test force of HR-150A is 98.07N, and the maximum height of the applicable specimen is 170mm.
Model：
Certificate
Contact
Details SPEC

SMTMF HR-150A Manual Rockwell Hardness TesterSPEC

SMTMF HR-150A Manual Rockwell Hardness TesterDetails

SMTMF HR-150A Manual Rockwell Hardness TesterPacking list

SKU
NB015544
initial test force
10kgf (98.07N)
main test force
60kgf、100kgf、150kgf（588N、980N、1471N）
show
Dial Display Hardness Value
Indenter Specifications
Diamond Rockwell indenter, φ 1.5875mm cemented carbide steel ball indenter
Rockwell scale
HRA、HRB、HRC
HRA、HRB、HRC
HRA:20-88 HRB:20-100 HRC:20-70
add and uninstall method
Via afterburner lever
Specimen placement
The minimum diameter of the cylindrical specimen placed on the outer surface can be 3mm.
Interface
none
execution standard
GB/T230.2 ISO 6508-2、ASTM E18
Maximum height of specimen
170mm
Distance from the center of the indenter to the fuselage
165mm
Dimension
510*212*700mm
Host Weight
85Kg
HR-150A
Manual Rockwell Hardness Tester

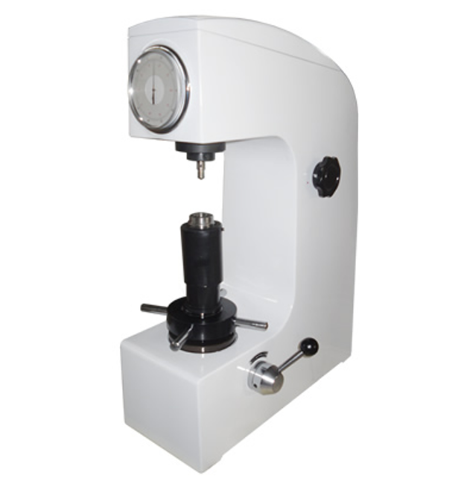

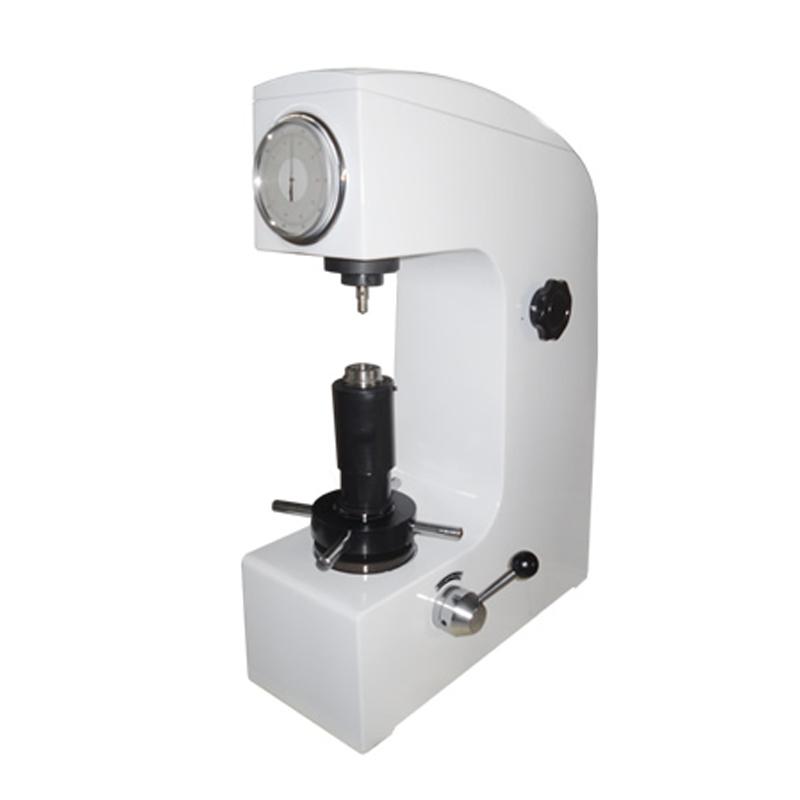

SMTMF HR-150A Manual Rockwell Hardness Tester Picture

Introduction

HR-150A Manual Rockwell Hardness Tester is an economical Rockwell Hardness Tester. It can determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials; It has a wide range of applications, and is suitable for Rockwell hardness measurement of heat treatment such as quenching and tempering; Stable and reliable surface measurement.

Donghua HR-150A Manual Rockwell Hardness Tester

Features

●Accurate, reliable and durable

● Dial direct reading, HRA, HRB, HRC rulers

●Mechanical manual test, no power supply is required

● Mechanical manual test process, no electrical control required

●Precision oil pressure buffer, loading speed adjustable

●Wide range of application, easy to operate, good economy and practicability

●Accuracy in accordance with GB/T230.2 ISO 6508-2 and American ASTM E18

Standard configuration


name

quantitynamequantity
Diamond Rockwell indenter1 pcφ1.5875mm ball indenter1 pc
Hardness block3 piecesLarge, medium and V-shaped test benches1 each
Instruction manual for the product1 servingProduct Certificate1 serving
