Brand：SMTMF
Model：MHBS-3000

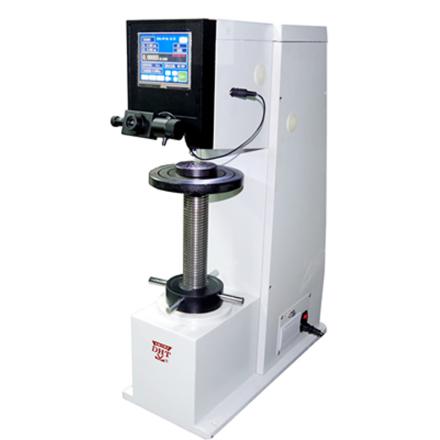

Name：Touch screen digital display Brinell Hardness Tester
Specifications
| Brinell scale | HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、HBW10/100、HBW10/125、HBW10/250、 HBW10/500、 HBW10/1000、HBW10/1500、HBW10/3000、 |
| test force | 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf |
| test force | 612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N |
| Conversion Ruler | HRA、HRB、HRC、HRD、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、 HR30T、HR45T |
| Measurement unit | 1um |
| Test force holding time | 0~60s |
| Hardness testing range | 8~650HBW |
| Microscope magnification | 20X |
| execution standard | ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2 |
| Hardness reading | liquid crystal display |
| Interface | Built-in printer |
| Power Supply | AC220+5%、50~60Hz |
| Distance from the center of the indenter to the body | 135mm |
| Maximum height of specimen | 275mm |
| Dimension | 565*245*786mm |
| Host Weight | 130kg |
Packing list
Whole machine X1, 20X micrometer eyepiece X1, standard Hardness block X3, fuse 2AX3, power cord X1, RS232 wiring X1, carbide ball indenter X3, large test bench X1, medium test bench X1, V-shaped test bench X1, manual X2, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15546/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
