SMTMF MHBS-3000AT Touch screen automatic turret digital display Brinell Hardness Tester Specifications

Search

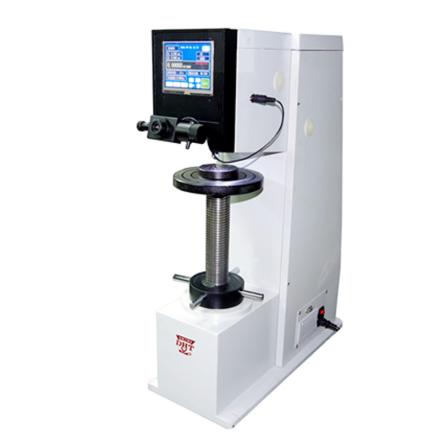

SMTMF MHBS-3000AT Touch screen automatic turret digital display Brinell Hardness Tester

Brand：SMTMF

Model：MHBS-3000AT

Name：Touch screen automatic turret digital display Brinell Hardness Tester

DetailsContact
Specifications
Brinell scale HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、HBW10/100、HBW10/125、HBW10/250、 HBW10/500、 HBW10/1000、HBW10/1500、HBW10/3000、
test force 62.5kgf、100kgf、125kgf、187.5kgf、250kgf、500kgf、750kgf、1000kgf、1500kgf、3000kgf
test force 612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、8907N、14710N、29420N
Conversion Ruler HRA、HRB、HRC、HRD、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、 HR30T、HR45T
Measurement unit 1um
Test force holding time 0~60s
Objective lens and probe switching automatic
Hardness testing range 8~650HBW
Microscope magnification 20X
execution standard ISO 6506、ASTM E10-12、JIS Z2243、GB/T 231.2
Hardness reading liquid crystal display
Interface Built-in printer
Power Supply AC220+5%,50~60Hz
Distance from the center of the indenter to the body 135mm
Maximum height of specimen 220mm
Host Weight 130kg
Packing list
Whole machine X1, 20X micrometer eyepiece X1, standard Hardness block X3, fuse 2AX3, power cord X1, carbide ball indenter X3, large test bench X1, medium test bench X1, V-shaped test bench X1, manual X2, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15548/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
