SMTMF MHRS-45 Touch screen digital display surface Rockwell Hardness Tester Specifications

Search

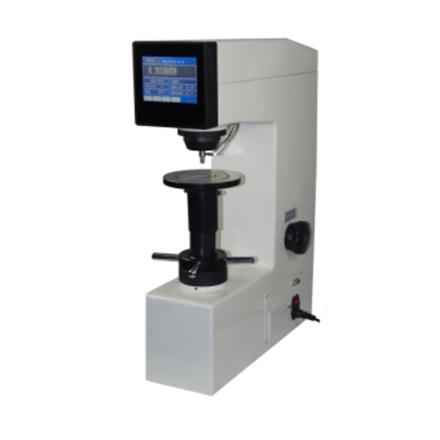

SMTMF MHRS-45 Touch screen digital display surface Rockwell Hardness Tester Initial test force 3kgf

Brand：SMTMF

Model：MHRS-45

Name：Touch screen digital display surface Rockwell Hardness Tester

DetailsContact
Specifications
initial test force 3kgf(29.42N)
Total test force 15kgf、30kgf、45kgf（147.1N、294.2N、441.3N）
Hardness resolution 0.1 Rockwell unit
Surface Rockwell scale HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15W、HR30W、HR45W、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y
Conversion Ruler HV、HB、HR
test range HR15N：70-94、HR30N：42-86、HR45N：20-77； HR15T：67-93、HR30T：29-82、HR45T：10-72
execution standard EN-ISO-6508、ASTM E-18 GB/230.1、GB/230.2、JJG112
Indenter Specifications Diamond cone indenter, φ 1.5875mm steel ball indenter
Hardness reading method LCD display Hardness value, Rockwell scale, total test force, hold time
data entry touch screen
Interface Built-in printer, RS232 Communication interface
add and uninstall method Motor automatic loading and unloading (initial test force manual loading)
Maximum height of the test piece 170mm
Distance from the center of the indenter to the fuselage 165mm
Specimen placement The minimum diameter of the round specimen placed on the outer surface is 3mm.
Power Supply AC220V±5% 50/60Hz
Dimension 550*220*730mm
Weight 85kg
Packing list
Machine X1, diamond Rockwell indenter X1, power cord X1, rockwell hardness block X3, weight X1 (set), fuse 0.5AX2, dust-proof plastic cover X1, 1.5875 steel ball indenter X1, thermal printing paper X1, large test bench X1, medium test bench X1, V-shaped test bench X1, manual X1, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days
