SMTMF HRSS-150 Touch screen digital display dual Rockwell Hardness Tester initial test force 10kgf

SMTMF HRSS-150 digital display dual Rockwell Hardness Tester can simultaneously test surface Hardness and Rockwell hardness, with reset and deletion function, HRSS-150 dual Rockwell Hardness Tester specimen maximum height of 180mm, Rockwell initial test force of 98.07N.
Model：
Certificate
Contact
Details SPEC

SMTMF HRSS-150 Touch screen digital display dual Rockwell Hardness TesterSPEC

SMTMF HRSS-150 Touch screen digital display dual Rockwell Hardness TesterDetails

SMTMF HRSS-150 Touch screen digital display dual Rockwell Hardness TesterPacking list

SKU
NB015563
surface initial test force
3kgf（29.4N ）
Rockwell initial test force
10kgf（98.07N）
total surface Rockwell test force
15kgf、30kgf、45kgf（147.1N、294.2N、441.3N）
Rockwell total test force
60kgf、100kgf、150kgf（588N、980N、1471N）
Indenter Specifications
Diamond Rockwell indenter, φ 1.5875mm steel ball indenter
Test force holding time
0~60s
Lockheed ruler
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV
Surface Rockwell scale
HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15W、HR30W、HR45W、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y
Rockwell test range
HRA:20-88、HRB:20-100、HRC:20-70、HRD:40-77、HRE:70-100
Rockwell test range
HRF:60-100、HRG:30-94、HRH:80-100、HRK:40-100、HRL:50-115
Rockwell test range
HRM:50-115、HRR:50-115、HRP:50-115、HRS:50-115、HRV:50-115
Surface Rockwell test range
HR15N:70-94、HR30N:42-86、 HR45N:20-77、HR15T:67-93、HR30T:29-82、HR45T:10-72
execution standard
GB/T230.2 ISO 6508-2、ASTM E18
Hardness reading
digital display
Interface
Built-in printer RS-232
Maximum height of specimen
180mm
Indenter - Outer Wall Distance
160mm
Power Supply
AC220V+5%,50~60Hz
Dimension
551*260*800mm
Host Weight
70Kg
HRSS-150
Touch screen digital display dual Rockwell Hardness Tester

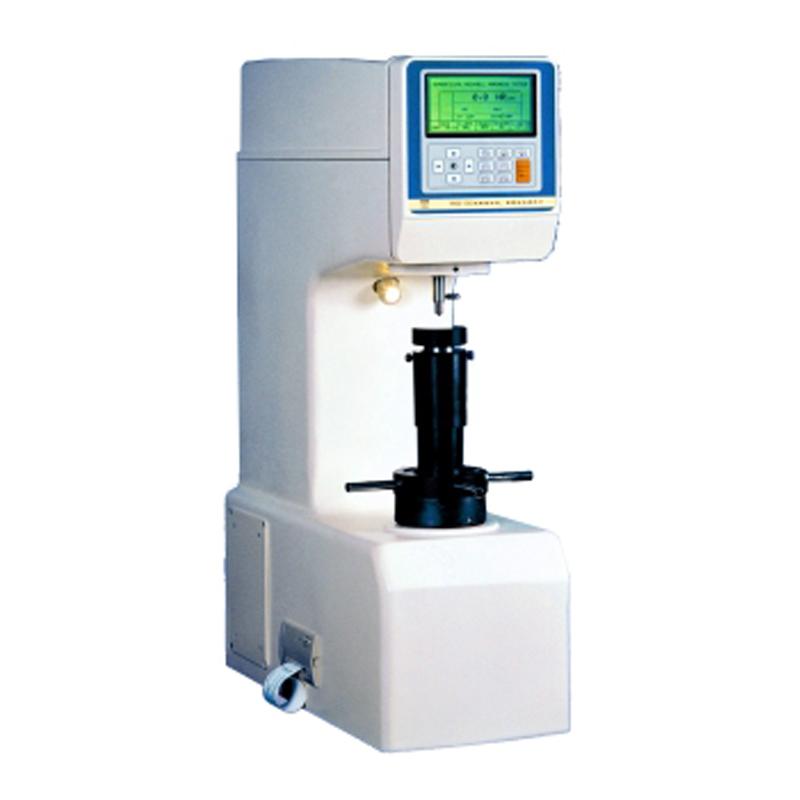

SMTMF HRSS-150 Touch screen digital display dual Rockwell Hardness Tester initial test force 10kgf Picture

Introduction

HRS-150/45 digital display double Rockwell Hardness Tester has novel appearance, complete functions, convenient operation, clear and intuitive display, stable performance, is a high-tech product integrating electromechanical, can carry out hardness testing of all scales of Rockwell and surface Rockwell.

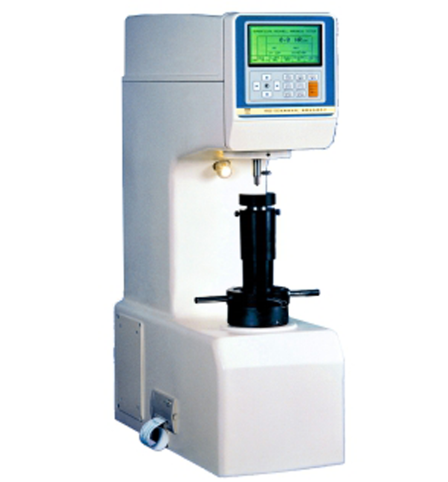

Donghua HRSS-150 Touch Screen Digital Display Double Rockwell Hardness Tester

Features

  • Selection of Rockwell and surface Rockwell hardness scales

  • THE HARDNESS ACCURACY CAN REACH 0.1HR

  • External illumination for a clear view of the test points

  • Hardness test holding time selection

  • Reset and delete functions

  • Browse the values of the hardness test

  • The hardness test results are processed and printed

  • Comparison between the various hardness indications

  • RS-232C serial communication for users to extend functions

Standard configuration
namequantitynamequantity
Diamond Rocky indenter1 pcφ1.5875mm ball indenter1 stick
Hardness block3 piecesLarge, medium and V-shaped test benches1 each
Surface Rockwell block2 piecesToggle weights1 pc
weight1 setDust-proof plastic bag1 pc
Power cord1 rootRS-232 communication line1 root
Fuse 2A/220V specification 5x202 pcsPaper1 volume
Instruction manual for the product1 servingProduct Certificate1 serving
