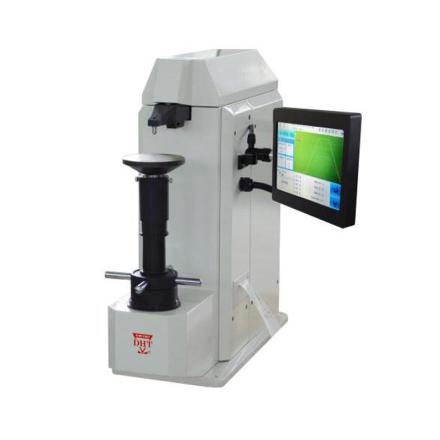

SMTMF HRS-150/45X Cantilever Double Rockwell Hardness Tester (convex nose) - Specifications

Brand：SMTMF

Model：HRS-150/45X

Name：Cantilever Double Rockwell Hardness Tester (convex nose)

Specifications

Rockwell initial test force	3kgf（29.4N）、10kgf（98N）
Rockwell total test force	15kgf147.1N）、30kgf（294.2N）、45kgf（441.3N）、60kgf(588.4)N、100kgf(980.7N)、150kgf(1471N)
Rockwell scale	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T、HR15W、HR30W、HR45W、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y
test range	HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100
test range	HRL:50-115 HRM:50-115、 HRR:50-115、HR15N：70-94、HR30N：42-86、HR45N：20-77、HR15T：67-93、HR30T：29-82、HR45T：10-72
Indenter Specifications	Diamond cone Rockwell indenter, φ 1.5875mm steel ball indenter
execution standard	EN-ISO-6508、GB/T230.1、GB/T230.2、JJG112、ASTM E18
Conversion Ruler	HR、HB、HV、HLD、HK
Hardness reading	LCD digital display
Interface	Built-in printer RS-232 interface
Maximum height of specimen	260mm
Distance from the center of the indenter to the fuselage	150mm
Hardness Tester Dimensions	700×260×700mm
Instrument Weight approx	85kg

Packing list

Whole machine X1, diamond conical indenter X1, Ø 1.5875mm steel ball indenter X1, test bench X3, standard rockwell hardness block X3, power cord X1, thermal printing paper X1, fuse 0.5AX2, large test bench X1, medium test bench X1, V-shaped test bench X1, manual X1, certificate X1, warranty card X1

After-sales instructions

Warranty days: 365 days

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15569/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
