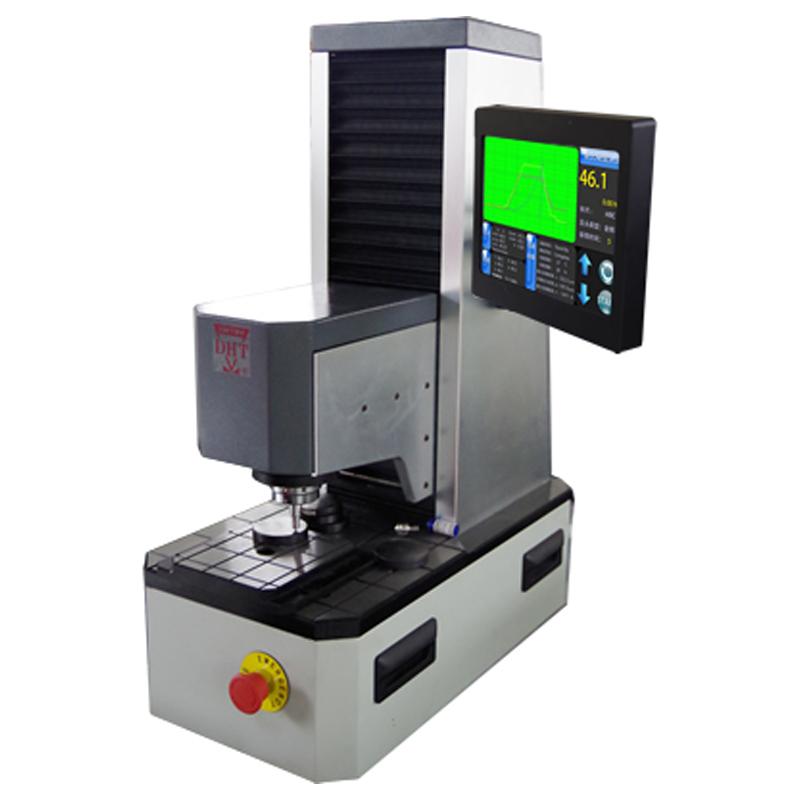

SMTMF JMHRSS-150 mobile precision double Rockwell Hardness Tester automatic closed loop

JMHRSS-150

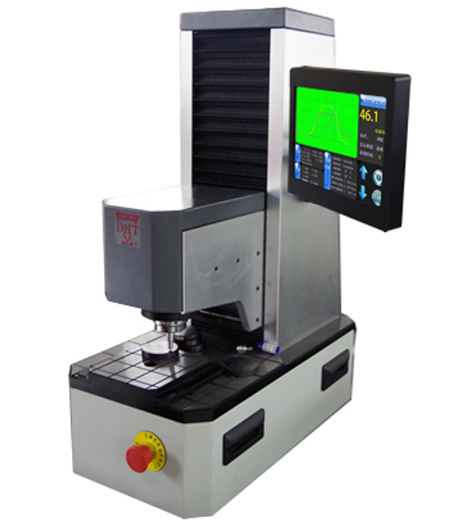

Precision double Rockwell Hardness Tester (head mobile)

Introduction

JMHRSS-150 Precision Rockwell Hardness Tester (Head Downward Pressure Type) adopts professional closed-loop sensor control technology to achieve fully automatic control and hardness testing process.

The loading system adopts a high-precision force sensor and a central controller to form a closed-loop loop to realize the continuous tracking and control of the afterburner process throughout the process. THE BATHYMETRY SYSTEM USES A HIGH-PRECISION DISPLACEMENT SENSOR, WHICH RESULTS IN A MINIMUM HARDNESS VALUE WITH A RESOLUTION OF 0.1 HR.

The stage is fixed, and the hardness test is performed by the upward and downward movement of the indenter. The fixed test bench can eliminate the coaxiality error caused by the traditional screw rotation up and down, greatly improve the accuracy and repeatability of the test, and also increase the stability and efficiency of the machine.

Features

●The frame structure is sturdy and rigid

●Fully automatic closed-loop sensor loading

● Test 15 types of Rockwell and 15 types of surface Rockwell hardness scales

● High precision, international contrast is less than 0.5HR

●Comply with ASTM E18 ISO6508 GB/T230.2

●New design, nose push-down type.

●High-precision loading system, effectively avoiding force overload.

●Continuous measurement can be carried out in and out of the fixed table through the automatic withdrawal function of the indenter

●Automatic lifting of the machine head and automatic load of the initial test force can ensure the stable generation of the force.

●High-definition LCD touch screen operation, menu-based operation interface

● Backlit LCD display, automatic data statistics and storage, RS-232 data output interface.

● Automatic loading and unloading, holding time adjustable

●GO/NG tolerance judgment.

●Correction of test values for cylinders and spheres

●The force measurement selection is linked to the hardness scale selection.

●Optional operating languages include English and Chinese for easy user operation.

●Scale conversion HR, HB, HV and tensile strength

● Built-in printer.

●The standard configuration is complete, which can meet the test requirements of all scales

●Fully automatic closed-loop sensor loading system, fixed test bench, to achieve high-precision and rapid testing, can also provide a higher level of standard Hardness Tester

Packing list：Whole machine X1, < unk > 1.588 steel ball indenter X1, sample stage X1, standard Hardness block X9, power cord X1, V-shaped sample stage X1, < unk > 1.588 steel ball X5, diamond indenter X1, indenter locking screw X1, dust cover X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
