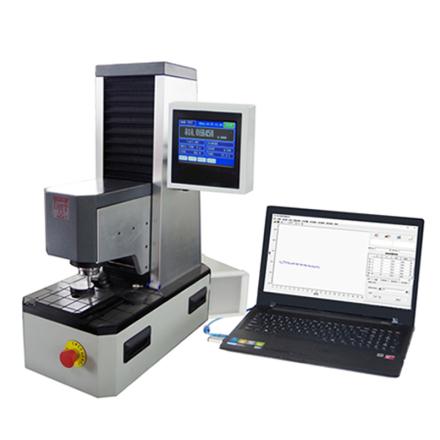

SMTMF JMHRS-150-XYZ Automatic precision Rockwell Hardness Tester (machine head mobile) Specifications
Search
Brand：SMTMF
Model：JMHRS-150-XYZ
Name：Automatic precision Rockwell Hardness Tester (machine head mobile)
Specifications
| initial test force | 10kgf |
| main test force | 60kgf、100kgf、150kgf |
| rockwell hardness | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR HRS、HRV |
| LCD display | Rockwell scale, Hardness value, total test, hold time, Upper/Lower limit setting value GO/NG indication, etc |
| add and uninstall method | Closed-loop loading control technology (loading, loading, unloading) |
| Ruler selection | Touch screen selection |
| Ruler conversion | HR、HB、HV |
| Load time | 0~99s |
| Interface | Built-in printer, RS232 interface |
| execution standard | ASTM E18、ISO6508、GB/T230.2 |
| Allowable specimen height | 300mm |
| Specimen placement | Outer surface placement |
| Power Supply | 110/220V AC、60~50Hz |
| configuration | stand-alone + software + Z lift + X-axis, Y-axis movement + computer |
| feature | Hardness measurement of any multiple points on the plane |
| application | Suitable for multi-point, repeability measurement of large samples, such as end-quenched samples |
| Sample rise | automatic |
| Sample automatic rise speed | 3mm/s |
| Apply initial test force | automatic |
| Apply the main test force | automatic |
| Sample movement in X/Y direction | automatic movement |
| X/Y direction movement Accuracy (mm) | 0.003 |
| X/Y direction moving distance (mm) | 100 |
| Hardness value display | automatic |
| Hardness value conversion | automatic |
| Hardness value output | RS-232 interface |
| Hardness statistical analysis | Yes. |
| Hardness Detection Database Query | Yes. |
| Customized inspection report | auto generated |
| Conversion Ruler | Surface Lockheed, Brinell, Vickers |
| Hardness reading | Large screen digital display |
| Maximum height of specimen | 300Mm, heightened type: 400mm |
| Indenter - Outer Wall Distance | 160mm |
| Dimension | 520*240*720mm |
| Power Supply | AC220V |
| Host Weight | About 65Kg |
Packing list
Whole machine X1, < unk > 1.588 steel ball indenter X1, sample stage X1, standard Hardness block X9, power cord X1, V-shaped sample stage X1, < unk > 1.588 steel ball X5, diamond indenter X1, indenter locking screw X1, dust cover X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
