SMTMF MHVS-50 touch screen digital display Vickers Hardness Tester 490N test force

SMTMF MHVS-50 digital display Vickers Hardness Tester adopts touch screen LCD screen, measurement eyepiece magnification is 100x (observation), 200x (measurement), MHVS-50 minimum detection unit is 0.1um, MHVS-50 digital display Vickers Hardness Tester is suitable for measurement of small, thin specimens, surface infiltration treatment parts.
Model：
Certificate
Contact
Details SPEC CAT

SMTMF MHVS-50 Touch screen digital display Vickers Hardness TesterSPEC

SMTMF MHVS-50 Touch screen digital display Vickers Hardness TesterDetails

SMTMF MHVS-50 Touch screen digital display Vickers Hardness TesterPacking list

SKU
NB015577
XY platform
1kgf、2kgf、3kgf、5kgf、10kgf、20kgf、30kgf、50kgf（9.8N、19.6N、29.4N、49N、98N、196N、294.2N、490N）
Test force application method
Automatic loading and unloading
Test force conversion
automatic
indenter objective lens switching
manual
testable parameters
HV/HK
LCD display
Load start, Zero Setting, hold time, lighting adjustment, conversion ruler, tower, objective lens position, data removal and deletion, conversion value selection, printing, clock, storage
digital display
D1, D2, HV, HK, Hardness value, conversion value, load value, retention time, storage data
Camera device
Can be installed on the top of the instrument (camera: optional)
Microscope magnification
100X (observation), 200x (measurement)
execution standard
JJG151-2006、GB/T4340、JISB-7734、ASTM E92、ISO 6507
Test force holding time
5~60s
Measurement unit
0.1um
Maximum height of specimen
160mm
Distance from the center of the indenter to the machine wall
135mm
Power Supply
AC220V/50Hz
Dimension
540*220*650mm
Weight
45kg
MHVS-50
Touch screen digital display Vickers Hardness Tester

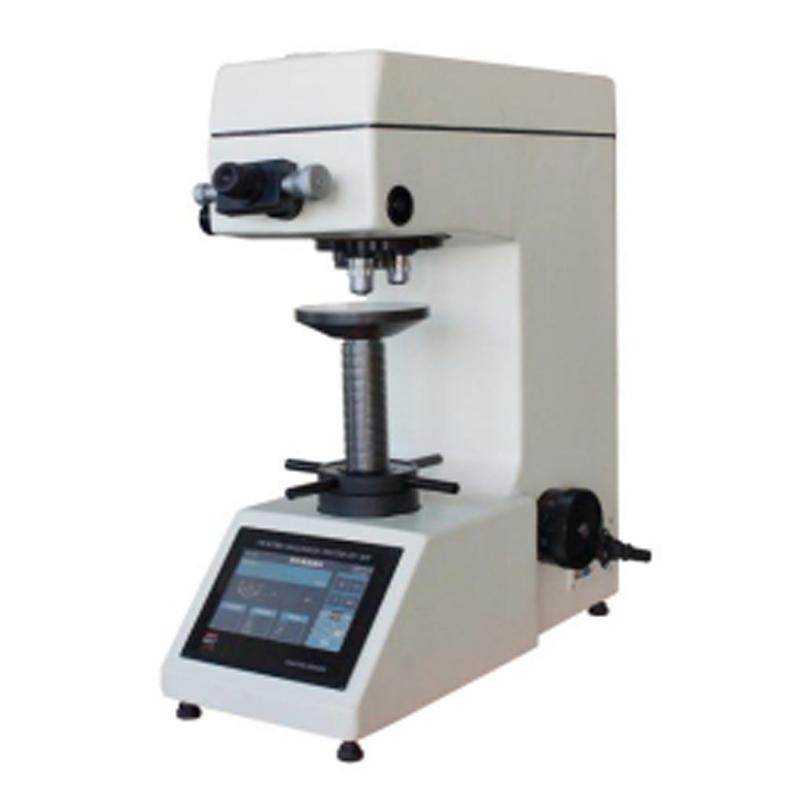

SMTMF MHVS-50 touch screen digital display Vickers Hardness Tester 490N test force Picture

Introduction

MHV-50Color touch screen Vickers Hardness Tester is a new type of Vickers Hardness Tester using precision mechanical technology and photoelectric technology, the Hardness Tester is suitable for measuring tiny, thin specimens, surface plating treated parts, is a scientific research institutions, factories and quality inspection departments for research and testing of the core hardness testing instrument.

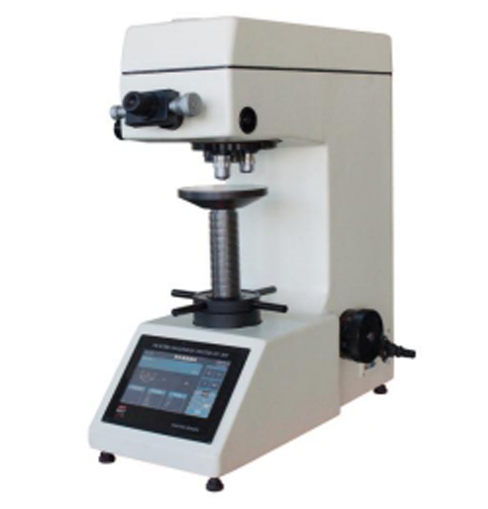

Donghua MHVS-50 Touch Screen Digital Vickers Hardness Tester

Features

The touch screen displays the operator interface

Through the operation panel, the hardness scale HV or HK can be selected for each level of test force and load holding time

When the D1 and D2 values measured by the eyepiece are directly entered, the hardness values are displayed directly on the display

The intensity of the measuring light source and the holding time of the test force can be adjusted by the software

Easy to use, high measurement accuracy, Hardness Tester can be equipped with a photographic device


Standard accessories


namequantitynamequantity
weight3 pcsLarge, medium and "V" type test benches1 each
Horizontal adjustment screws4 pcsPower cord1 root
10X micrometer eyepiece1 pcVickers hardness block2 pieces
Spare Fuse (0.5A)2 pcsSpare bulbs2 pcs
Instruction manual for the product1 servingProduct Certificate1 serving


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
