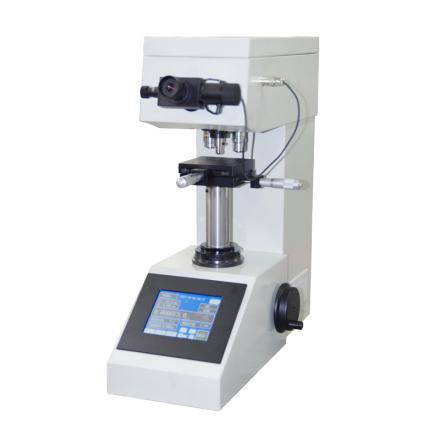

SMTMF MHVS-50AT Touch screen automatic turret digital display Vickers Hardness Tester Specifications
Search
Brand：SMTMF
Model：MHVS-50AT
Name：Touch screen automatic turret digital display Vickers Hardness Tester
Specifications
| test force | 1kgf、2kgf、3kgf、5kgf、10kgf、20kgf、30kgf、50kgf（9.8N、19.6N、29.4N、49N、98N、196N、294.2N、490N） |
| Test force application method | Automatic loading and unloading |
| Test force conversion | automatic |
| indenter objective lens switching | automatic |
| testable parameters | HV/HK |
| LCD display | Load start, Zero Setting, hold time, lighting adjustment, conversion ruler, tower, objective lens position, data removal and deletion, conversion value selection, printing, clock, storage |
| digital display | D1, D2, HV, HK, Hardness value, conversion value, load value, retention time, storage data |
| Camera device | Can be installed on the top of the instrument (camera: optional) |
| Microscope magnification | 100X (observation), 200x (measurement) |
| execution standard | JJG151-2006、GB/T4340、JISB-7734、ASTM E92、ISO 6507 |
| Test force holding time | 5~60s |
| Measurement unit | 0.1um |
| Maximum height of specimen | 160mm |
| Distance from the center of the indenter to the machine wall | 135mm |
| Power Supply | AC220V/50Hz |
| Dimension | 540*220*650mm |
| Weight | 45kg |
| Ruler conversion | HR、HB |
Packing list
Whole machine X1, Vickers Hardness block X2, horizontal adjustment screw X4, XY platform X1, power cord X1, test bench X3, spare fuse (0.5A) X2, 10X micrometer eyepiece X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
