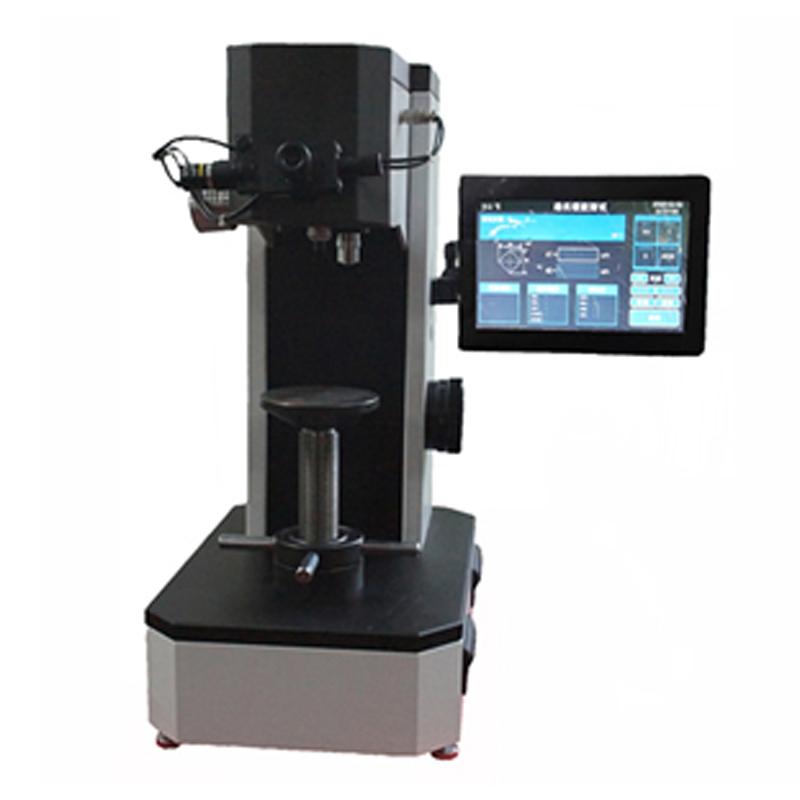

SMTMF JMHVS-30AT Precision digital display Vickers Hardness Tester 10 kinds of test force
JMHVS-30AT

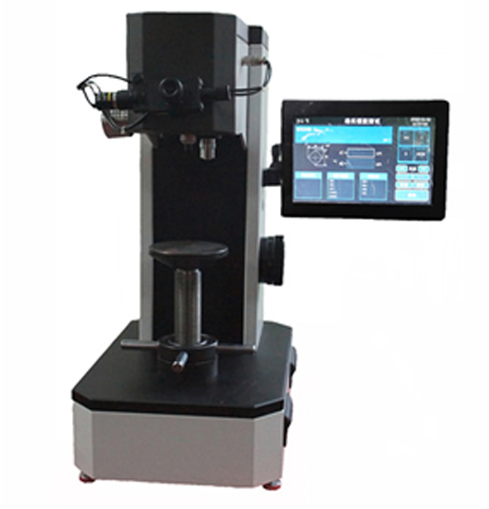

SMTMF JMHVS-30AT Precision digital display Vickers Hardness Tester (head mobile)SPEC
SMTMF JMHVS-30AT Precision digital display Vickers Hardness Tester (head mobile)Details
SMTMF JMHVS-30AT Precision digital display Vickers Hardness Tester (head mobile)Packing list
- SKU
- NB015584
- optional test force
- 4.9N(0.5Kgf),9.8N(1Kgf),19.6N(2Kgf)29.4N(3Kgf),49N(5Kgf),98N(10kgf),196N(20Kgf)294.2N(30Kgf)
- Hardness scale
- HV、HK
- error of indication
- ±3.0%
- screen
- Color touch screen
- execution standard
- EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2，JJG150
- Test force application method
- Automatic Loading and Unloading (Fully Closed Loop Sensors Control)
- Microscope magnification
- 100X (observation), 200x (measurement)
- indenter objective lens switching
- automatic
- Test force holding time
- 0~60s
- Measurement unit
- 0.1um
- Maximum height of specimen
- 210mm
- Maximum width of specimen
- 150mm
- Operating temperature
- 10~38℃
- Power Supply
- AC220V/50Hz
- Hardness Measurement range
- 8HV~3000HV
- Dimension
- 550*350*700mm
- Weight
- 60kg
Introduction
JMHVS-5AT/10AT/30AT/50AT precision digital display automatic turret Vickers Hardness Tester is a new generation of products. The unique head pressure down design, the Hardness Tester structure design is sturdy and durable, it is a Vickers Hardness Tester using precision mechanical technology and photoelectric technology, the machine is a full closed-loop vacant system, and the pressure sensor is the feedback unit.
Scope of application
Suitable for determination: steel, non-ferrous metals, IC wafers, thin plastics, metal foils, coatings, coatings, surface hardening layers, laminated metals, heat treatment effects, carburizing layer hardening depth, cemented carbide, ceramics, steel, non-ferrous metals, thin plates, metal foils, electroplating, miniature targets, welding joints or deposition layer hardness testing is a satisfactory hardness testing instrument for material research and testing by scientific research institutions, factories and quality supervision departments
Features
●The intensity of the measuring light source can be adjusted by pressing the button
●It has a mobile structure of the machine head, linear slide guide, and is driven by T-shaped screw rod and high-precision motor
●Fix the stage to reduce the coaxiality error caused by the screw moving up and down
●The measurement indentation is more stable
●The working platform has a large space, which can realize the measurement of large pieces and is suitable for replacing large working platforms
●Unique closed-loop control system, hardness testing is faster and more accurate
●Automatic conversion between indenter and objective lens
●And can preset the test force holding time,
●The software has a built-in hardness value conversion table
●Easy to use and high measurement accuracy
●The Hardness Tester can also be equipped with a photographic device according to the special requirements of the user, and can shoot the measured indentation and the metallographic structure of the material
| Standard configuration | |||
| name | quantity | name | quantity |
| Horizontal adjustment screws | 4 pcs | Large, medium, "V" type test bench | 1 each |
| 10X micrometer eyepiece | 1 pc | Power cord | 1 root |
| Spare Fuse (0.5A) | 2 pcs | Vickers hardness block | 2 pieces |
| Instruction manual for the product | 1 serving | Spare bulbs | 2 pcs |
| Product Certificate | 1 serving | ||
