Brand：SMTMF
Model：MHVS-1000

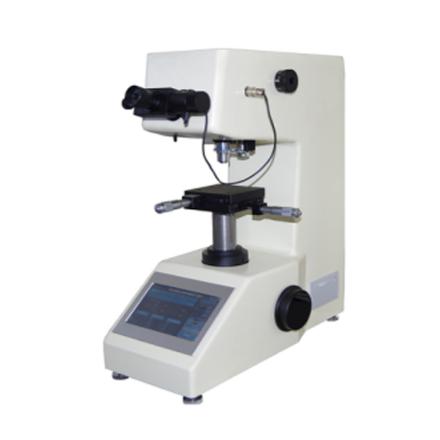

Name：Touch Screen Digital Display Microscopic Hardness Tester
Specifications
| test force | 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N) |
| execution standard | GBT4340.1，GBT4340.2，ASTM_E92 |
| Hardness testing orientation | 5~5000HV |
| Test force application method | Automatic (loading, retaining, unloading) |
| indenter objective lens switching | manual |
| Microscope magnification | 100X (for observation) 400X (for measurement) |
| Test force holding time | 0~60s |
| Minimum resolution | 0.01μm |
| Maximum height of specimen | 120mm |
| Maximum width of specimen | 110mm |
| Power Supply | AC220V+5%，50-60Hz |
| Dimension | 441*270*480mm |
| Host Weight | 31kg |
Packing list
The whole machine X1, weight axis X1, cross test table X1, clamping table X3, screw driver X2, power cord X1, horizontal adjustment screw X1, spare light bulb (6V12W) X2, microscopic Vickers Hardness block X2, 10X micrometer eyepiece X1, weight X6, level X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/15588/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
