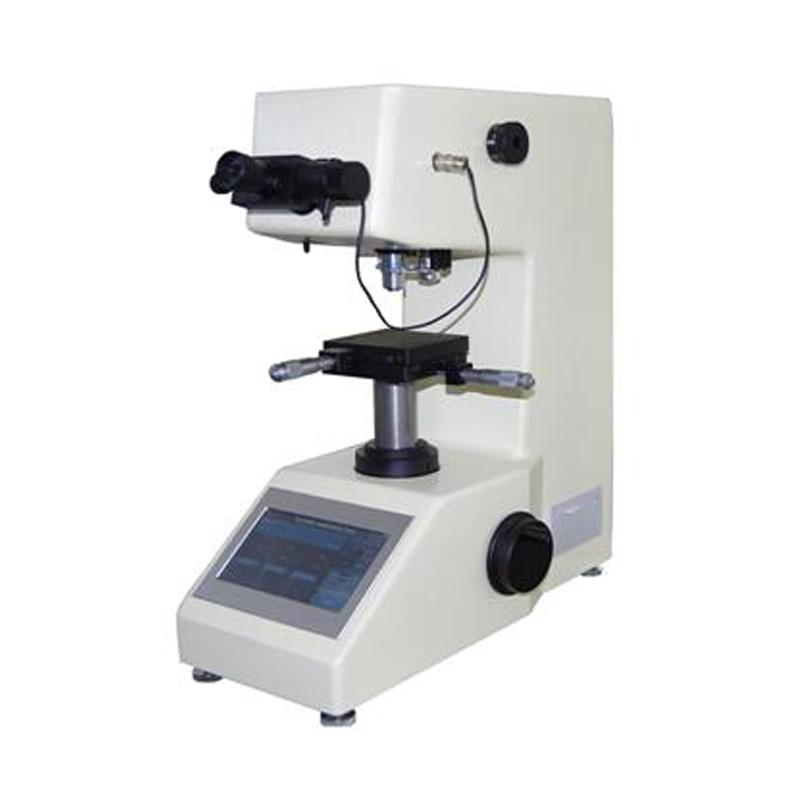

SMTMF MHVS-1000AT Touch Screen Automatic Turret Microscopic Hardness Tester 5~ 5000HV
MHVS-1000AT
SMTMF MHVS-1000AT Touch Screen Automatic Turret Microscopic Hardness TesterSPEC
SMTMF MHVS-1000AT Touch Screen Automatic Turret Microscopic Hardness TesterDetails
SMTMF MHVS-1000AT Touch Screen Automatic Turret Microscopic Hardness TesterPacking list
- SKU
- NB015589
- test force
- 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
- execution standard
- GBT4340.1，GBT4340.2，ASTM_E92
- Hardness testing orientation
- 5~5000HV
- Test force application method
- Automatic (loading, retaining, unloading)
- indenter objective lens switching
- manual
- Microscope magnification
- 100X (for observation) 400X (for measurement)
- Test force holding time
- 0~60s
- Minimum resolution
- 0.01μm
- Maximum height of specimen
- 120mm
- Maximum width of specimen
- 110mm
- Power Supply
- AC220V+5%，50-60Hz
- Dimension
- 441*270*480mm
- Host Weight
- 31kg
Introduction

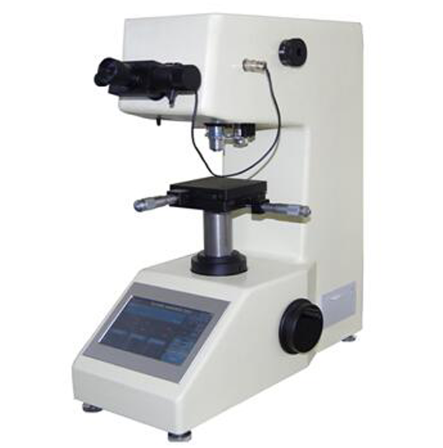

MHVS-1000AT Touch Screen Automatic Turret Digital Microscopic Hardness Tester Vickers Hardness Tester is a new type of Hardness Tester that combines precision machinery and optoelectronic computer software, which can be used for Vickers or Knoop hardness testing, and the hardness value is calculated by inputting the measured diagonal value into an integrated calculator.
MHVS-1000AT Touch Screen Automatic Turret Digital MicroHardness Tester Vickers Hardness Tester is suitable for testing metal structures, including tiny parts, sheets, metal foils, good wires, thin hardened layers and plating layers, and can also be used to test non-metallic materials such as glass, jewelry, and ceramics that cannot be tested with the Rockwell test method and other relatively large force tests. In particular, it follows the structure of the metal and tests the internal hardness of materials such as induction hardening or carburization.
Features
● Indentation diagonal automatic measurement microscope
●Easy to operate
●Fully automatic loading and unloading control
●LCD digital hardness value and data statistics built-in printer, direct printout measurement dual optical channel (eyepiece and CCD camera channel), can be connected to computer control system
●The minimum reading of the XY test bench is 0.01mm
●The hardness value of the micro-Vickers and Knoop hardness scale is automatically calculated and displayed
●Automatic switching of indenter and objective lens (automatic turret)
●The test point is automatically positioned accurately
●Depending on the material, the hardness can be selected as a conversion ratio
●Adopt adjustable cold light source measurement system, etc
| Standard configuration | |||
| name | quantity | name | quantity |
| Weight shafts | 1 root | weight | 6 pcs |
| Cross test bench | 1 pc | Sheet clamping table | 1 pc |
| Flat clamping table | 1 pc | Filament clamping table | 1 pc |
| screwdriver | 2 handfuls | Horizontal adjustment screws | 4 pcs |
| Spirit level | 1 pc | 10X test eyepiece | 1 pc |
| Microscopic Vickers hardness block | 2 pieces | Spare Fuse (2A) | 2 pcs |
| Power cord | 1 root | Product Certificate | 1 serving |
| Instruction manual for the product | 1 serving |
